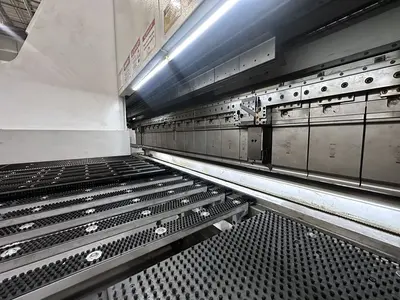

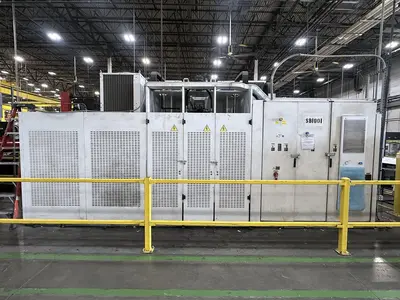

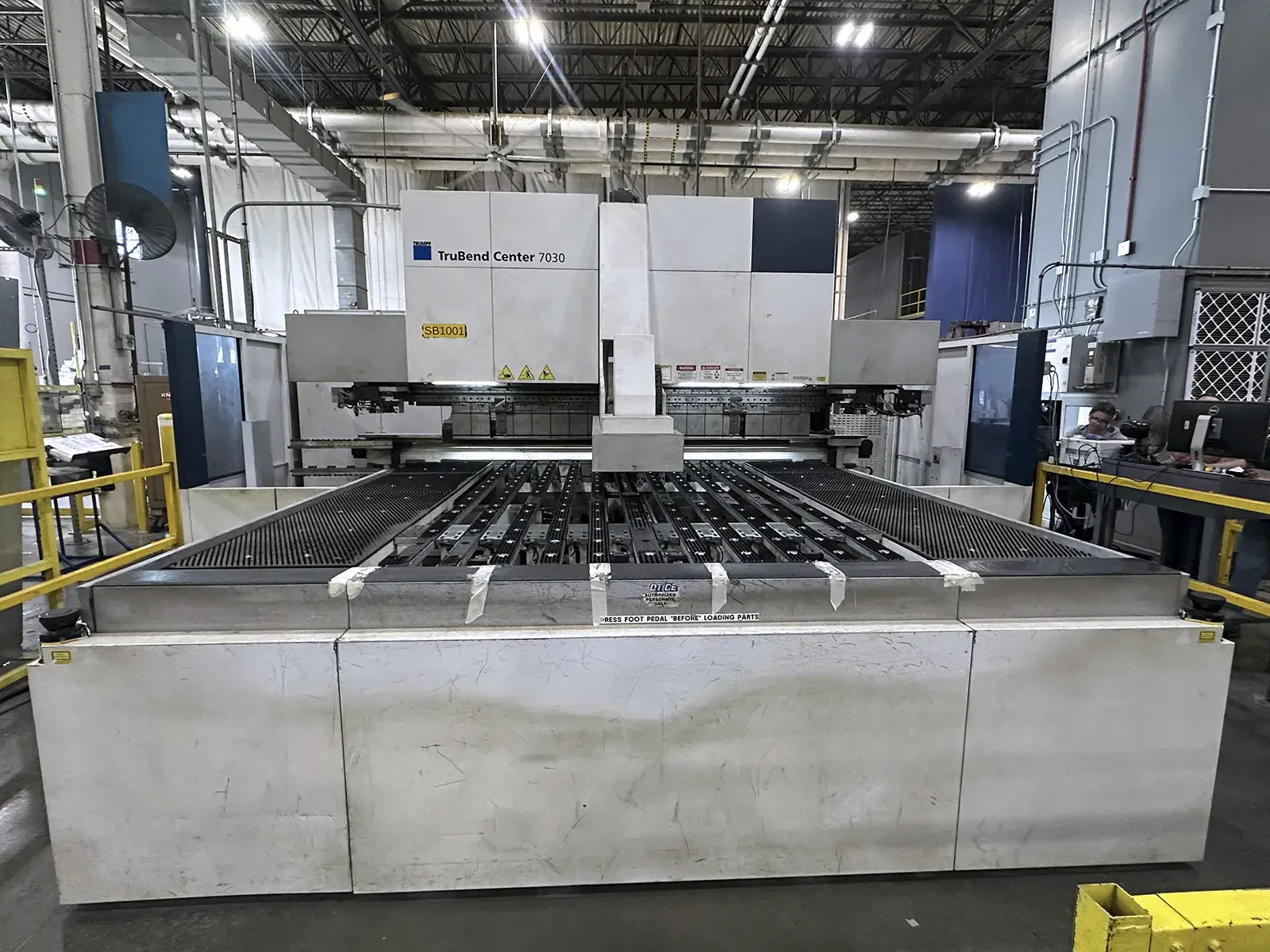

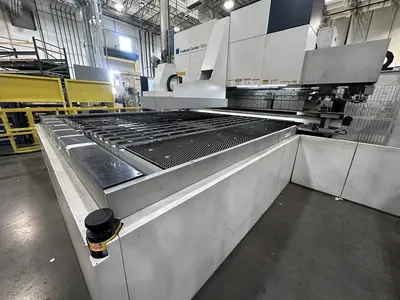

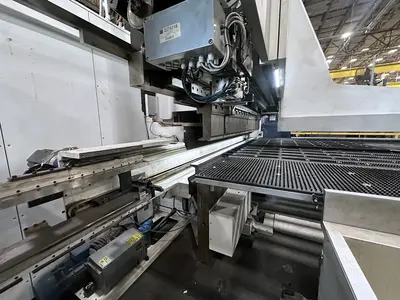

USED 2018 TRUMPF TRUBEND 7030

ENW Tooling Set| Automatically Controlled Bending
The Trumpf TruBend 7030 Panel Bender (2018) is an advanced automated sheet metal bending system designed for high-speed, high-precision production. Featuring a rotary part manipulator and automatic tool changer, it efficiently produces complex, multi-sided components for electrical enclosures, HVAC systems, architectural cladding, appliances, and retail fixtures. Ideal for high-volume manufacturing, it delivers consistent accuracy, reduced setup times, and superior forming quality.

Bending Length: 122.95"
Weight: 70,000 lbs (31,600 kgs)
Control: Trumpf CNC Control
Max Mild Steel: 0.118" (3 mm)
Stainless Steel: 0.087" (2.2 mm)
Aluminum: 0.157" (4 mm)
Max Bending Length: 122.95" (3123 mm)
Min Bending Length: 7.874" (200 mm)
Min bending Depth (standard tool): 5.7" (145 mm)
Min Bending Depth (ENW): 1.575" (40 mm)
Max Box Height: 8.661" (220 mm)
Max Component Size: 122.84" x 59" (3120 x 1500 mm)
Max Component Diagonal: 136.22" (3460 mm)
Min Sheet Thickness: 0.02" (0.5 mm)

ENW Tooling Set
ABC Laser - automatically controlled bending
2-Axis manipulator with Vacuum Modules
Built-in crowning system
Loading grippers guide blanks to rotary manipulator
Automatic rotary part manipulator
Optical angle assistance using integrated camera
ToolMaster Bend features auto retooling
22" Touchscreen control
Teleservice via internet
Laterally pivoting safety doors
Light Barriers
Emergency shutdown switch
Set of 3-Surface Suction Modules
Function for ENW - Extra Blank Holders
