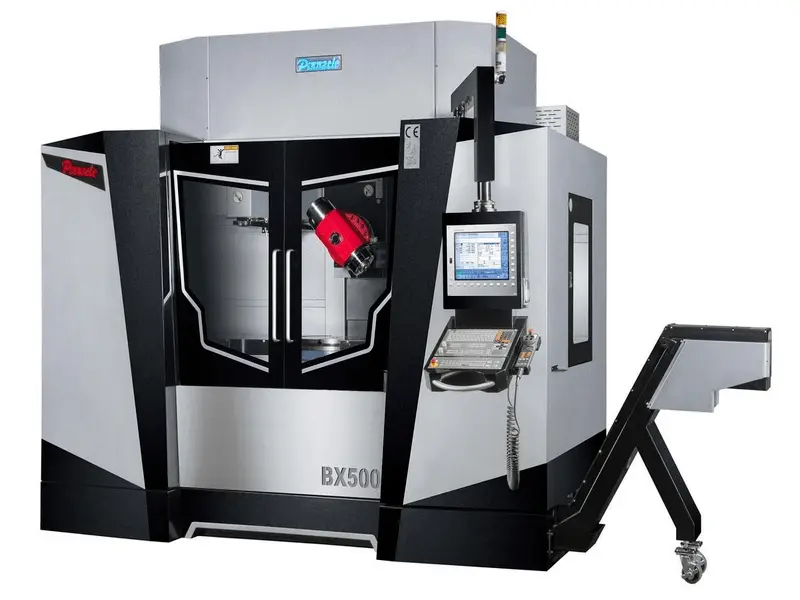

NEW 2024 PINNACLE BX500T
Overview
High-Tech Expertise in 5-axis Machining and Turning All in one machine
Pinnacle BX-500T Vertical Machining & turning Center with Built in Rotary Table with 1,200 RPM , and 5-Axis Machining, Simultaneous 5 Axis. Heidenhain controls.
Delivery 6 month after Down payment
Specs
Table Size: 57" x 24"
Rotary table diameter 19.6"
Travel Range (X) & (Y): 51" X 24"
Travel Range (Z): 32"
Max. Table Load: 1,874 lbs.
Spindle Nose to Table Surface: 3.89" - 35.8"
T Slot (width x number x distance: .7" X 4.92"X .19"
Ball Screw diameter "X", "Y" & "Z" = 40 MM
Built-In Spindle:
Spindle Taper: DIN40 (HSKA63)
Bearing Inner Diameter: 2.75"
Draw Bar Force Ft/lbs: 5,786 - 723.3
Main motor (30 min.): 20/24 Hp.
Motor Type: INDRAMAT IMB 160F~4B
Equipped With
HEIDENHAIN TNC640 SMART+ 15”COLORFUL TFT, + HR510 ELECTRONIC HANDWHEEL
DCM SOFTWARE + KINEMATICS SOFTWARE + TCPM SOFTWARE
ROLLER LINEAR GUIDEWAYS ON 3 AXES
CHIP PROTECT COVER FOR 3 AXES
WORKING LAMP, X/Y/Z OIL THROUGH BALLSCREW
15,000 RPM Built in Spindle motor
1,200 RPM 19.6" Rotary table as well as Full "C" axis and turning function and Milling
Oil cooled ball screws
TOUCH PROBE Renishaw OMP60 (work piece measure system) + RECEIVER + CALIBRATION BALL + Tool setter OTS (wireless) $ 9,950.00
HSK63A instead of DIN40 Standard
HEIDENHAIN TOOL MEASURMENT TT160 $ 2,950.00
COOLANT THROUGH SPINDLE + 20 BAR PUMP & TANK 71.6Nm $19,950.00
TWO SCREW TYPE CHIP CONVEYOR AT LEFT & RIGHT $ 2,250.00
HEIDENHAIN LINEAR SCALES FOR X/Y/Z AXIS for BX500A, BX500, BX500DD $ 9,950.00
OIL SKIMMER + Automatic power off no/charge
Total of optional accessories = $ 45,050.00
Base machine price BX500T $ 481,450.00
Total list price Package $ 526,500.00
Less Base machine discount $ 140,000.00
Sub Total = $ 386,500.00
less optional Accessory Package discount - $ 22,525.00
TOTAL PACKAGE PRICE Delivered, Set up and 20 New Tool holders your choice $ 363,975.00
Two year warranty on control and drives 1 Year machine
