USED FAMCO 3.5R

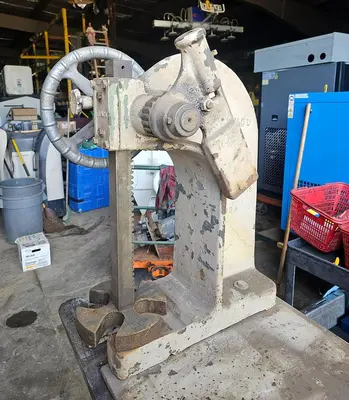

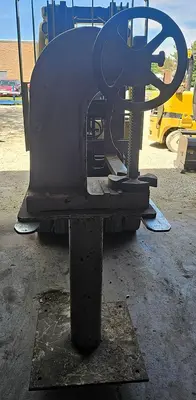

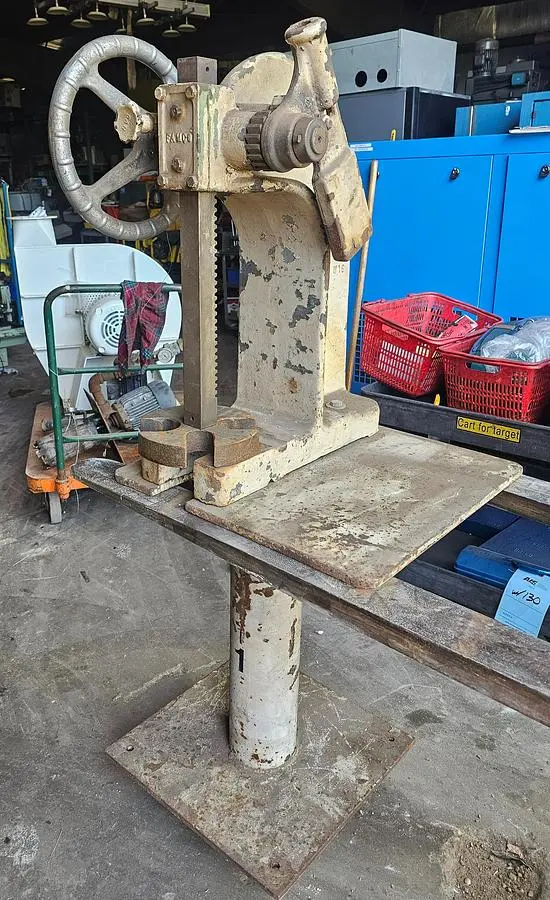

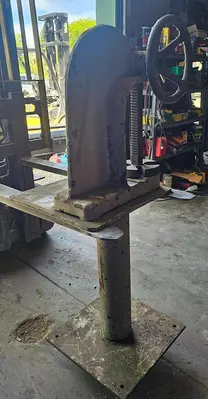

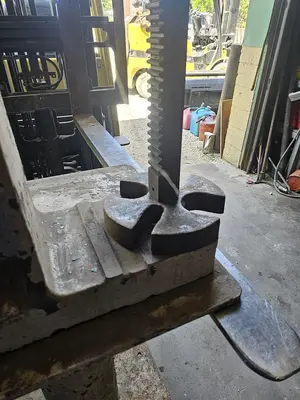

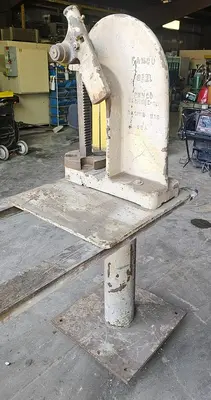

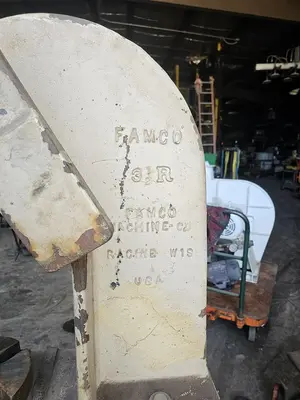

FAMCO NO. 3-1/2R 5-TON RATCHET-TYPE ARBOR PRESS WITH FACTORY FLOOR STANDITEM SUMMARYManufacturer: Famco Machine Division (Made in USA)Model Number: 3-1/2R (Ratchet Type)Press Capacity: 5 Tons (10,000 lbs)Equipment Type: Mechanical Arbor PressMounting Configuration: Original Factory Cast-Iron Heavy-Duty Floor Stand IncludedEstimated Combined Weight: ~325 lbs (Press: ~200 lbs / Stand: ~125 lbs)TECHNICAL SPECIFICATIONSLeverage Ratio: 70:1Ram Size: 1.25" x 1.25" (Square Ram)Maximum Work Diameter: 14"Throat Capacity (Max Height): 11.5"Largest Arbor Capacity: 2"Stand Design: Open-slot base configuration to allow long broaches, shafts, or pins to clear straight through the bottom of the anvil plate.EQUIPMENT DESCRIPTION & FEATURESAvailable for immediate acquisition is an industrial-grade Famco No. 3-1/2R 5-Ton Ratchet Arbor Press, complete with its original matching factory cast-iron floor stand. Famco machinery is globally recognized as the gold standard for machine shops, fabrication cells, and assembly lines due to its indestructible, heavy-duty American cast-iron frame construction.The "R" Ratchet configuration utilizes a single-gear ratcheting clutch mechanism paired with a counter-weighted lever arm. This feature allows the operator to maintain optimal ergonomic leverage and deliver the full 5 tons of downward force through short, precise, incremental strokes—ideal for pressing bearings, broaching keyways, and installing heavy bushings without swinging a continuous 360-degree handle.The inclusion of the heavy-duty, factory-matched floor stand eliminates bench flex, anchors securely to shop floors, and provides the critical floor-drop clearance required for long shaft assemblies.

* Press Capacity: 5 Tons (10,000 lbs)
* Equipment Type: Mechanical Arbor Press
* Estimated Combined Weight: ~325 lbs (Press
* Maximum Work Diameter: 14"
* Largest Arbor Capacity: 2"
* Leverage Ratio: 70
