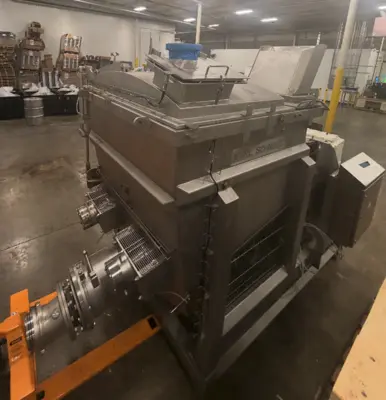

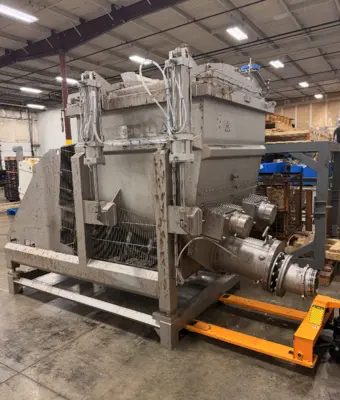

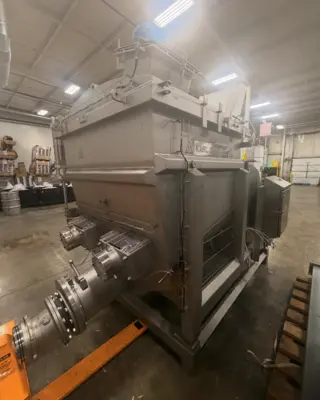

USED 2019 KARL SCHNELL Mixer 1000

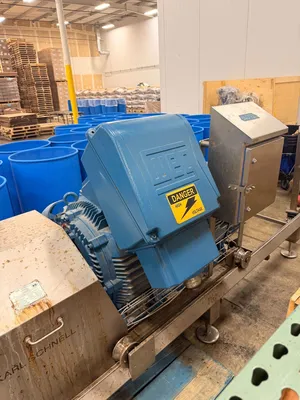

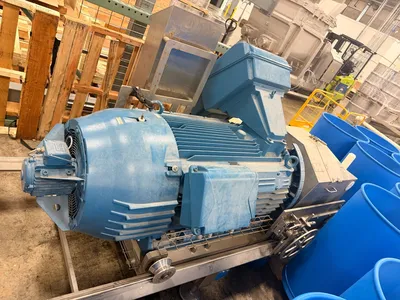

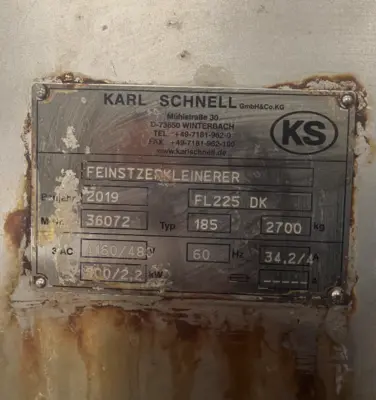

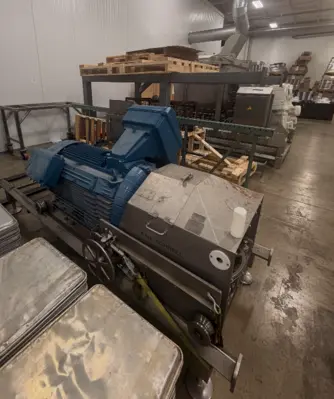

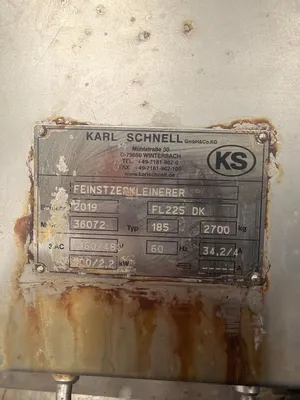

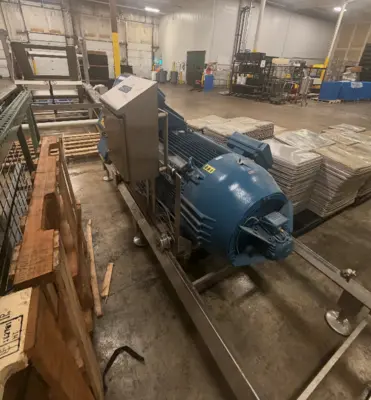

KARL SCHNELL Mixer 1000 with integrated FL225 DK Emulsifier, Stainless steel construction, Year: 2019, capacity for fine emulsion: up to 12,000 kg per hour depending on viscocity and cutting head, Single discharge screw, Screw Diameter: 360 mm, Thickness of flights: 4 mm, Pitch: 300 mm, 15-8-12 Roto-Plate cutting system, Outlet pipe diameter: 100 mm, 268 horsepower emulsification motor, maximum throughput 15,000 kg/hr.

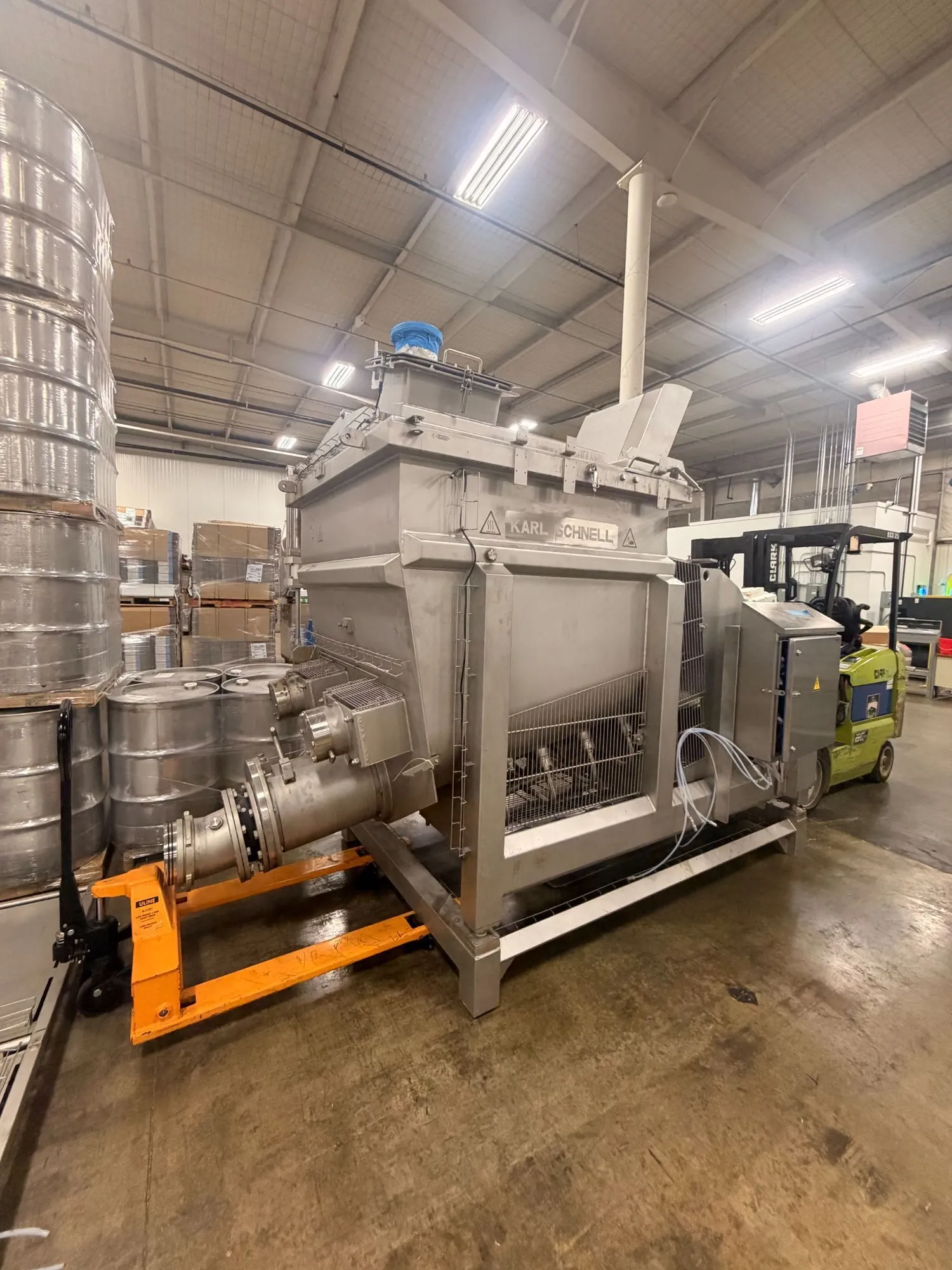

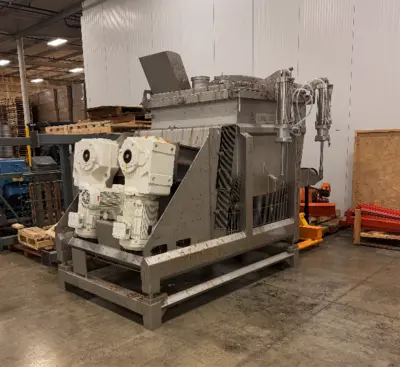

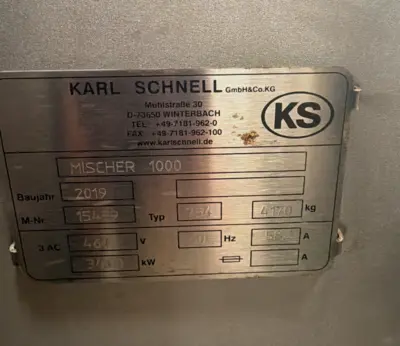

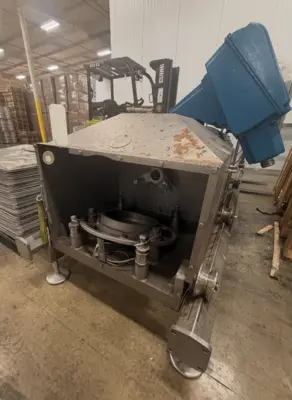

Karl Schnell Mixer 1000: steam injection, 1,000L capacity twin-shaft mixer, processes material at -18°C to -10°C. Features direct steam injection via 16-nozzle R2" inlet with condensate outflow, water connection, and compressed-air-operated lid. Integrated load cells for in-bin weighing. Discharge via bottom screw conveyor to flanged emulsifier connection. Manhole lid with pneumatic cylinder and safety interlocks. 460V/3Ph/60Hz.
