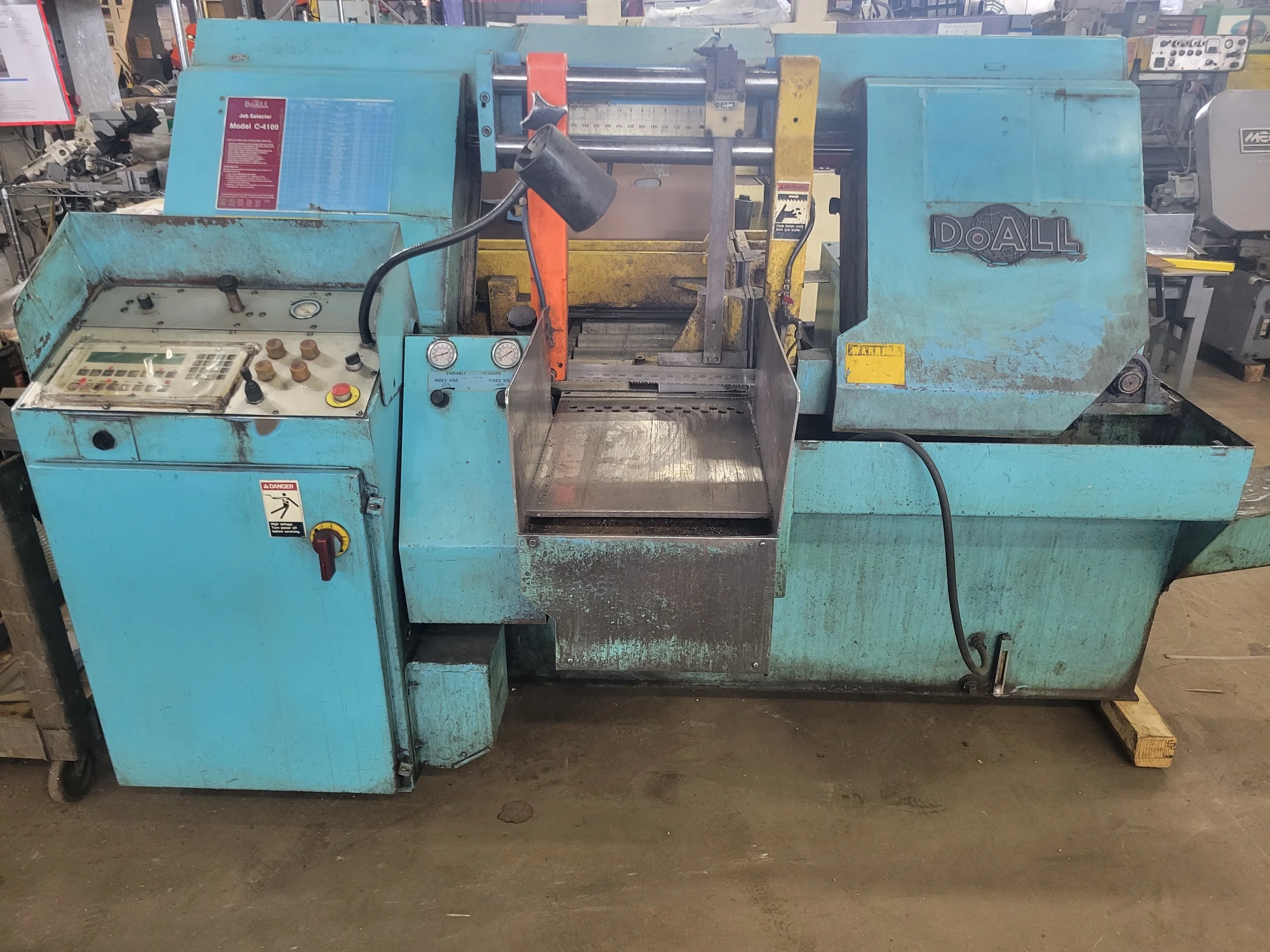

Doall Heavy Duty Workhorse model C-4100NC horizontal Fully automatic, programmable Bandsaw.
Extra Heavy design, 1 1/2" Blade, 7.5 H.P. Variable speed blade drive with programmable speeds,
Myers Technology Company Proprietary
| Rect-Cap (H) | 14" | 355.6 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 14" | 355.6 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 183" | 4,648.2 mm |
| Control | CNC (Doall NC) | CNC (Doall NC) |
| Dimensions | 90" x 96" x 65" high | 90" x 96" x 65" high |
| Weight | 6,800 lbs. | 6,800 lbs. |
Specification : Round Work Capacity 16" - Square Work Capacity 14" x 16"
Max Blade Size 1.5" x 186"
Blade Wheel Diameter 21"
Blade Speeds Variable 40 - 360 FPM
Stock Feed Shuttle Travel 24" Single Stroke / 999" Multiple IndexNumber of Shuttle Indexes
Drive Motor 10 HP
Coolant Capacity 20 Gallons
24" Stroking Stock Shuttle Vise Front Hydraulic Vise
Hydraulic Band Tensioning with Controls
12" Long Parts Drop Table
Chip Conveyor
Coolant System
Work Light
Electrics:460 Volt, 3 Phase
Approximate Machine Wt. 6800LBS
Programmable NC Control, Hydraulic Blade tension, Vises, variable vise pressure, rapid head approach, AC variable speed blade drive that is programmable, Chip conveyor and all available manuals, New Blade
