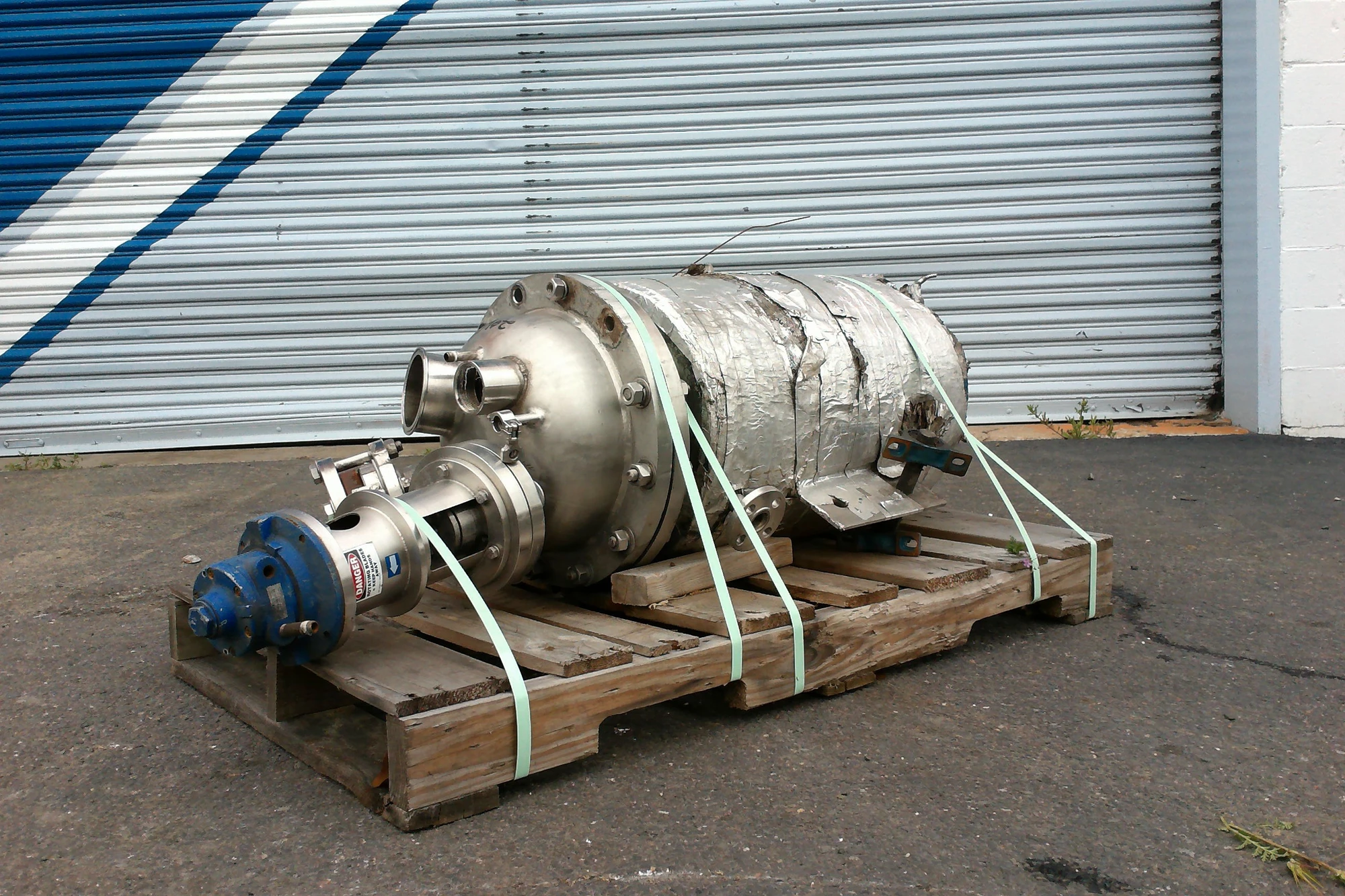

Used Approximately 10 Gallon Stainless Steel Jacketed Pressure Tank
Capacity: 10 gallon
Manufacturer: Tolan
Internal pressure: 20/FV @ 200°F
Jacket pressure: 100 psi @ 300°F
Dimensions: 12" diameter X 24" straight side
Bolted top, dish bottom
Material of construction: stainless steel
Lug mounted
| Capacity | 10 gal | 37.9 L |
| Type of stainless | stainless steel | stainless steel |
| Internal Pressure | 20 PSI | 1.4 bar |
| Internal Temperature | 200°F | 93.3°C |
| Jacket Pressure | 100 PSI | 6.9 bar |
| Diameter | 12" | 304.8 mm |
| Straight Side | 24" | 609.6 mm |
| Type Of Heads | Bolted top, dished bottom | Bolted top, dished bottom |
| Legs/Lugs | Lug mounted | Lug mounted |
| Dimensions | 12" diameter X 24" straight side | 12" diameter X 24" straight side |
