Used

USED FLOTTWEG Z4D-3/409

Poland
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Decanter Centrifuges

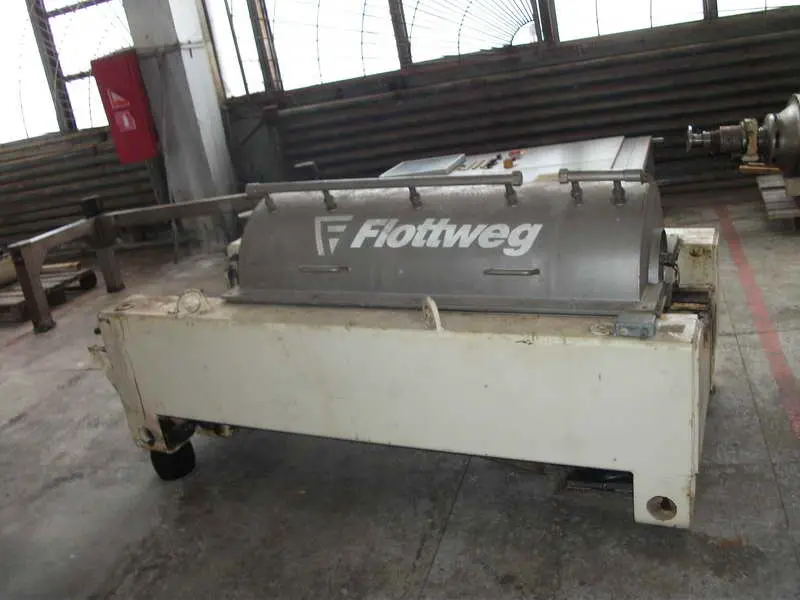

Used Flottweg model Z4D-3/409 Sedicanter horizontal decanter centrifuge. Bowl made of duplex stainless steel 1.4463, has inside diameter 470 mm, maximum rotation speed 4800 rpm, maximum sediment density 1.3 kg/dm3, maximum working temperature 50°C. Scroll and inlet protected by tungsten carbide. Unit driven by 30 kW motor. Includes hydraulic device for screw drive with power consumption 7.5 kW and differential 2-25 rpm, control panel and technical documentation.

Specs
Bowl Diameter (Length)
18.504"
470 mm
Material Of Construction
Duplex Stainless Steel 1.4463
Duplex Stainless Steel 1.4463
Motor Power
30 hp
22.4 kW
Max Bowl Speed
4,800 RPM
4,800 RPM
Conveyor Material
Tungsten Carbide
Tungsten Carbide
