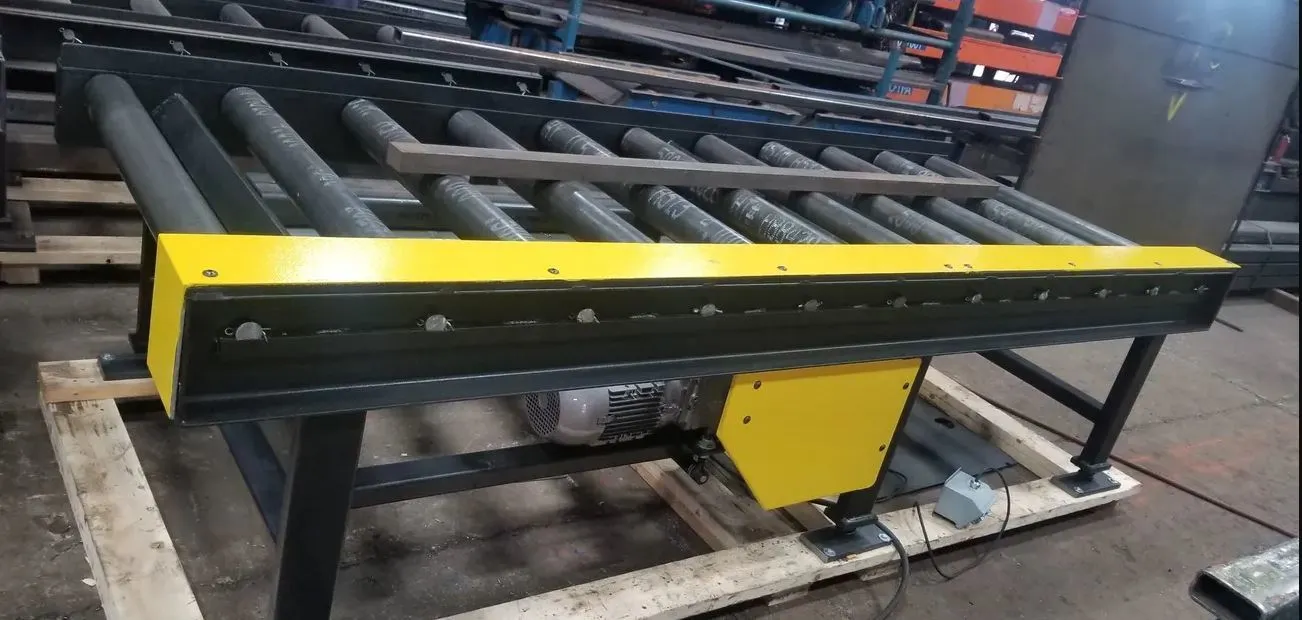

USED 2022 MARVEL Conveyor

5’ Long Power Table
12” OC Roller
32” Usable Face
36” Between Frame
28” Bed Height

Main Frame:
C6 x 8.2
Structural Tube Wall Legs 2 x 4 x ¼”
Frame Carrying Capacity 10,000/5’
Large Jack Bolt Feet
Roller:
3.5” Structural Tube OD
.300 Wall
Roller Shaft 1-1/16” Hex
Standard Bearing Weight Rating 1300 lb. each
Roller Weight Capacity 2500 lb. each
Rollers Flush w/ Angle
Gearing:
60:1 Diequa Geared Motors 2 HP
Mitsubishi D700 Variable Frequency Drive:
1.56 Watt Drive 2 HP
Clutch:
1.500 Bore
Electrical Control:
Mitsubishi D700 Sensor less
Variable Frequency (Variable Speed)
480V 3􀃘 Power; Control Cabinet
Pedestal Mount
