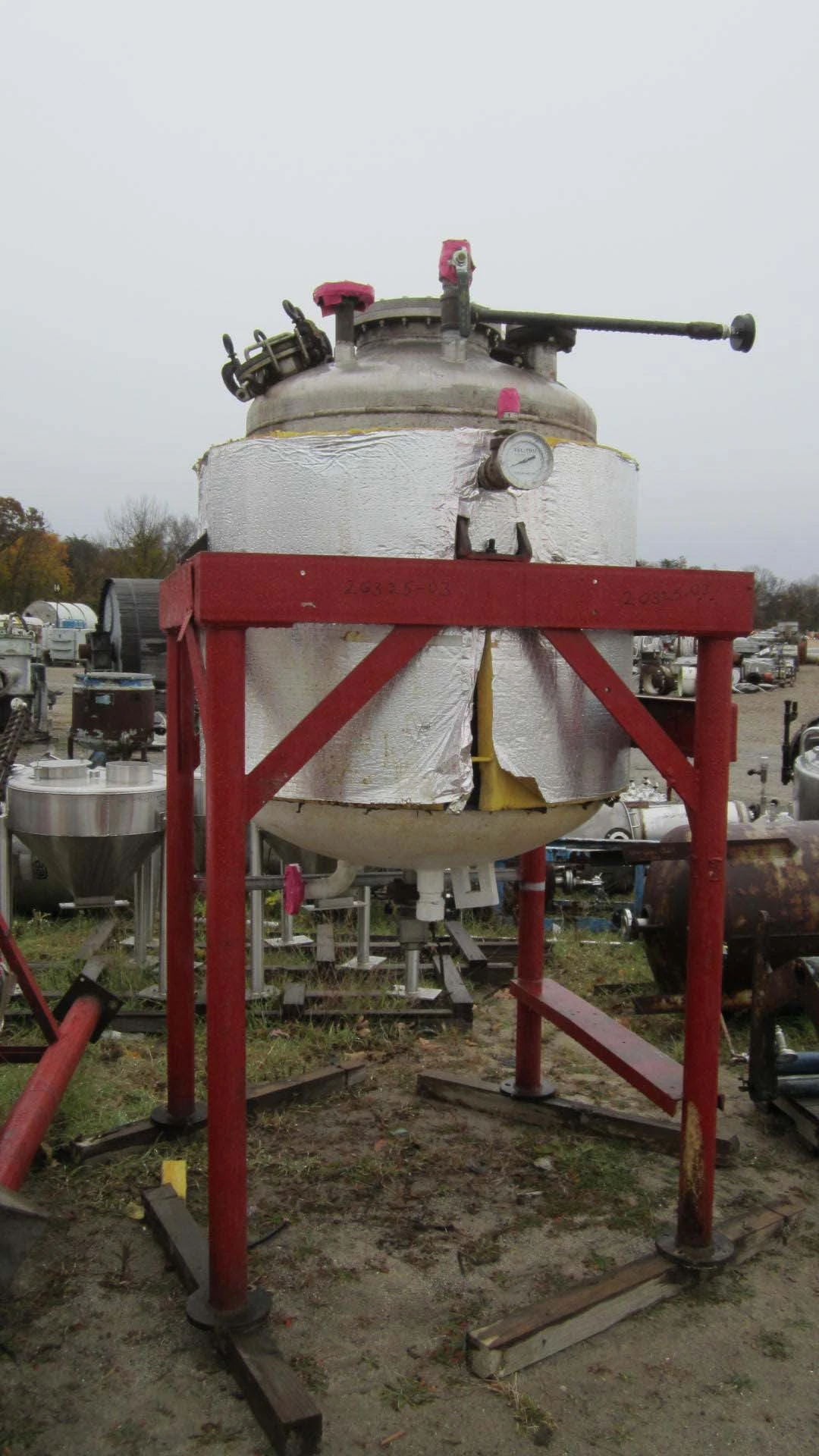

Used Approximately 250 Gallon 316 Stainless Steel Jacketed Pressure Vessel
Manufacturer: IC&M
Capacity: 250 gallons
Serial: 151
Internal pressure: 25/FV @ 500°F
Jacket pressure: 50 psi @ 500°F
Dimensions: 3'6" dia. x 3'2" straight side
Material of construction: 316 stainless steel
Lug mounted
| Capacity | 250 gal | 946.4 L |
| Type of stainless | 316 | 316 |
| Internal Pressure | 25 PSI | 1.7 bar |
| Internal Temperature | 500°F | 260°C |
| Jacket Pressure | 50 PSI | 3.4 bar |
| Diameter | 42" | 1,066.8 mm |
| Straight Side | 38" | 965.2 mm |
| Legs/Lugs | Lug mounted | Lug mounted |
