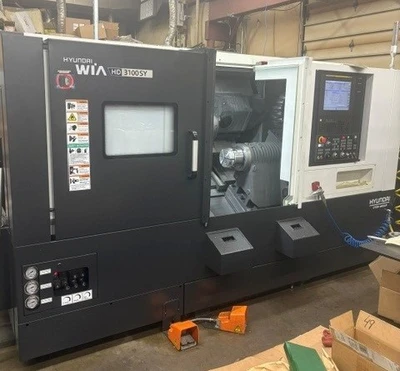

USED HYUNDAI WIA HD3100SY

CAPACITY:
Swing over bed Ø31.5" (Ø800mm)
Swing over carriage Ø26.4" (Ø670mm)
Max. turning diameter Ø16.5" (Ø420mm)
Max. turning length 29.9" (760mm)

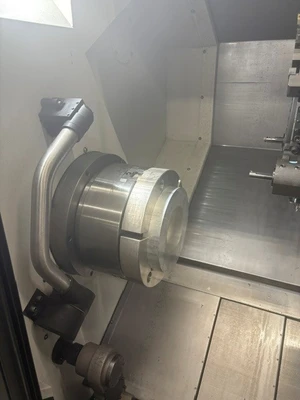

SPINDLE (Main / Sub):
Chuck size 12" / 6"
Bar Capacity Ø4" / Ø2.0" (Ø102 / 51mm)
Spindle bore Ø4.5" / Ø2.4" (Ø115 / Ø62mm)
Spindle speed 2,800 / 4,500 rpm
Spindle nose A2-11 / A2-5
A.C. Spindle Motor (S3 25%) 34.9 / 10.1 HP (26 / 7.5 kW)
Max. spindle torque (S3 25%) 775.2 / 62.7 lbf.ft (1,051 / 85 N.m)

TRAVEL:
X / Y axis travel 10.4" / 4.7" (265 / 120mm)
Z / ZB axis travel 32.7" / 32.7" (830 / 830mm)
X / Y axis rapid traverse rate 945 / 394 IPM (24 / 10m/min)
Z / ZB axis rapid traverse rate 1,181 IPM / 1,181 IPM (30 / 30m/min)
X / Y axis ball screw diameter Ø1.26" / Ø1.26" (Ø32 / Ø32mm)
Z / ZB axis ball screw diameter Ø1.57" / Ø1.57" (Ø40 / Ø40mm)
X / Y axis guideway span 12.6" / 12.6" (320 / 320mm)
Z / ZB axis guideway span 17.3" / 15.4" (440 / 390mm)

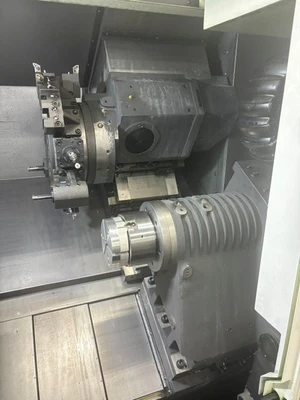

TURRET (BMT65P):
Number of tools 12
Turning tool shank size ?3/4" (?20mm)
Boring bar diameter Ø2" (Ø50.8mm)
Turret index time (1 step) 0.2 sec
Turret clamping force 13,575 lbf (6,158 kgf)
Live Tool Motor Power / Torque (30min) 7.5 HP (5.5 kW) / 51.6 lbf.ft (70 N.m)
Milling Tool Speed 5,000 RPM
COOLANT and HYDRAULIC SYSTEM:
Coolant tank capacity 52.8 gal (200 liter)
Hydraulic tank capacity and required oil 7.9 gal (30 liter) / VG32
Lubrication tank capacity and required oil 0.5 gal (1.8 liter) / VG68

GENERAL:
Machine Height 77.2" (1,960 mm)
Floor Space (L) with side conveyor & coolant tank 178.8" (4,542 mm)
Floor Space (W) 75.2" (1,910 mm)
Machine weight 13,889 lbs (6,300 kg)
Power required 33 kVA / 220V
Voltage Required 205 - 235 Volts / 3 Phase
