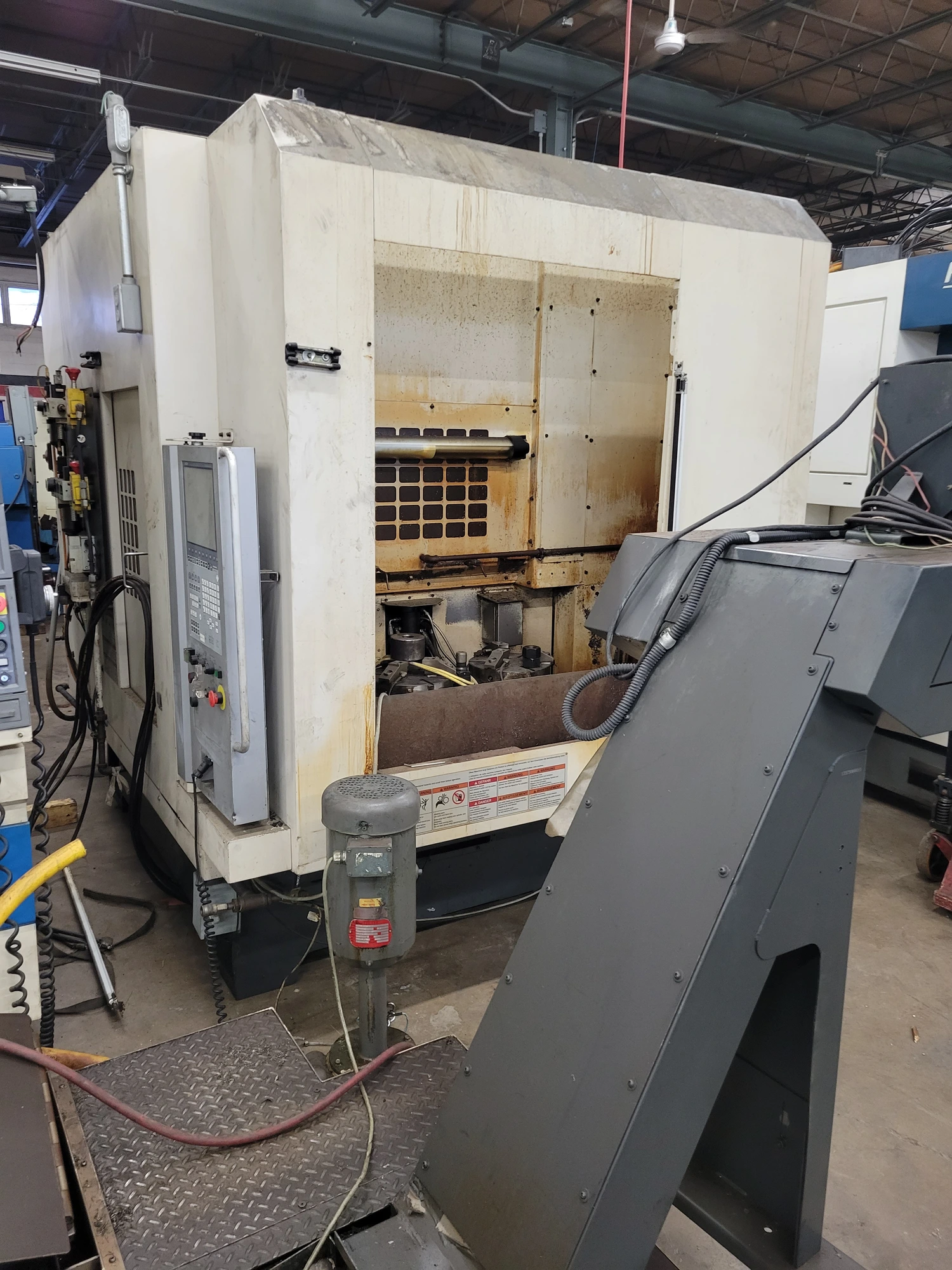

Brother model TC-32BN=QT Vertical CNC Drilling and Tapping center with Brother B00 control, 26 ATC, 2 Pallet changer, 7.3 KW spindle motor, Built 2008
| X | 21.7" | 551.18 mm |
| Y | 15.7" | 398.78 mm |
| Z | 16.3" | 414.02 mm |
| Power | 12 hp | 8.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 26 | 26 |
| Taper | 30 | 30 |
| Table-W | 23.5" | 596.9 mm |
| Table-L | 16.7" | 424.18 mm |
| # Axis | 3 | 3 |
| Control | CNC (Brother B00) | CNC (Brother B00) |
| Dimensions | 124" x 75" x 103" High | 124" x 75" x 103" High |
| Weight | 10,120 lbs. | 10,120 lbs. |
TRAVELS:
-X AXIS: 21.7"
-Y AXIS: 15.7"
-Z AXIS: 16.3"
PALLET SIZE: 23.6" X 16.7"
SPINDLE: 12,000 RPM
RIGID TAP: 8,000 RPM
TOOL-TO-TOOL TIME: 0.9 SECONDS
PALLET CHANGE TIME: 3.5 SECONDS
CUTTING FEED RATE: 787 IPM
RAPID TRAVERSE RATE: 2756 IPM
TOOL CAPACITY: 26 TOOL MAGAZINE
Equipped With
BROTHER B00 CNC CONTROL
2 PALLET (180 DEGREE)
4 10" 3-jaw hydraulic chucks and hydraulic tank
Chip conveyor
All available documentation
