USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Description
This listing is for a USED Fanuc Arc Mate 120iD complete robotic system with R-30iB Plus controller and Fronius TPS 400i welding package. The package combines multi-axis robotic motion with arc welding functionality, supporting programmed weld routines, coordinated motion control, and integrated torch maintenance through a reaming unit. Teach pendant, welding unit, and system integration components are included.
Specifications
| Dimensions | 60X48X75 | 60X48X75 |
|---|---|---|
| Weight | 1268LBS | 1268LBS |
Robot Manufacturer: Fanuc

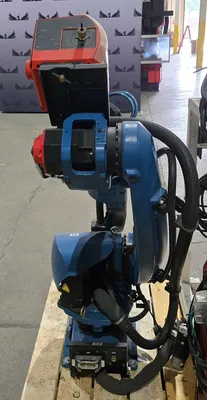

Robot Model: Arc Mate 120iD
Type: A05B-1228-B201
Condition: USED
Hours: 23500
YOM: 2020
Robot Weight: 250 kg

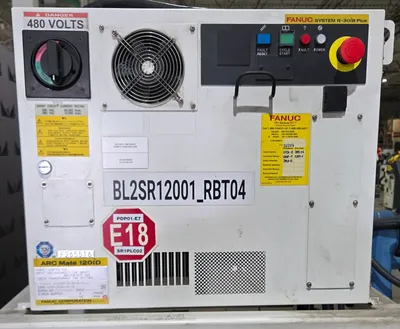

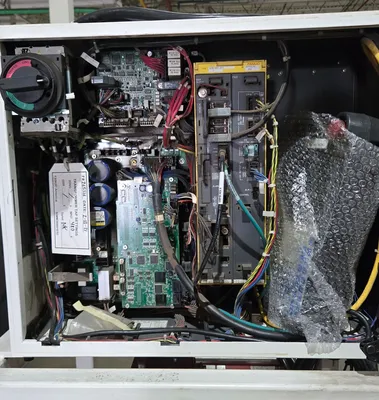

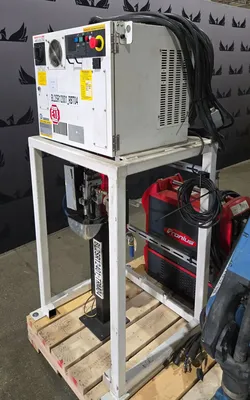

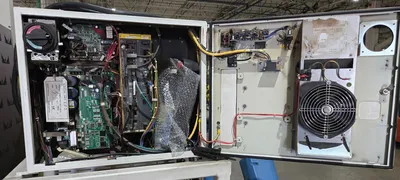

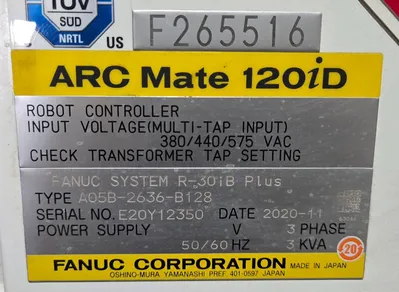

Controller Manufacturer: Fanuc
Controller Model: R-30iB Plus
Controller Type Number: A05B-2636-B128
Controller Serial Number: R20Y12350
Controller Date: 2020-11
Input Voltage: 380 / 440 / 575 VAC
Frequency: 50 / 60 Hz
Power Rating: 3 kVA
Phase: 3 Phase

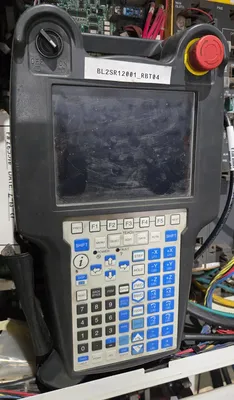

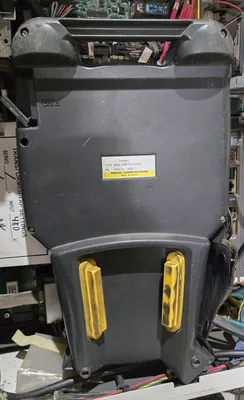

Teach Pendant:
Model: iPendant
Type: A05B-2256-C101#EAW
Serial Number: P006782
Date: 2020-11

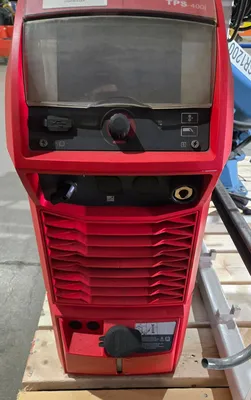

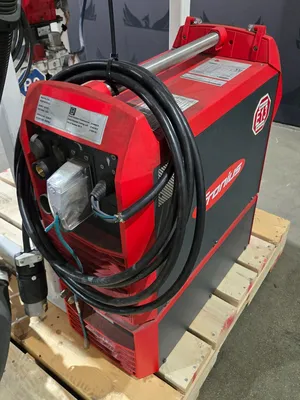

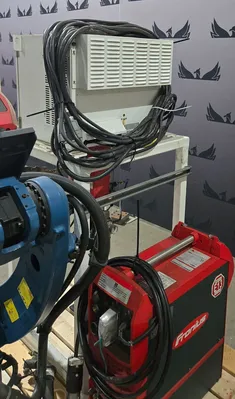

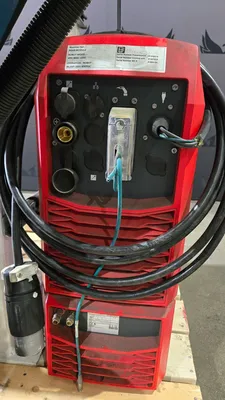

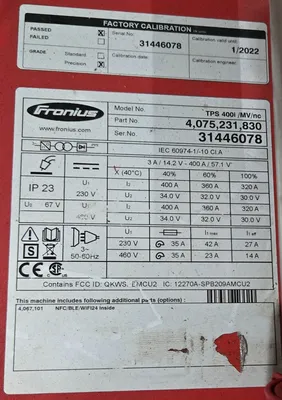

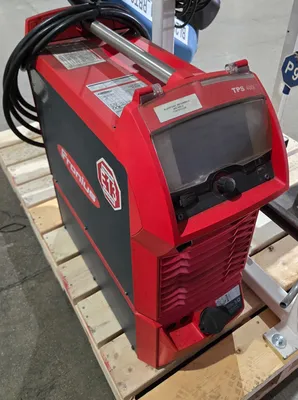

Welding Power Source Manufacturer: Fronius
Model: TPS 400i / MV / nc
Part Number: 4,075,231,830
Serial Number: 31446078
Welding Output:
Voltage Range: 14.2 V – 57.1 V
Output Current: Up to 400 A
Duty Cycle:
40%: 400 A
60%: 360 A
100%: 320 A
Input Requirements (Welder):
230 V: 35 A
460 V: 35 A
Protection Rating: IP23

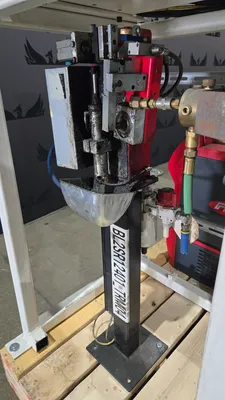

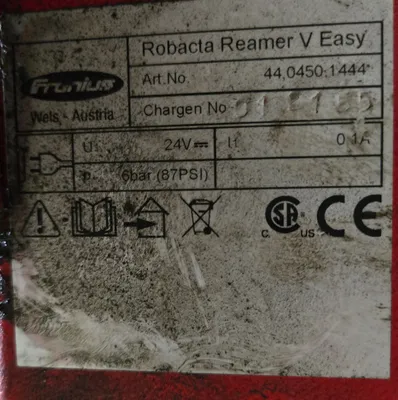

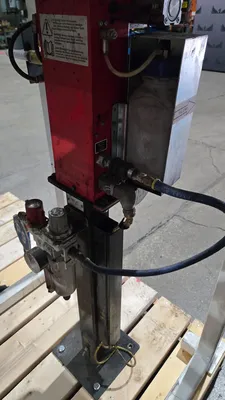

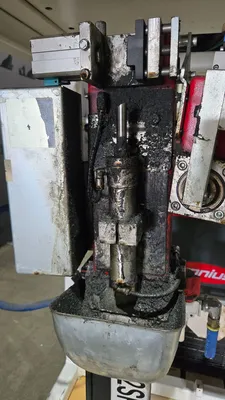

Torch Maintenance Unit:
Model: Robacta Reamer V Easy
Supply Voltage: 24 V
Air Supply: 6 bar (87 PSI)

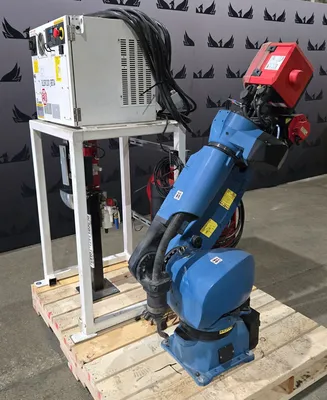

System Configuration:
Robot + Controller + Teach Pendant + Welding Power Supply + Reamer Unit
