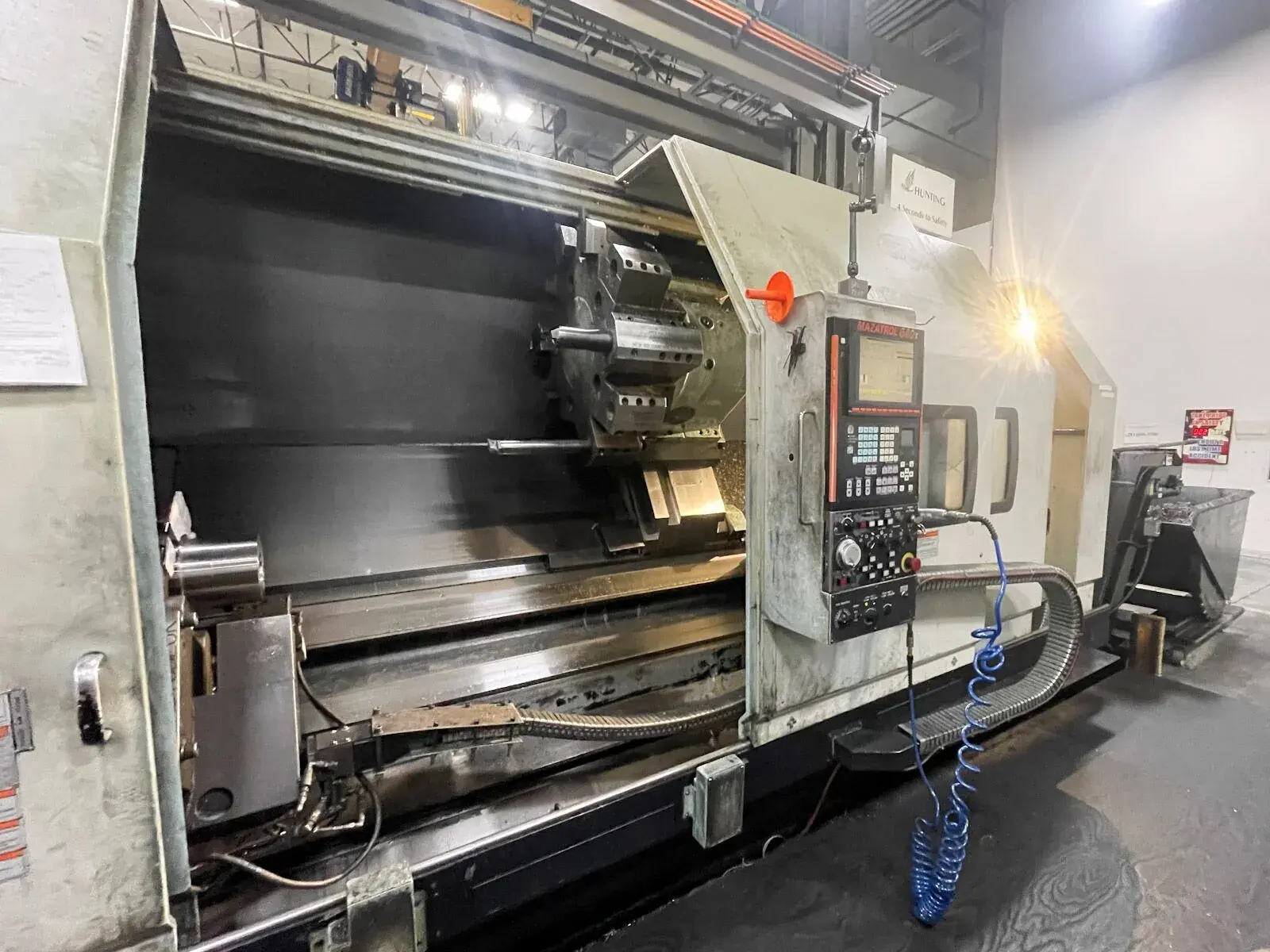

Used CNC Lathe. Features include a 32" swing, 28" max cutting diameter, 120" distance between centers, and 750 RPM spindle speed. Equipped with Mazatrol Fusion 640T control, 32" 4-jaw chuck, chip conveyor, and steady rest.
| Swing | 31.7" | 805.18 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 32" | 812.8 mm |
| Bar Capacity | 10.2" | 259.08 mm |
| Max RPM | 750 RPM | 750 RPM |
| Turning Dia | 28" | 711.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Fusion 640T) | CNC (Mazatrol Fusion 640T) |
Main Spindle Chuck
32"
Maximum Swing
31.7"
Maximum Cutting Diameter
26"
Maximum Machining Length
120"
Main Spindle HP
40/50 HP
Main Spindle RPM
750 RPM
Main Spindle Nose
A2-15
Main Spindle Bore
10.2"
Number of Tool Stations
15
Maximum Tool Diameter
2.5"
X Axis Travel
22.6"
Z Axis Travel
120"
Rapid Traverse Rate X
475 IPM
Rapid Traverse Rate Z
551 IPM
Tailstock Body Travel
120"
Tailstock Center
MT #5
Floor Space
142" x 338" x 107"
Machine Weight
33,000 lbs.
32” Front and Rear Bison 4-Jaw Manual Chucks
Background Patyh Chuck
EIA/ISO
Thread Start Point Compensation
Polar Coordinates Input
EIA Helical Interpolation
EIA Coordinate Rotation
EIA Helical Tap
Re-Thread
LNS Steady Rest Model SLU-B-5
Tailstock
Chip Conveyor
