AMADA HFT 80-25S Press Brake, 2006 model, in used condition. Reliable for precision bending tasks. An ideal addition for your shop floor, delivering consistent performance from a trusted manufacturer.
| Tonnage | 88 T | 79.832 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 100" | 2.5 m |
| Between Housings | 83" | 2.1 m |
| Stroke | 7.87" | 199.9 mm |
| Dimensions | 120"x60"x96"H | 120"x60"x96"H |
| Weight | 12,680lbs | 12,680lbs |

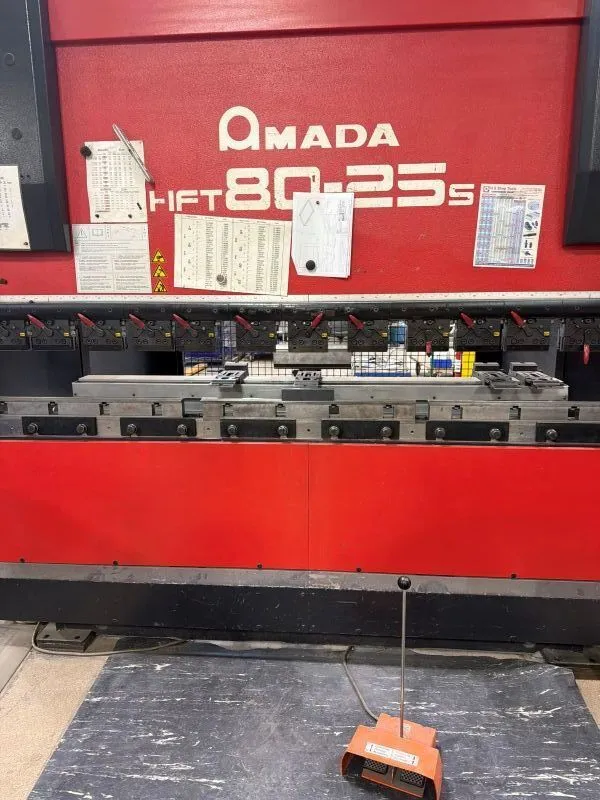

AMADA DOWN ACTING MULTI-AXIS HYDRAULIC PRESS BRAKE
Model: HFT 80-25S
Tonnage: 88 ton
Overall bending length: 100”
Distance between housings: 83”
Max. stroke: 7.87”
Approach speeds: 240 ipm
Forming speed: 233 ipm
Return speed: 188 ipm
Open height: 18.5”
Throat depth: 16.5”
Dimensions: 120” x 60” x 96” high
Weight: 12,680 lbs.
Main motor: 20 HP
Wired 440v/3 ph/60cy
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
Amada Operator II, version V6-02A
Y1, Y2, X, R CNC controlled
2) sets of Back gauge fingers
Remote foot pedal
Ram clamps & lower die holder
Manuals included
