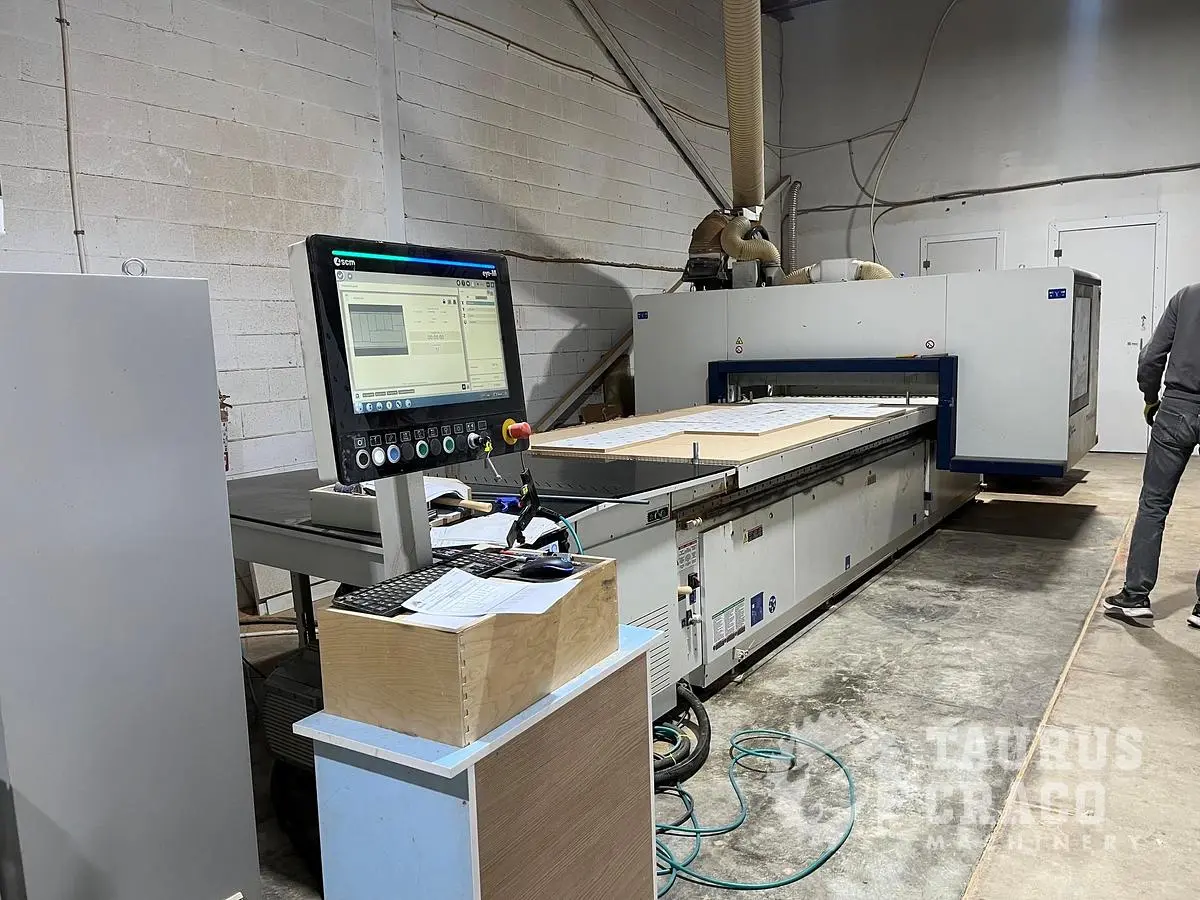

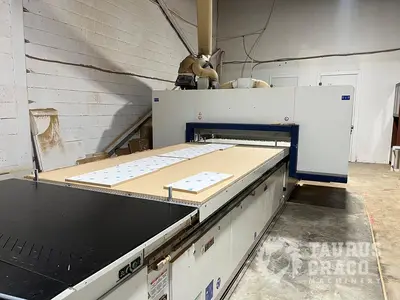

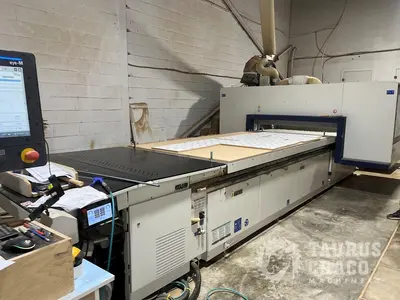

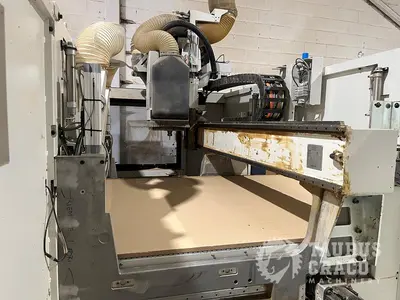

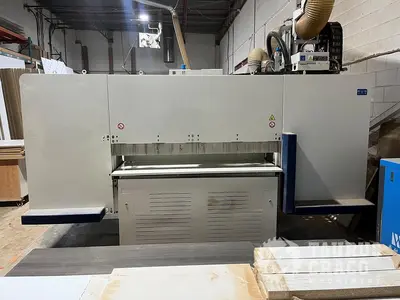

USED 2022 SCM MORBIDELLI X200 5X10 FLAT TABLE CNC ROUTER

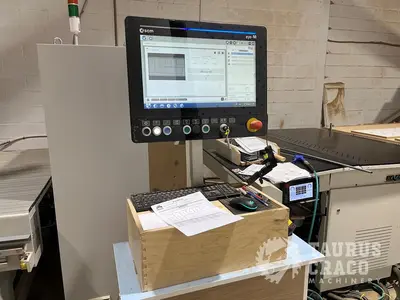

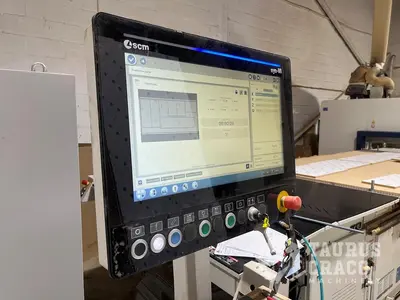

Manufacturer: SCM Group Model: Morbidelli X200 Year of Manufacture: 2022 Condition: Used – Excellent Condition Machine Type: CNC Router / Flat Table Nesting CNC / Machining Centre The SCM Morbidelli X200 is a high-performance CNC machining centre designed for precision routing, drilling, and nested-based panel processing in industrial woodworking environments. Built in Italy and engineered with SCM’s rigid cage-structured frame, this machine ensures long-term accuracy, stability, and vibration-free machining performance. Equipped with advanced brushless axis drives, high-speed electrospindle technology, and SCM’s Maestro CNC software suite, the X200 delivers fast cycle times, high repeatability, and intuitive programming for both custom and production workflows. The integrated vacuum table and multi-zone hold-down system allow for efficient machining of both full sheets and small components. This 2022 unit is fully equipped and represents an excellent opportunity to acquire a near-new CNC router with premium configuration at a significant savings. 5' x 10' flat table configuration (nesting capability) 14 kW (19 HP) HSK spindle with 24,000 RPM max speed RO.AX drilling technology – high rigidity, low maintenance 16 vertical spindle drilling head (up to 8,000 RPM) TRB14 14-position linear tool changer Maestro CNC CAD/CAM software suite Multi-zone vacuum table (8 zones) for efficient hold-down Brushless servo axis drives for high precision and acceleration Heavy-duty welded frame construction for stability and accuracy Integrated dust extraction system with centralized hooding Work Table Size: 5' x 10' (1531 configuration) Workpiece Processing: Multi-zone vacuum hold-down (8 zones) Suitable for nested sheet processing and individual part machining Drilling Head: 16 vertical spindles 32 mm spacing Max speed: up to 8,000 RPM Routing / Spindle: 14 kW (19 HP) electrospindle Speed range: 1,500 – 24,000 RPM Linear tool changer: 14 positions (TRB14) Max tool diameter: up to 300 mm Max tool weight: 8 kg Supports routing, drilling, grooving, and contour machining Full nesting capability with optimization software Voltage: 400 V Phase: 3 Phase + Neutral (3 + N) Frequency: 60 Hz Current: 70.2 Amps Short Circuit Rating (Icc): 5 kA Vacuum Pump: 250–300 m³/h system included Multi-area vacuum table with automatic/manual zone control Centralized dust extraction system with automatic valve control Optimized airflow and reduced noise due to selective extraction zones Maestro CNC CAD/CAM platform 3D programming environment for machining operations Tool database and automatic toolpath management Integrated nesting optimization (free-form + rectangular) Real-time diagnostics, reporting, and machine monitoring Remote service capability (TELESOLVE) Weight: approx. 3,660 kg (8,068 lbs) Heavy-duty base allows operation without anchoring to ground Verry good mechanical and cosmetic condition Fully operational and production-ready Clean shop environment The SCM Morbidelli X200 is a modern, production-ready CNC solution combining advanced automation, high-speed machining, and flexible programming. With its integrated nesting capabilities, multi-tool configuration, and robust construction, this machine is ideally suited for shops looking to scale production while maintaining high precision and efficiency.
