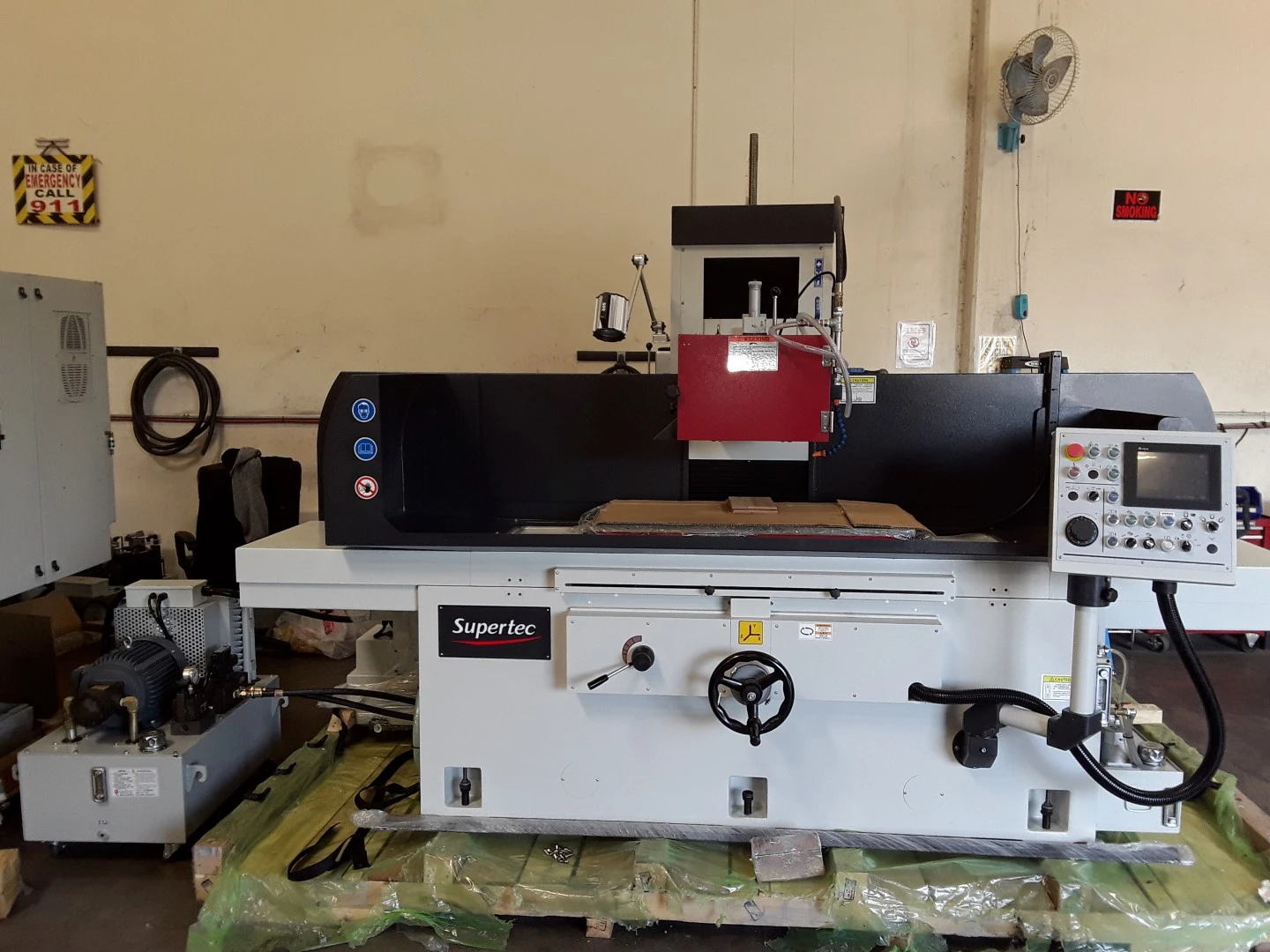

NEW 2026 SUPERTEC Planotec-2040NC
Overview
Cycle Interrupt Button on Control, Conversational Touch Screen Control, Harden Guide ways on Wheel head, Automatic Lube System, precision Cartridge Spindle, AC Servo Motor/Ball screw on Down feed, 0.000040" Down feed Increment, Hydraulic Sys. Separate
from Machine.
Specs
GENERAL CAPACITY
Table Size 20 x 47"
Max. Grinding Length 49"
Max. Grinding Width 20"
Table Spindle Center Distance 24"
Standard Magnetic Chuck Size 20" x 40"
LONGITUDINAL MOVEMENT
Manual Travel 46"
Hydraulic Traverse 44"
Table Speed 10-82 fpm
CROSS MOVEMENT
Manual travel 25"
Rapid Traverse 2-3 fpm
Auto Increment feeds 0.08"-0.4"
Hand-wheel per graduation 0.0008"
Hand-wheel per revolution 0.2"
VERTICAL DOWN-FEED
Rapid Traverse 39.4 in/min
Auto down-feed 0.0004"~0.002"
Hand-wheel per gradation 0.000040"/0.0004"/0.004"
Hand-wheel per revolution 0.004"/0.04"/0.4"
GRINDING WHEEL
Wheel size 16" x 2" x 5"
Spindle Speeds 1780 rpm
MOTOR
Spindle Motor 10 HP
Cross-feed motor 1/4 HP
Elevating motor 1 KW
Hydraulic Motor 5 HP
OPTIONAL ACCESSORIES
OP7-5001 Electromagnetic chuck $6,670.00
OPT-5002 Chuck control $620.00
OG3-2004 Coolant system w/paper filter $2,670.00
TOTAL FOR CHUCK, CONTROL AND COOLANT = $ 9,960.00
Special price when purchased together with machine = $ 6,125.00
Savings of $ 3,835.00
Mist collector above machine, Mounting extra $ 3,000.00
Misc. 3 days on site set/up training by Supertec (US/MEX/CAN) $ 6,000.00
2 Axis Digital Readouts, 1 micron, magnetic, lifetime warranty $ 2,650.00
Approx. freight from CA. to $ 2,500.00
Total for machine and options above $ 99,465.00
Additionally available:440 volt conversion
Equipped With
Diamond Dresser, Wheel Extractor, Front & Rear Splash Guard, Halogen Work Lamp, Balancing Arbor, machines Wired 220 Volts/3 Phase/60 Hertz.
