USED 1992 CLEAVER BROOKS CB-200-150

OVERVIEW

This is a Cleaver Brooks Model CB 200-150 packaged firetube steam boiler — 150 HP, 150 PSI maximum working pressure, dual-fuel natural gas and oil fired. Serial Number L-91225, Date 9/10/92. National Board Number 03010, certified by Cleaver Brooks. ASME rated — 750 sq ft heating surface. Maximum input 6,277,000 BTU/HR. UL Listed Gas-Oil Fired Boiler Assembly No. AH252491. Manufactured by Cleaver-Brooks Division, Aqua-Chem, Inc., Milwaukee, Wisconsin, USA. Ready for inspection — contact us to schedule.

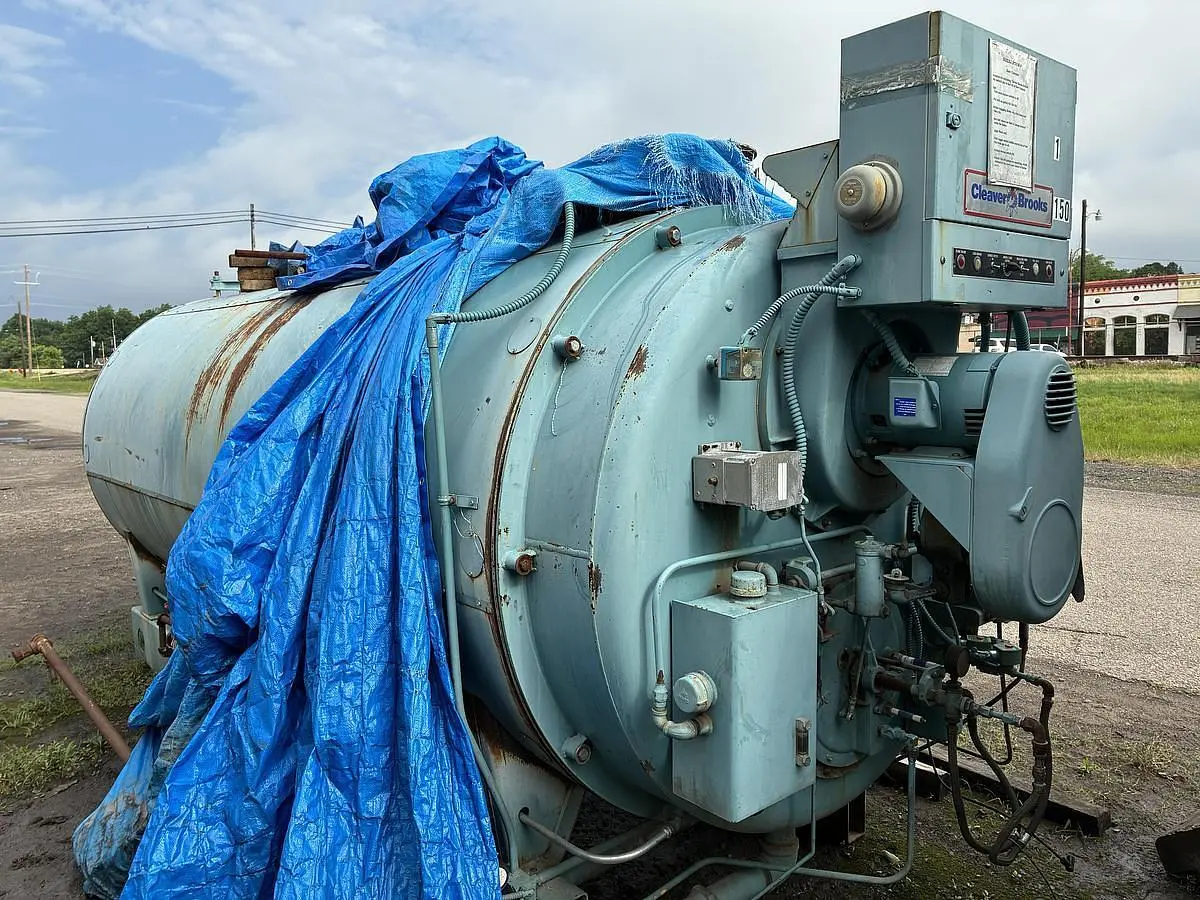

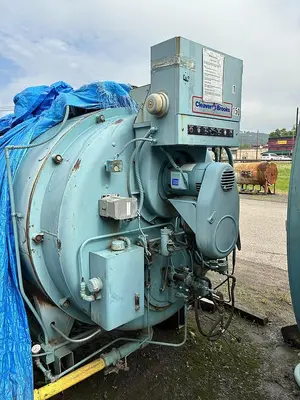

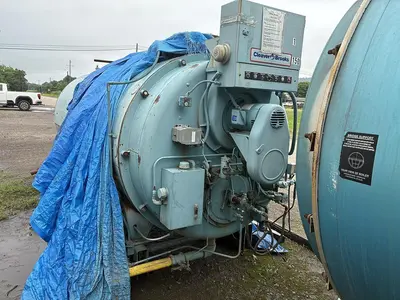

Cleaver Brooks CB Series horizontal firetube packaged steam boiler — one of the most recognized and trusted names in industrial steam generation. 150 HP capacity with 6,277,000 BTU/HR maximum input. Dual-fuel capability — natural gas primary with No. 2 oil backup (45 GPH oil). 150 PSI MAWP — high-pressure steam. Factory-mounted Cleaver Brooks control panel with Honeywell burner management system, modulating burner control, pressure control, and full safety interlock system. 7.5 HP blower motor — 460V, 3-Phase. Complete with gas train, safety shut-off valves, pressure regulators, and all boiler trim. Horizontal shell with structural steel base frame.
Ideal for large-scale industrial process steam, manufacturing, institutional heating, food and beverage processing, laundry operations, hospital or healthcare steam systems, or any application requiring a proven, high-capacity dual-fuel firetube steam boiler.

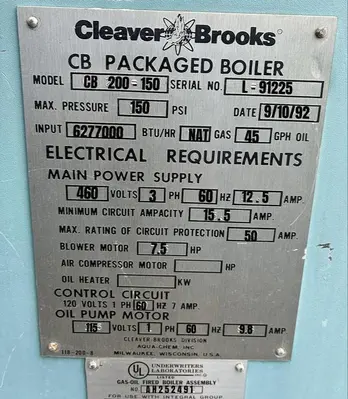

EQUIPMENT SPECIFICATIONS


Manufacturer: Cleaver Brooks (Cleaver-Brooks Division, Aqua-Chem, Inc. — Milwaukee, Wisconsin, USA)
Model: CB 200-150
Serial Number: L-91225

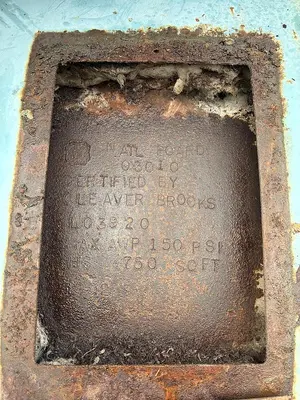

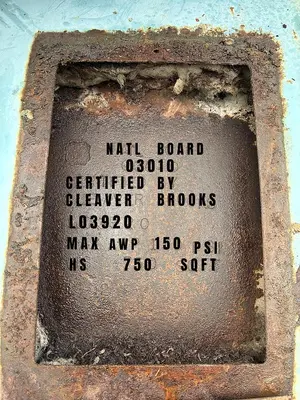

National Board Number: 03010
Date: 9/10/92
Boiler Type: Firetube Packaged Steam Boiler — Horizontal
Fuel Type: Dual Fuel — Natural Gas / No. 2 Oil
Boiler Horsepower: 150 HP
Max. Working Pressure (MAWP): 150 PSI
Heating Surface: 750 Sq Ft
Max. Gas Input: 6,277,000 BTU/HR
Oil Input: 45 GPH

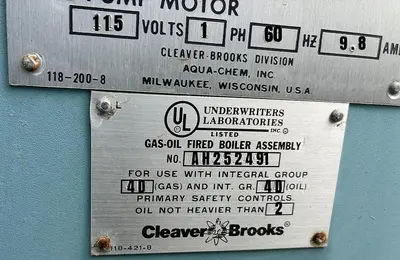

UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
Certification: ASME — Certified by Cleaver Brooks

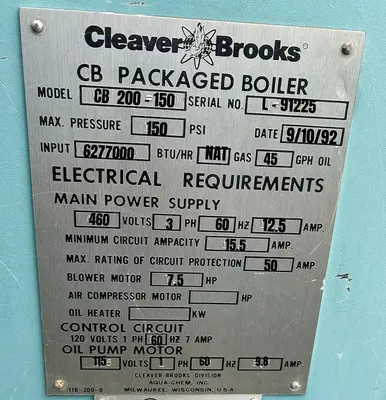

Electrical Requirements:

Main Power Supply: 460V, 3-Phase, 60 Hz, 12.5 Amps
Min. Circuit Ampacity: 15.5 Amps
Max. Circuit Protection: 50 Amps
Blower Motor: 7.5 HP
Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps


KEY FEATURES & BENEFITS

Cleaver Brooks CB Series Firetube Design:

Cleaver Brooks CB Series — industry-leading horizontal firetube packaged boiler platform
150 HP / 6,277,000 BTU/HR maximum input
750 sq ft heating surface — robust steam generating capacity
150 PSI MAWP — high-pressure steam capability
ASME certified — National Board No. 03010
Horizontal shell design — structural steel base frame with skid runners

Dual-Fuel Burner System:

Factory-mounted dual-fuel burner — natural gas and No. 2 oil (up to 45 GPH)
Fuel selector switch — Gas/Oil selection visible in control panel

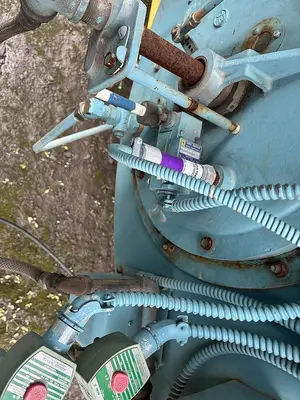

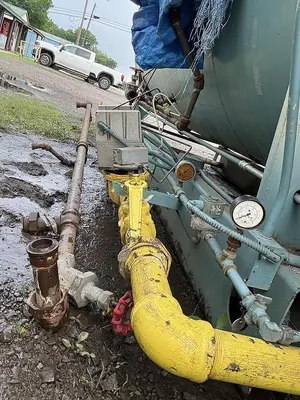

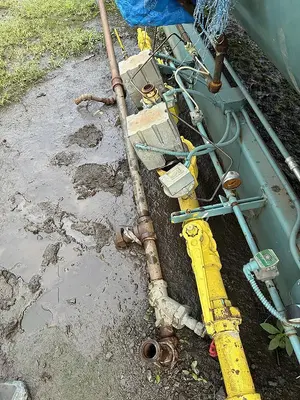

Complete gas train — safety shut-off valves, pressure regulators
Square D limit switch — burner linkage assembly
Modulating burner control — full modulation from low to high fire

Cleaver Brooks Control Panel:

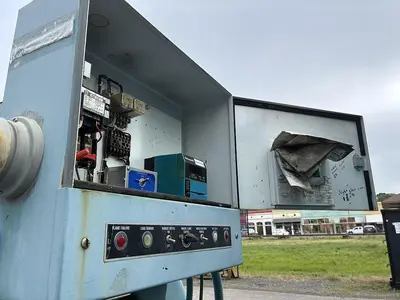

Factory-mounted Cleaver Brooks control panel — top-mounted enclosure
Honeywell burner management / flame safeguard module
Front panel controls: Flame Failure indicator, Load Demand, Burner Switch On/Off, Manual Flame Control (Close to Auto), Modulating Mode, Fuel Valve, Low Water
Cleaver Brooks pressure control — Main and Differential pressure adjustment

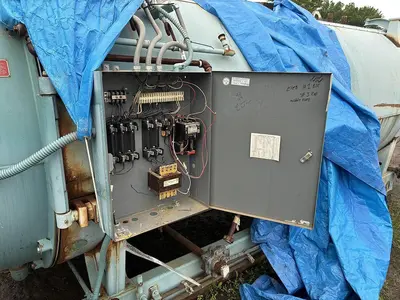

Internal panel: Square D motor starter, contactor, control transformer, terminal strips
UL listed control assembly

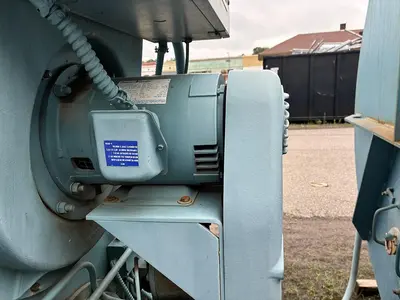

Blower Motor:

7.5 HP blower motor — factory mounted on burner end
460V, 3-Phase drive — belt-driven centrifugal blower wheel
Cleaver Brooks labeled motor with lubrication instructions

Pressure & Safety Controls:

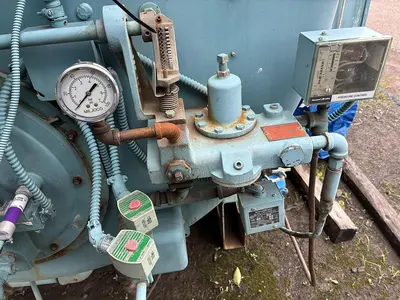

Cleaver Brooks pressure control (Main/Differential)
Miljoco pressure gauge — visible on burner end
Low water cutoff
Safety relief valve provisions
Full safety interlock system

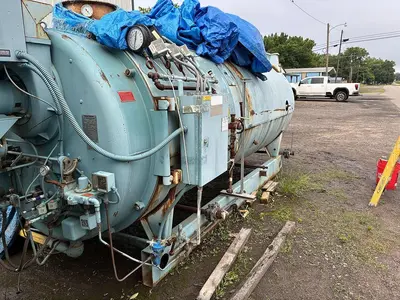

Shell & Fireside:

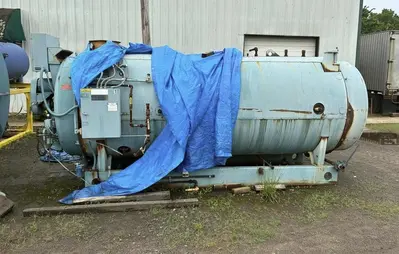

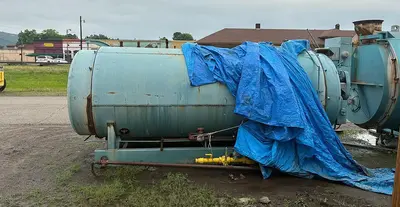

Horizontal firetube shell — light blue factory finish

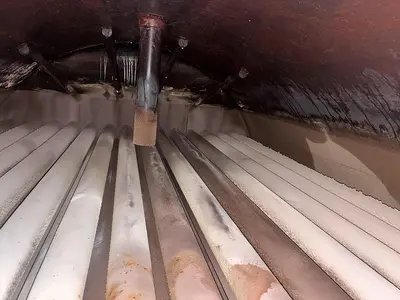

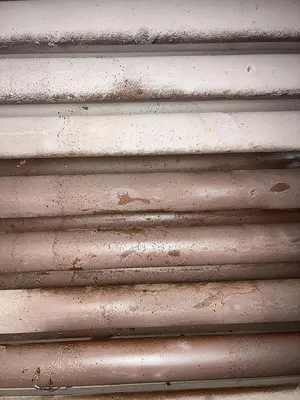

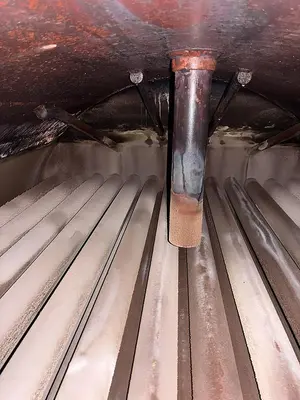

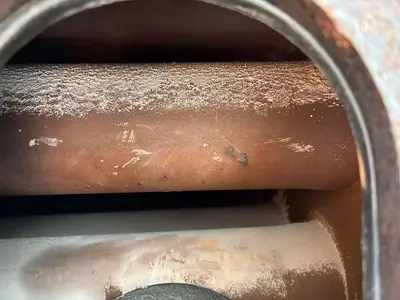

Firetube bundle visible through rear inspection opening — tubes in clean condition

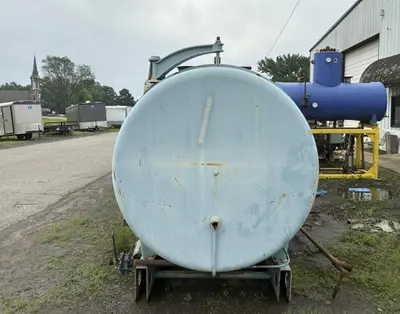

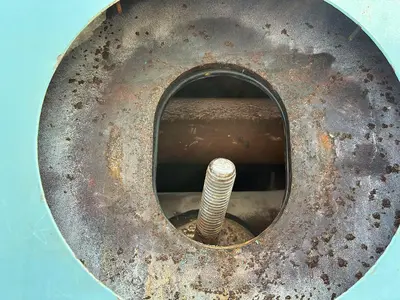

Rear access door / rear head — accessible for tube inspection and cleaning

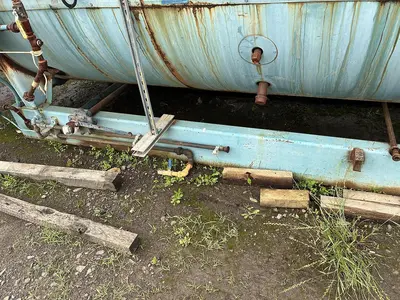

Blow down connections on shell


SYSTEM COMPONENTS
Main Boiler:

Cleaver Brooks CB 200-150 horizontal firetube shell
S/N L-91225, NB No. 03010, Date 9/10/92
150 HP, 150 PSI MAWP, 750 sq ft HS
Structural steel base frame / skid runners

Burner & Fuel System:

Dual-fuel burner assembly — Natural Gas / No. 2 Oil
Complete gas train — safety shut-off valves and pressure regulators
Oil pump motor — 115V, 1-Phase, 9.8 Amps
Fuel selector switch

Control System:

Cleaver Brooks factory control panel — top-mounted
Honeywell flame safeguard / burner management module
Square D motor starter and contactor
Control transformer
Pressure control (Main/Differential)
Front panel operator controls — Flame Failure, Load Demand, Burner Switch, Modulating Control, Fuel Valve, Low Water

Blower:

7.5 HP blower motor — 460V, 3-Phase, 60 Hz
Belt-driven centrifugal blower


SPECIFICATIONS SUMMARY

Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
Model: CB 200-150
Serial Number: L-91225
National Board Number: 03010
Date: 9/10/92
Boiler Type: Horizontal Firetube Packaged Steam Boiler
Fuel: Dual Fuel — Natural Gas / No. 2 Oil
Boiler HP: 150 HP
Max. Working Pressure: 150 PSI
Heating Surface: 750 Sq Ft
Max. Input: 6,277,000 BTU/HR
Oil Input: 45 GPH
Main Power: 460V, 3-Phase, 60 Hz
Blower Motor: 7.5 HP
Control Circuit: 120V, 1-Phase, 60 Hz
Oil Pump Motor: 115V, 1-Phase, 60 Hz, 9.8 Amps
UL Listed: Gas-Oil Fired Boiler Assembly No. AH252491
Condition: Used


ADDITIONAL INFORMATION

Condition: Used
Manufacturer: Cleaver Brooks — Milwaukee, Wisconsin, USA
Model: CB 200-150
Serial Number: L-91225
National Board Number: 03010
Boiler HP: 150 HP — 150 PSI MAWP
Fuel: Dual Fuel — Natural Gas / No. 2 Oil
Blower Motor: 7.5 HP — 460V, 3-Phase
Control Panel: Cleaver Brooks factory panel with Honeywell burner management
Inspection: Welcome — contact us to schedule


IMPORTANT NOTES:

Dual-fuel firetube steam boiler — natural gas and No. 2 oil capable
150 HP / 150 PSI MAWP — high-pressure steam — ASME certified
Unit is stored outdoors — buyer should inspect condition thoroughly prior to purchase
Buyer responsible for transport and rigging arrangements from current location
Contact us for additional photos, video walkthroughs, or technical questions

* Model: CB 200-150
* Serial Number: L-91225
* National Board Number: 03010
* Date: 9/10/92
* Boiler Horsepower: 150 HP
* Heating Surface: 750 Sq Ft
