USED SICK XC40E-0303A0A0CBC0

This listing is for the RECEIVER ONLY. The emitter is NOT included.

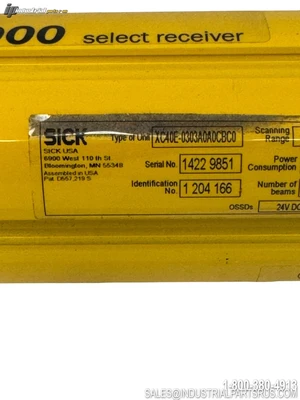

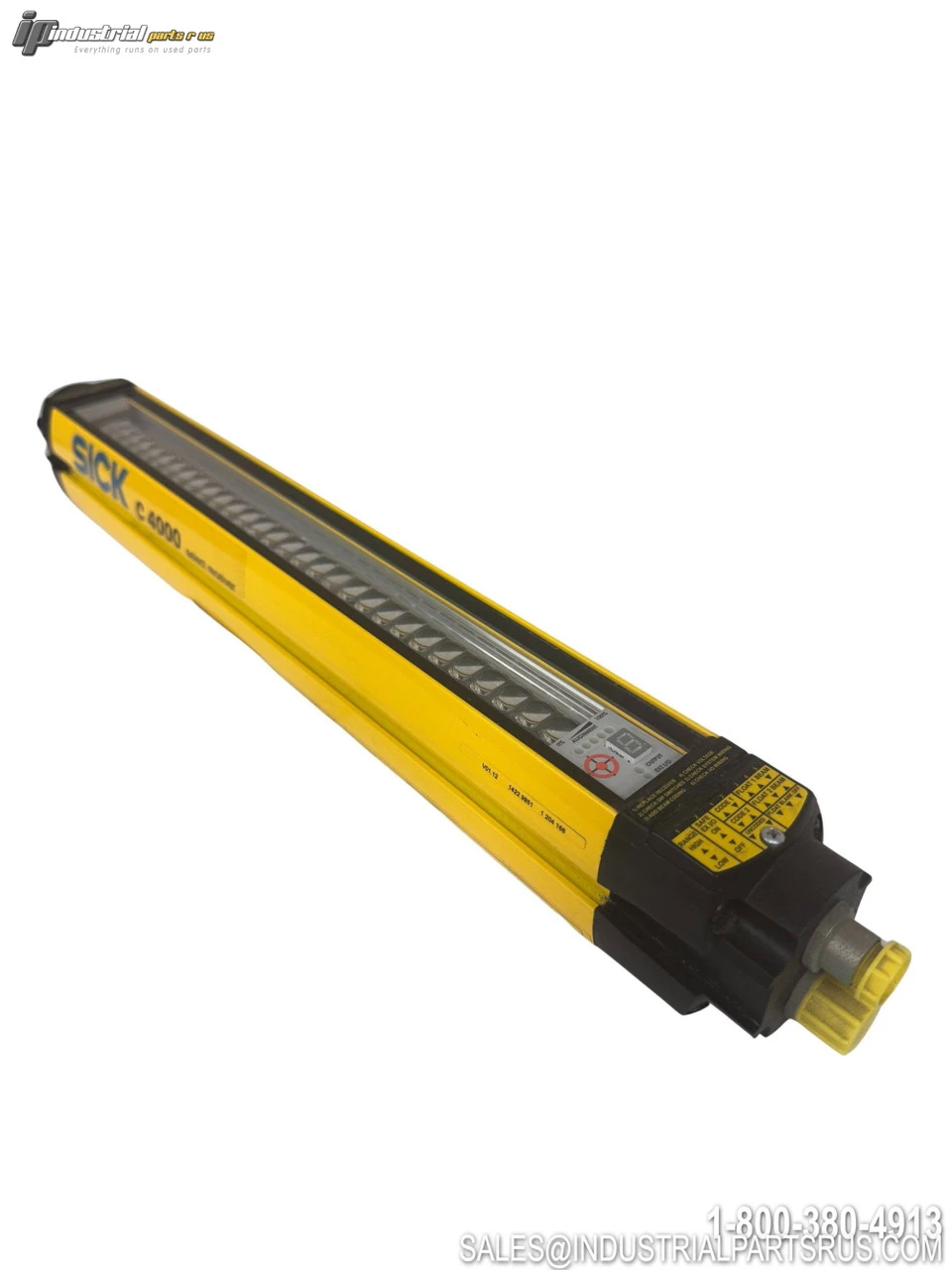

The Sick XC40E-0303A0A0CBC0 is a C4000 Select safety light curtain receiver designed for industrial machine safety applications. This receiver unit provides 30mm detection resolution with a 300mm protective field height and features optical synchronization with its corresponding sender unit. The unit operates on 24VDC supply voltage and includes integrated LED status indicators for system diagnostics.
Specification
Value
Brand
Sick
Model/Part Number
XC40E-0303A0A0CBC0
Series
C4000 Select
System Part
Receiver
Protective Height
300mm
Detection Capability/Resolution
30mm
Supply Voltage
24 VDC (19.2V - 28.8V)
Operating Range
0 - 19.0m
Output Type
2 PNP Semiconductors
Protection Rating
IP65
Operating Temperature
0°C to 55°C
Safety Level
Type 4, SIL 3, Category 4, PL e
Connection Type
Male Connector M12, 5-pin
Configuration
DIP Switch
Display
7-segment Display
We warranty all items for 30 days from date of purchase.

SKU: AI1747
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 6.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: 2 PNP Semiconductors
Manufacturer: SICK
Part Number: XC40E-0303A0A0CBC0
Shelf: LC Bin
Model: XC40E-0303A0A0CBC0
MPN: XC40E-0303A0A0CBC0
Type: Light Curtain
