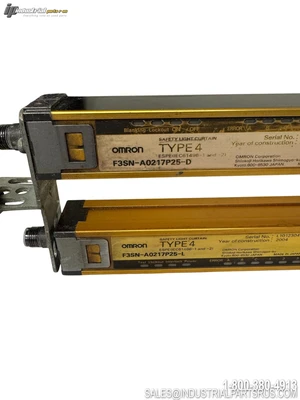

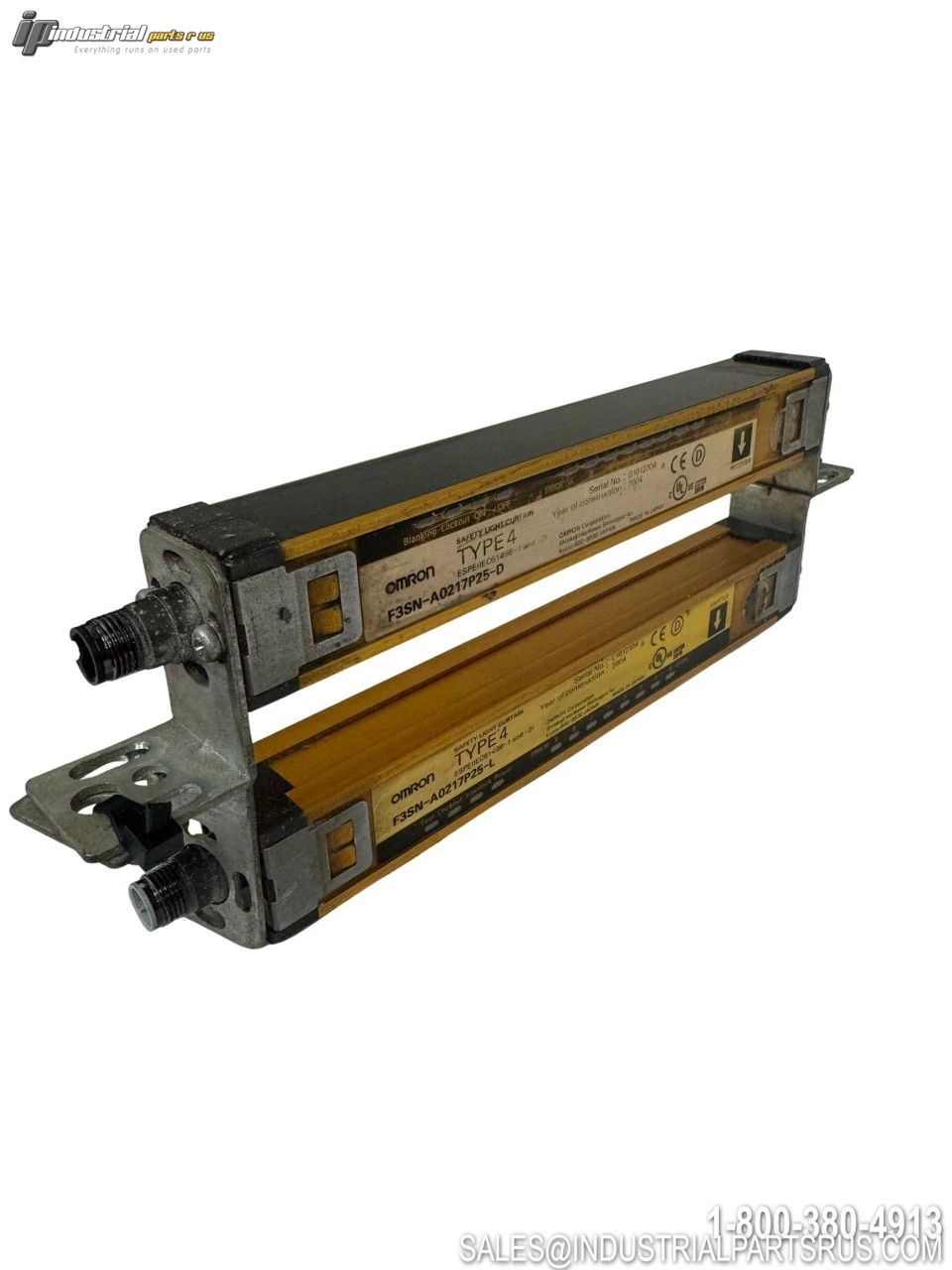

USED OMRON F3SN-A0217P25-D & L

This listing includes the COMPLETE SET with both emitter and receiver units.
The Omron F3SN-A0217P25-D & L is a complete safety light curtain system including both emitter (L) and receiver (D) units. This system provides Category 4 safety protection with 13 optical beams spanning a 217mm protective height, designed for machine safeguarding applications requiring PLe safety level compliance.
Specification
Value
Brand
Omron
Model/Part Number
F3SN-A0217P25-D & L
Type
Light Curtain
Series
F3SN-A
Protective Height
217mm
Number of Beams
13
Detection Capability
25mm
Safety Category
Category 4
Performance Level
PLe
Operating Range
0.2 to 10m
Supply Voltage
24VDC
Response Time ON to OFF
10 to 15 ms max
Response Time OFF to ON
40 to 60 ms max
Output Type
PNP Transistor
Load Current
300mA max
Mounting
Brackets included
Enclosure Rating
IP67
Case Material
Aluminum
Compliance
ANSI/RIA, OSHA, IEC, EN, UL, CSA
We warranty all items for 30 days from date of purchase.

SKU: AI1744
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP Transistor
Full Load Amps: 300mA max
Manufacturer: Omron
Enclosure Type: IP67
Part Number: F3SN-A0217P25-L / F3SN-A0217P25-D
Shelf: LC Bin
Model: F3SN-A0217P25-D & L
MPN: F3SN-A0217P25-L / F3SN-A0217P25-D
Type: Light Curtain
