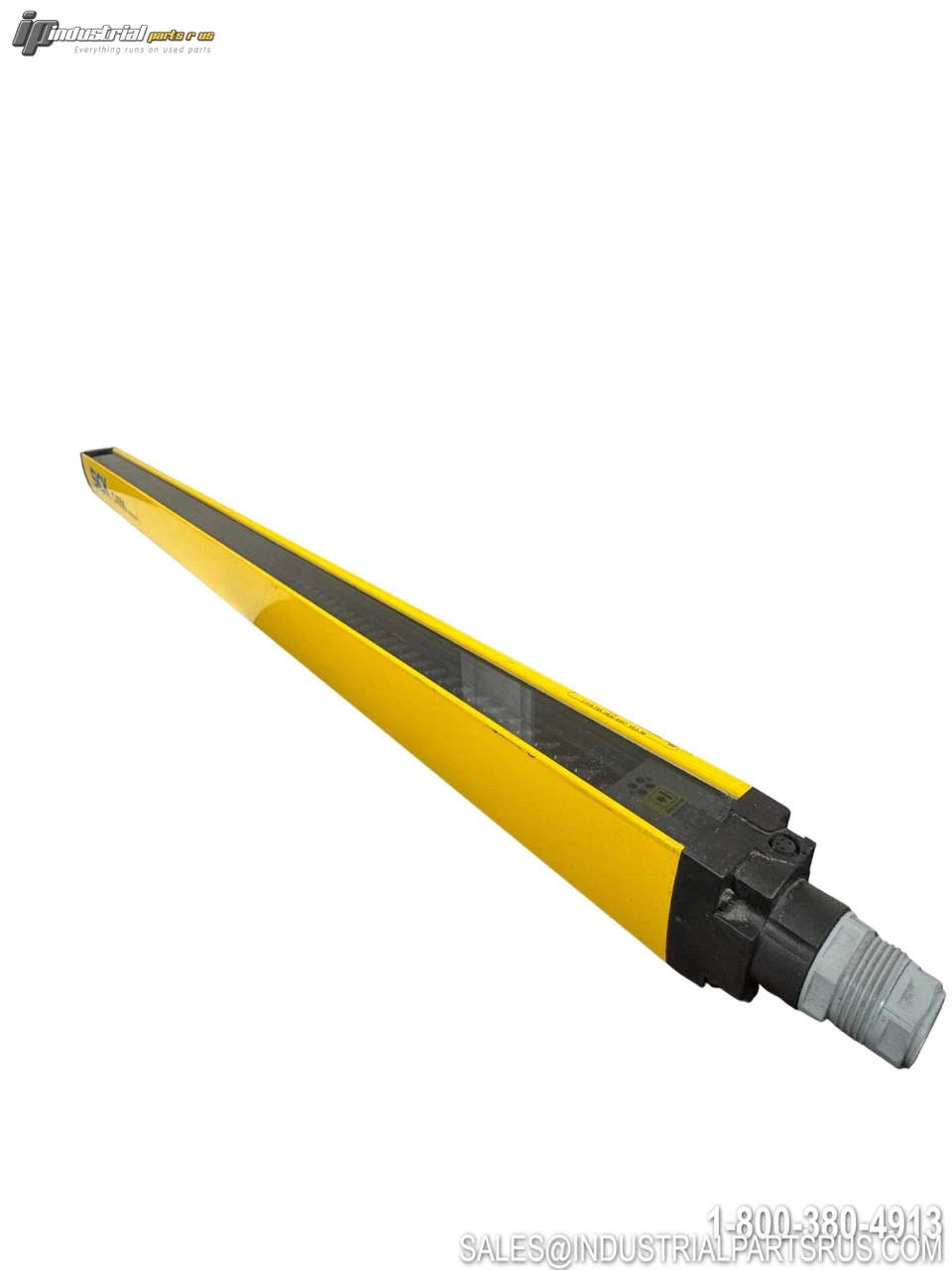

USED SICK C40E-0702CB010

This listing is for the RECEIVER ONLY. The emitter is NOT included.
The Sick C40E-0702CB010 is a C4000 Advanced safety light curtain receiver designed for industrial safety applications to protect against access into hazardous points and areas. This model features a 750mm protective field height with 20mm resolution for finger and hand protection, offering Type 4 safety performance with SIL 3 and Category 4 PL e rating.
Specification
Value
Brand
Sick
Model/Part Number
C40E-0702CB010
SICK ID Number
1018795
Series
C4000 Advanced
System Part
Receiver
Protection Field Height
750mm
Resolution
20mm
Scanning Range
21m
Response Time
14ms (without beam coding, blanking, cascade)
Safety Type
Type 4 (IEC 61496-1)
Safety Integrity Level
SIL 3 (IEC 61508)
Safety Category
Category 4 (EN ISO 13849)
Performance Level
PL e (EN ISO 13849)
Synchronization
Optical Synchronization
Connection Type
M8, 4-pin female connector
Status Display
7-segment display
Conductor Cross Section
0.75 mm²
Allowed Cable Length
50m (dependent on load, power supply, conductor cross section)
Configuration
PC with CDS (Configuration and Diagnostic Software)
Application Environment
Standard Industrial Environment
We warranty all items for 30 days from date of purchase.

SKU: AI1748
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 8.00
(in)
Height: 4.00
(in)
Depth: 36.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: SICK
Part Number: C40E-0702CB010
Shelf: LC Bin
Model: C40E-0702CB010
MPN: C40E-0702CB010
Type: Safety Light Curtain
