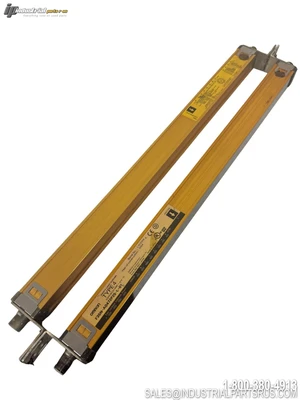

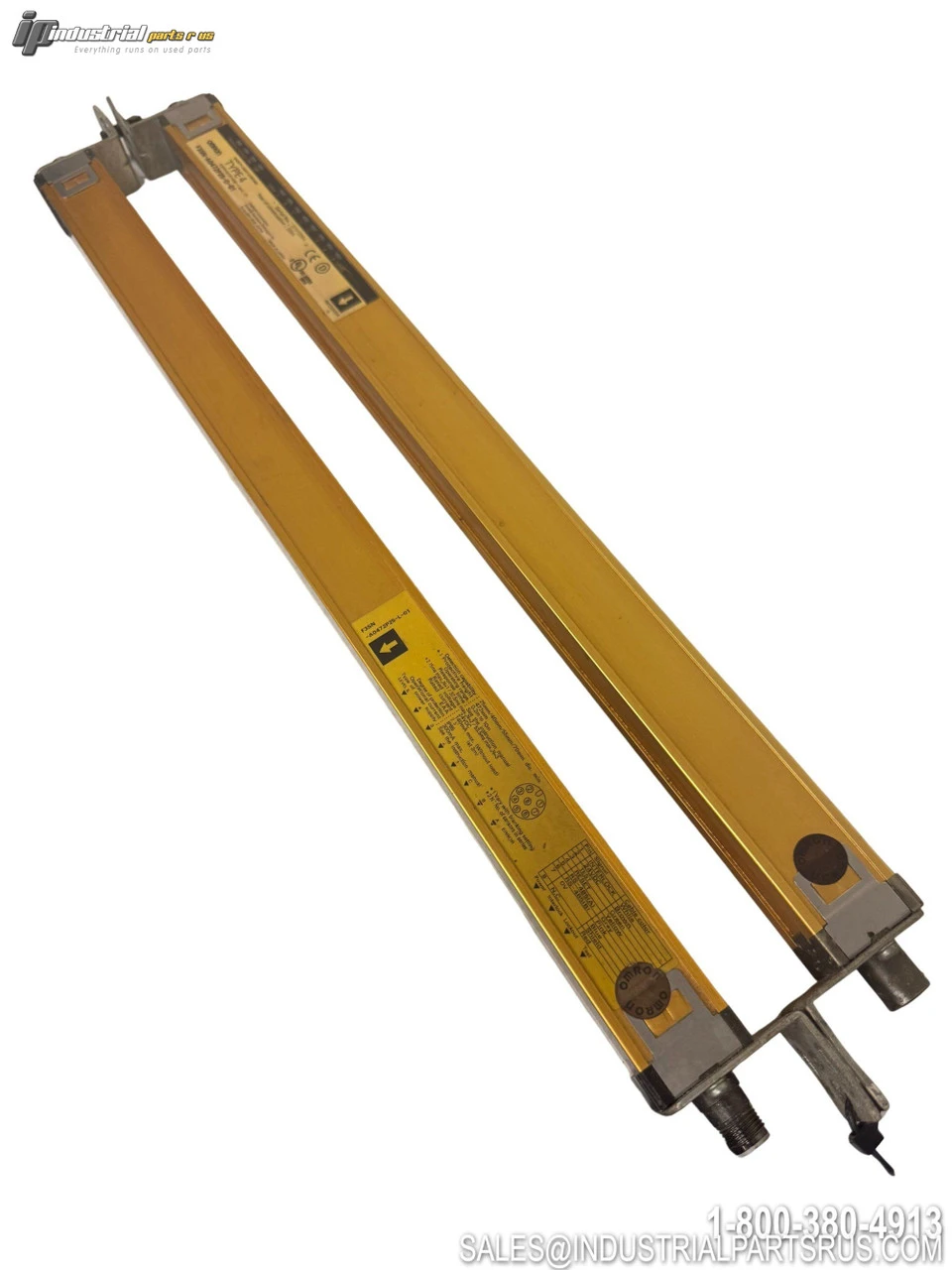

USED OMRON F3SN-A047225-D-01 / F3SN-A0472P25-L-01

This listing includes the COMPLETE SET with both emitter and receiver units.
The Omron F3SN-A0472P25-L-01 is a safety light curtain emitter designed for industrial safety applications. This infrared safety sensor creates a protective light barrier to detect objects or personnel entering hazardous areas, automatically shutting down machinery when the beam is interrupted.
Specification
Value
Brand
Omron
Model/Part Number
F3SN-A047225-D-01 / F3SN-A0472P25-L-01
Product Type
Safety Light Curtain Emitter
Series
F3SN-A
Protective Height
472mm
Beam Spacing
25mm
Number of Beams
30
Light Source
Infrared LED (870nm)
Operating Voltage
24VDC
Connection Type
M12 Waterproof Connector
Detection Range
0.2 to 10m
Response Time
25µs max
Safety Category
Category 4
Housing Material
Aluminum
IP Rating
IP67
Temperature Range
-10°C to +55°C
We warranty all items for 30 days from date of purchase.

SKU: AI1751
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 12.00
(in)
Height: 8.00
(in)
Depth: 24.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Omron
Enclosure Type: IP67 Waterproof
Part Number: F3SN-A0472P25-L-01 / F3SN-A0472P25-D-01
Shelf: LC Bin 33
Model: F3SN-A047225-D-01 / F3SN-A0472P25-L-01
MPN: F3SN-A0472P25-L-01 / F3SN-A0472P25-D-01
Type: Safety Light Curtain
