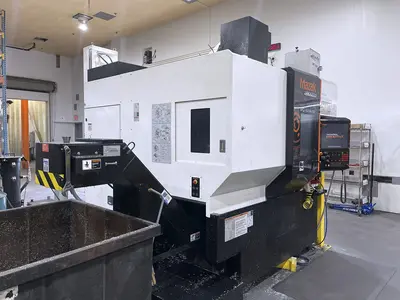

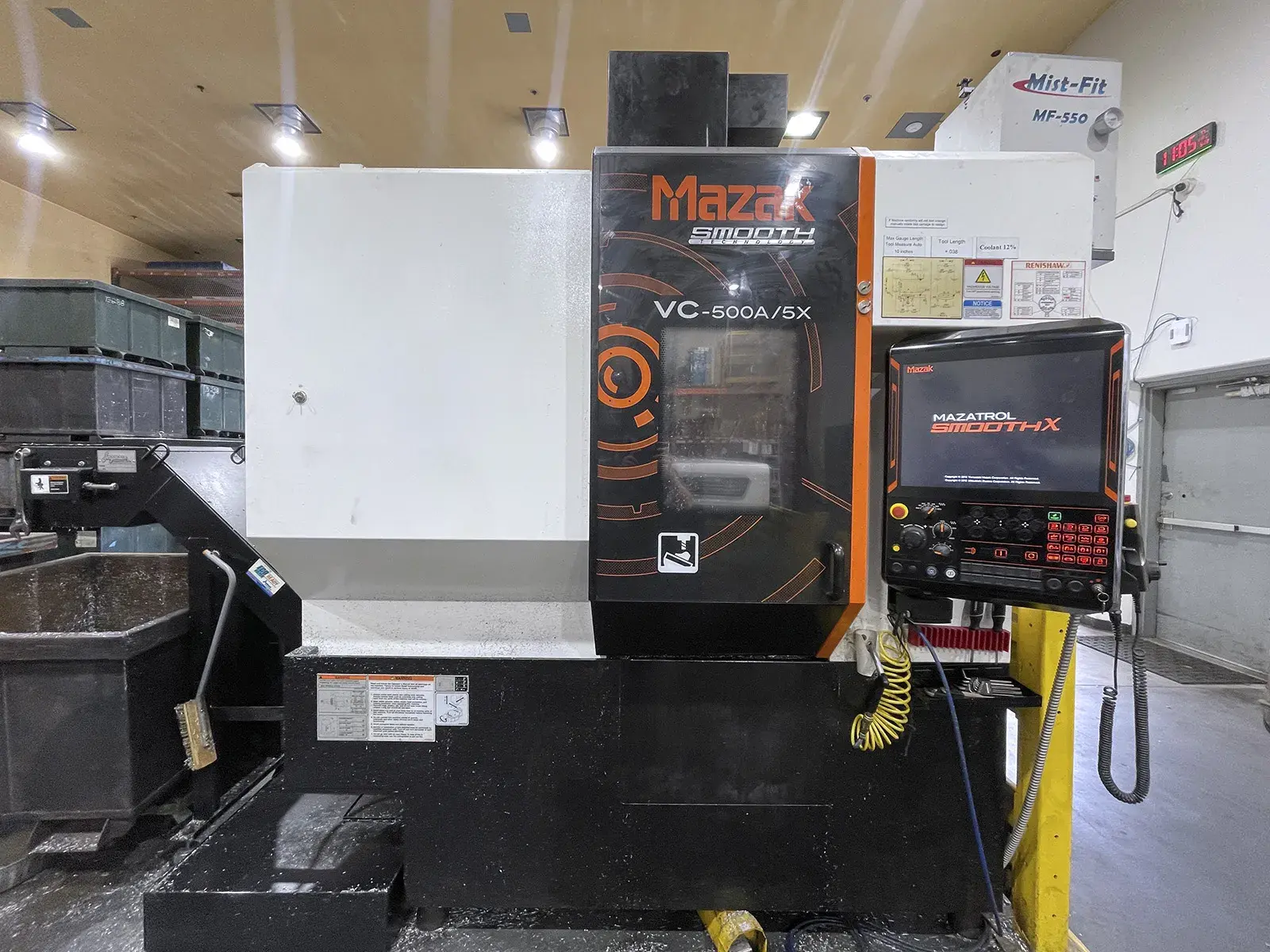

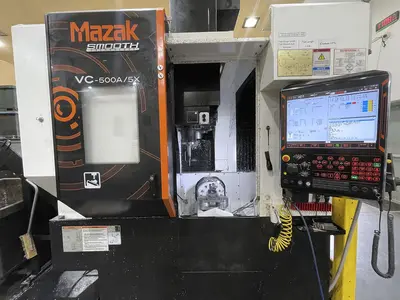

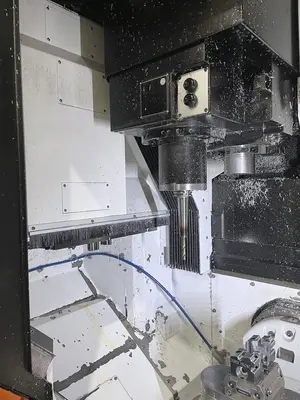

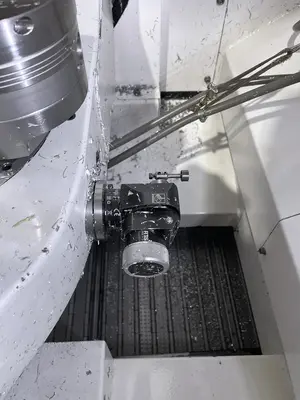

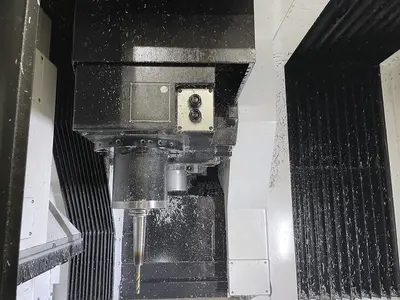

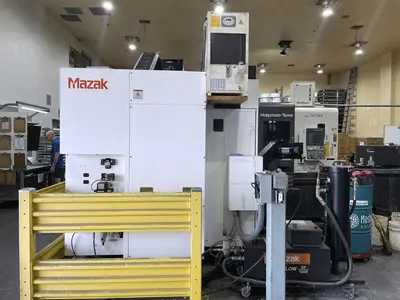

USED 2017 MAZAK VC 500A 5X
Overview
The Mazak VC 500A 5X SmoothX 5-Axis Machining Center (2017) is a high-performance CNC platform engineered for complex, multi-sided machining with exceptional precision and efficiency. Equipped with Mazatrol SmoothX control, it minimizes setup times while maximizing productivity for aerospace, automotive, medical, and die-mold applications. Ideal for machining intricate aluminum, titanium, and steel components, this versatile 5-axis machine delivers superior accuracy, surface finishes, and repeatability for demanding manufacturing environments.
Specs

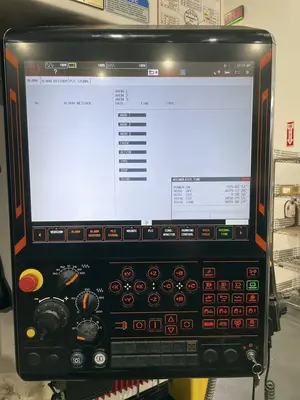

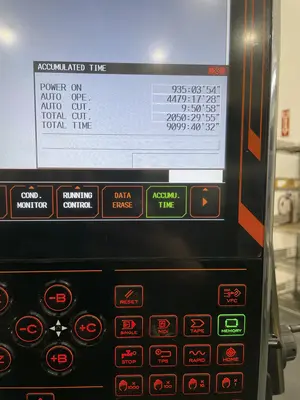

Smooth X Control

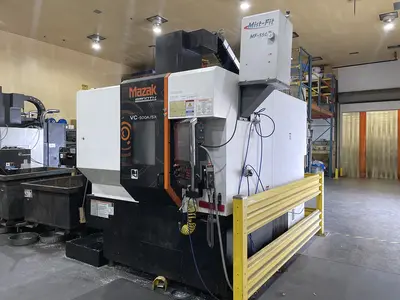

Mist-Fit MF-550

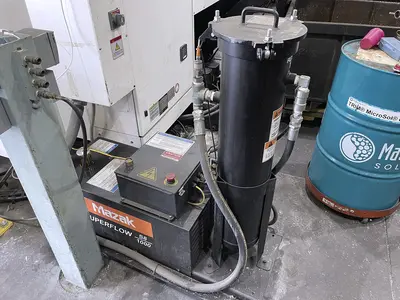

Superflow S8 1000

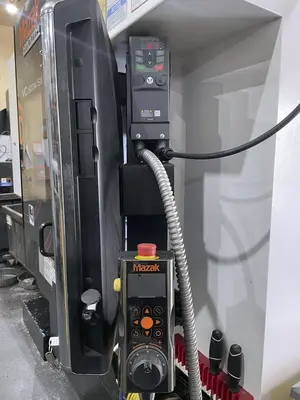

Jog Handle
Tool Pre-Setter

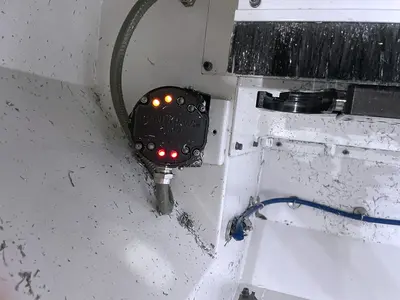

Renishaw RMI-Q
Coolant Tank

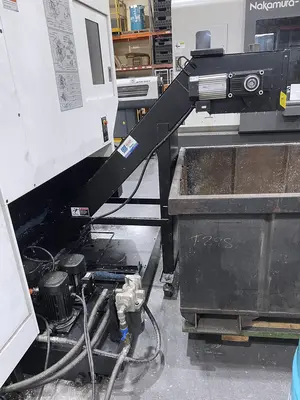

Chip Conveyor
X, Y, Z travel: 19.7" / 17.7" / 17.7"
A-Axis Range: +30° / −110°
C-Axis Range: 360° (continuous)

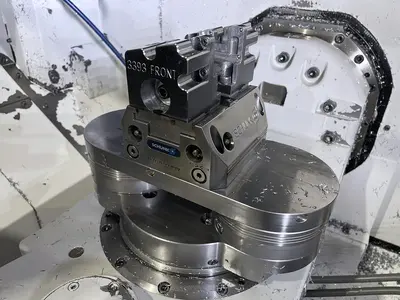

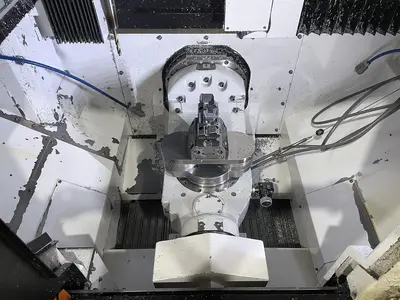

Table Diameter: 19.7" (500mm)
Max Table Load: 660 lbs (300 kg)
Spindle Taper
Spindle speed rpm
Spindle Motor: 25 hp (18.5 kW)
ATC Capacity: 30 tools (standard)
Max Tool Diameter: 3.94" (100mm)
Max Tool Length: 11.8" (300mm)
Max Tool Weight: 13.2 lbs (6 kg)
Rapid Traverse (X/Y/Z): 1,969 IPM (50 m/min)
Rapid Traverse (A/C): 75 RPM
Positioning Accuracy: ±0.0001"
Equipped With
Smooth X Control
Mist-Fit MF-550
Superflow S8 1000
Jog Handle
Tool Pre-Setter
Renishaw RMI-Q
Coolant Tank
Chip Conveyor
