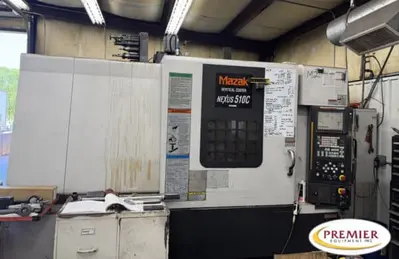

Mazak Nexus 510C with Rotary Table – 2004

Mazak Nexus 510C CNC Mill / VCN-510C / VCN510C
CNC Vertical Machining Center

TABLE SIZE 51.2” X 21.6”
X-AXIS STROKE 41.3”
Y-AXIS STROKE 20.0”
Z-AXIS STROKE 20.0”
MAXIMUM TABLE WEIGHT CAPACITY 2,646 LBS
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR (5MIN/10MIN/CONT.) 25/20/10 HP
SPINDLE TAPER #40
RAPID TRAVERSE (X,Y,Z) 1417.3 IPM
NUMBER OF TOOLS 30

MAZATROL PC-Fusion-CNC 640M Nexus Control
Thru Spindle Coolant @ 71 PSI
Chip Conveyor Left Disp. (Hinge for Steel)
Synchronized Tapping Software
**Mazak RS-320RAM01 NC Rotary Table (**Needs a New Cable)
Champion EIA/ISO Optional Package
