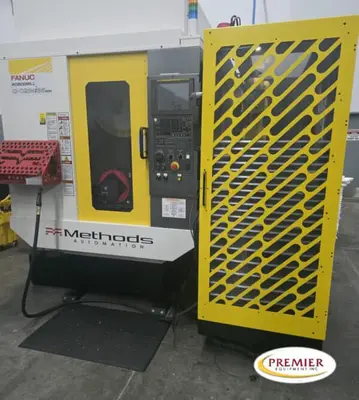

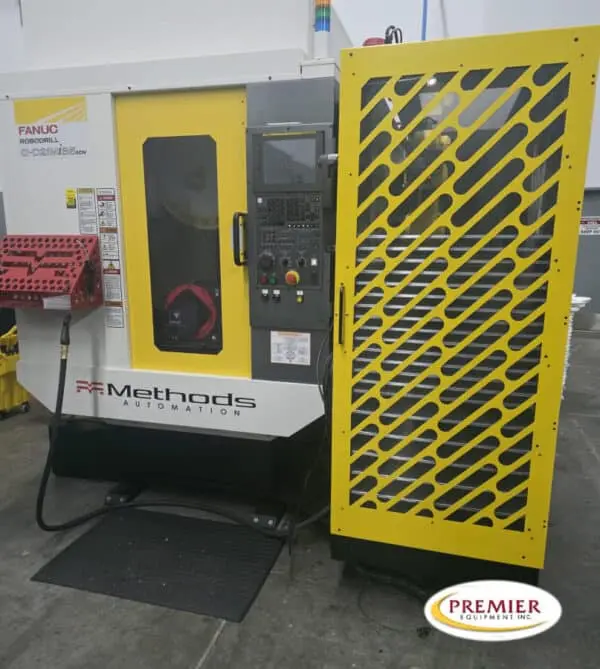

Fanuc Robodrill D21MiB5ADV with Robot System – 2021
Overview
Fanuc Robodrill α-D21MiB5ADV with Fanuc Robot CNC Drill Tap
Specs
Travel X/Y/Z19.69” x 15.75” x 15.75”
Max. tool length (0–24,000 rpm) 9.84”
Max. tool diameter 3.93”
Table size 25.59” x 15.75”
Max. table load 880 lbs
Max. tool mass (0–24,000 rpm) 8.8 lbs
Distance from spindle nose to table (with HC100) 7.08” – 22.83”
Spindle speed 24,000 RPM
Taper BT30 Big Plus
Rapid traverse in all axes 2125 IPM
Programmable cutting feed 1181 IPM
Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6 / 1.2 / 1.6
Number of tools 21 ATC
Tool change time (2 kg-tool) (cut to cut) s 1.3 sec
Machine Weight 4000 lbs
Equipped With
Fanuc Series 31i-Model B5
21 ATC
24K ADV
Robot Ready 100mm
Plus-E Accessories Kit Prepped
Base Pallet, Plus-E (15)
CC Scraper LH+ Tank
HPC Unit 1000psi
RMP400 + RTS HSS DiB5 Combo Probes
DTTiB Double Torque 5 Axis Table
Fanuc Package B – High Speed 5 Axis DiB5
2 Valve Pneu Fixture DiB5
2 Clamp/Unclamp Push Buttons, ROBO
DTT-260iB Schunk KSP-100 Adapter Kit
Manufactured in 2021 / Installed New in 2022
