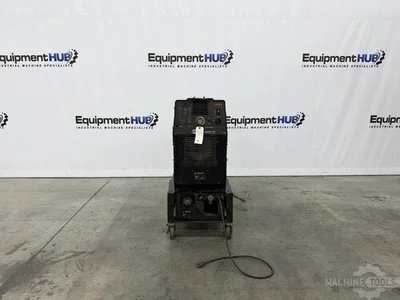

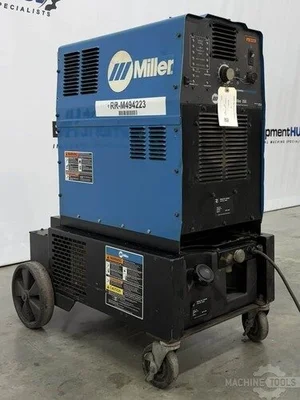

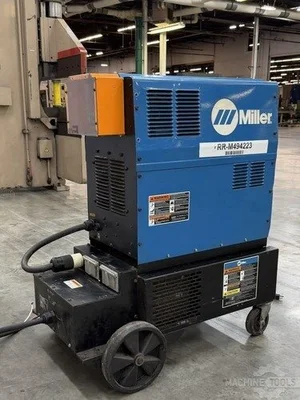

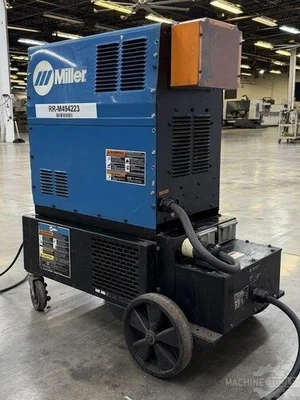

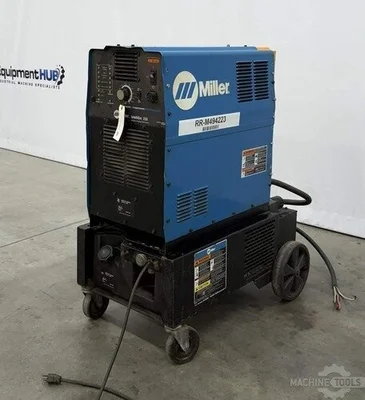

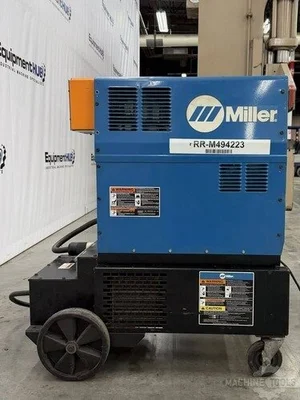

USED MILLER INTELLIFIRE 250

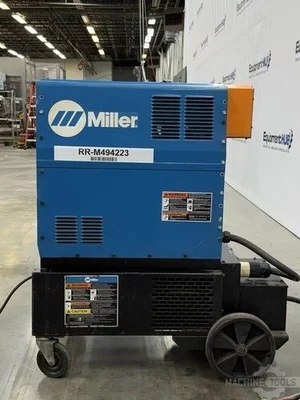

Miller Intellifire 250 Induction Heating Power Source w/ Intergrated Cooler

General Info

Stock #: 190260016
Location: Decatur, GA
Brand: Miller
Model: Intellifire 250

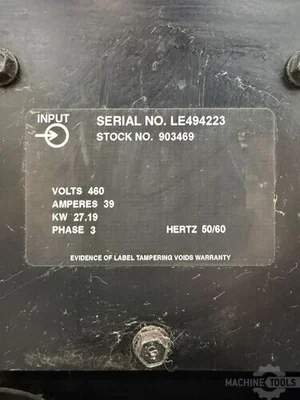

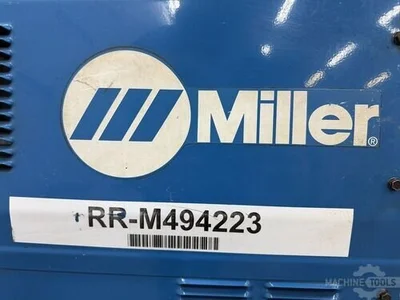

Serial #: LE494223
Approx. Shipping Weight: 400 lbs.
Approx. Shipping Dimensions: 4' L x 4' W x 4' H
Skidding Fee: $100

Specifications

Type: Induction Heating Power Source
Rated Output: 25 KW at 100% Duty Cycle
Power Adjust Range: 0-25 KW
Output Frequency: 10-50 kHz
Output: 750A (RMS), 700V (RMS)
Required Inductance: 2.5-50 µH
Input Amperage: 39A at 460V
Input KW: 27.19
Max Temperature: 1,450°F (788°C)
Applications: Preheating, Stress Relieving, Post Weld Heat Treatment (PWHT), Hydrogen Bake-Out, Shrink Fit
Power: 460V, 3Ph, 50/60Hz

Equipped With

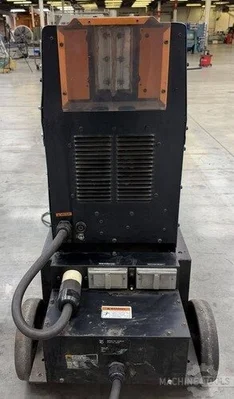

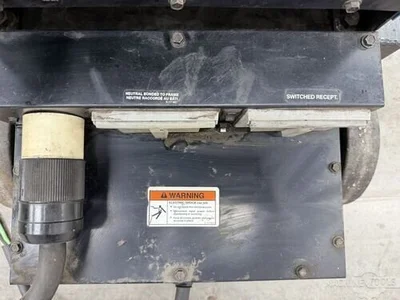

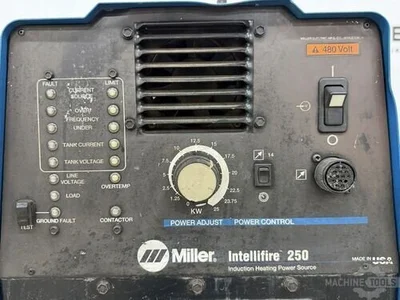

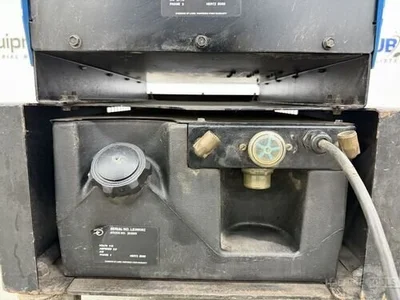

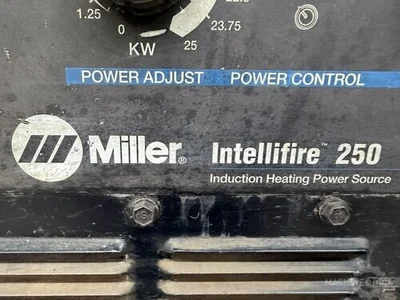

Fault/Limit Indicator Panel (Current Source, Over/Under Frequency, Tank Current, Tank Voltage), Line Voltage Indicator, Load Indicator, Ground Fault Test, Overtemp Indicator, Contactor Indicator, Power Adjust Dial (0?25 KW), Power Control On/Off Switch, Remote 14-Pin Connector, 480 Volt Warning Label, Output Transformer Housing with Clear Lexan Cover, Integrated Coolant Recirculator (Serial # LE399352, 115V, 1Ph, 5.0A) with Reservoir, Sight Glass and Fill Cap, Switched Receptacles, Neutral Bonded to Frame, Running Gear with Handle, Wheels and Casters, Power Cable with Plug

Additional Info
The Miller Welder can be demoed upon request.
