USED MILLER INTELLIFIRE 250

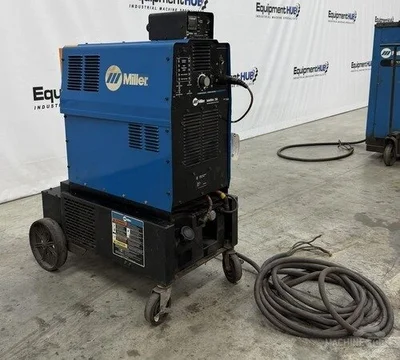

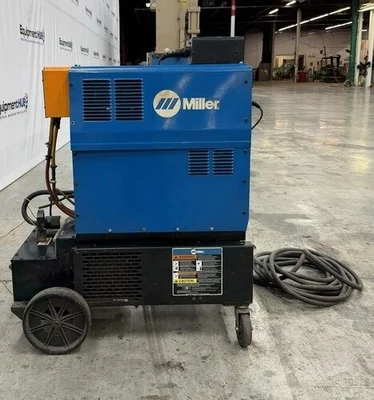

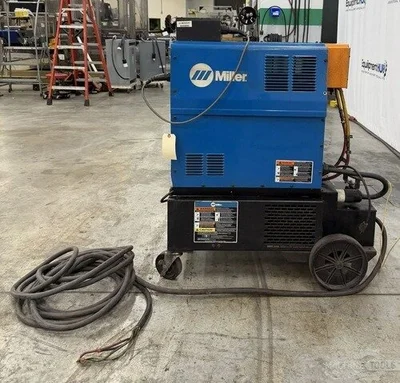

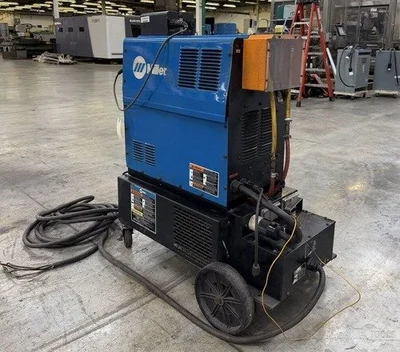

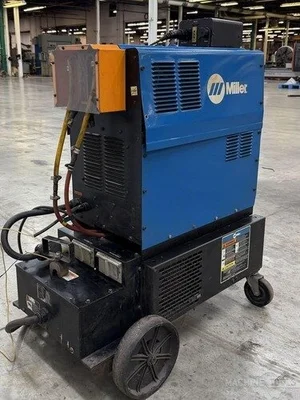

Miller Intellifire 250 Induction Heating Power Source w/ IH/TC Controller, Coolmate Cart

General Info

Stock #: 190260017
Location: Decatur, GA
Brand: Miller
Model: Intellifire 250

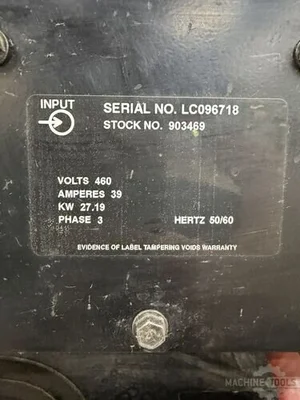

Serial #: LC096718
Approx. Shipping Weight: 400 lbs.
Approx. Shipping Dimensions: 4' L x 4' W x 4' H
Skidding Fee: $100

Specifications

Type: Induction Heating Power Source
Rated Output: 25 KW at 100% Duty Cycle
Power Adjust Range: 0-25 KW
Output Frequency: 10-50 kHz
Output: 750A (RMS), 700V (RMS)
Required Inductance: 2.5-50 µH
Input Amperage: 39A at 460V
Input KW: 27.19
Max Temperature: 1,450°F (788°C)
Applications: Preheating, Stress Relieving, Post Weld Heat Treatment (PWHT), Hydrogen Bake-Out, Shrink Fit

Equipped With

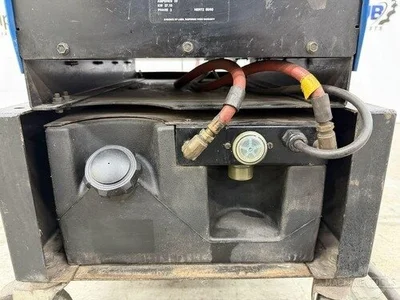

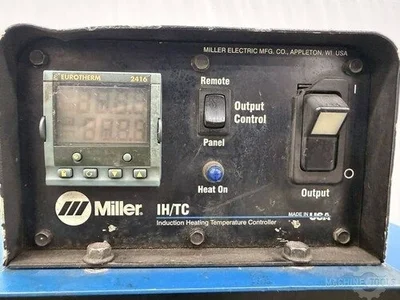

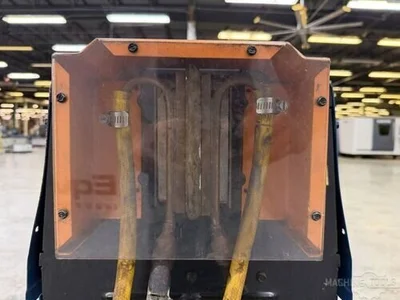

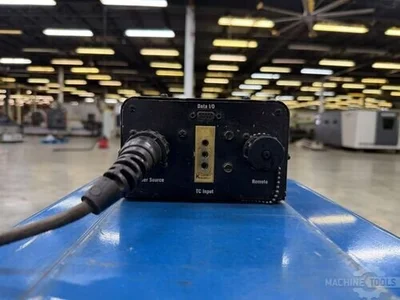

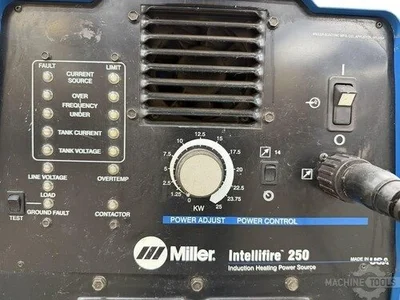

Miller IH/TC Induction Heating Temperature Controller, Eurotherm 2416 Digital Temperature Controller/Programmer, Output Control (Remote/Panel), Heat On Indicator, Data I/O Port (Serial), Type K Thermocouple Input (Chromel/Alumel), Remote Connection, Power Source Connection, Fault/Limit Indicator Panel (Current Source, Over/Under Frequency, Tank Current, Tank Voltage), Line Voltage Indicator, Load Indicator, Ground Fault Test, Overtemp Indicator, Contactor Indicator, Remote 14-Pin Connector, Power Control On/Off Switch, Output Transformer Housing with Clear Lexan Cover, Integrated Coolant System with Reservoir and Sight Glass, Switched Receptacles, Running Gear with Handle, Wheels and Casters

Additional Info
The Miller Intellifire Welder can be demoed upon request.
