Used American Extrusion International One-Pass Oven Dryer, Model 1P1036SAE – Continuous Stainless Steel Dryer Rated Up to 1,000 Lbs/Hour

Used American Extrusion International One-Pass Oven Dryer, Model 1P1036SAE Continuous Stainless Steel Dryer Rated Up to 1,000 Lbs/Hour. Designed for continuous drying applications with production rates of up to 1,000 pounds per hour, depending on product characteristics and application requirements. The unit features a single-pass design with an operating temperature of approximately 350F (50F) and an adjustable product residence time ranging from 1.5 to 8 minutes. Equipped with a Pentair, Model N360846G050 air conditioning system rated for 7777/8166 BTU per hour cooling capacity, the system operates within a temperature range of 50F to 131F and utilizes R134A refrigerant. The refrigeration system is rated for a maximum high-side pressure of 404 PSIG and a low-side pressure of 181 PSIG. Additional features include a user-friendly touchscreen HMI for process monitoring and control, stainless steel construction for durability and sanitation, and leveling feet for stable installation. Overall dimensions are approximately 250" long, 82" wide, and 94" high, 6000#. Electrical requirements are 460 volts, 3 phase, 60 hertz. Serial # 1954-1P1036SAE, Built 2014. This oven dryer was previously utilized in a snack food drying application.

Used Equipment Facts About This Machine
Manufacturer Information

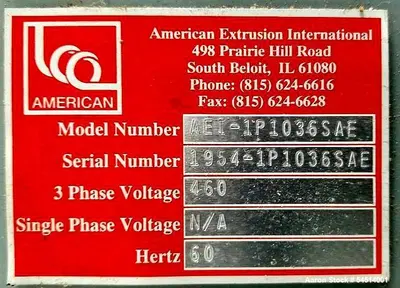

Manufacturer: American Extrusion International (AEI)
Model: 1P1036SAE
Equipment Type: One-Pass Continuous Oven Dryer
Serial Number: 1954-1P1036SAE
Year Built: 2014
Construction: Stainless Steel
Condition: Used
Previous Application: Snack Food Drying

Description
Available for sale is a used American Extrusion International Model 1P1036SAE One-Pass Oven Dryer, designed for continuous drying operations with production capacities of up to 1,000 pounds per hour, depending on product characteristics, moisture content, and process requirements.

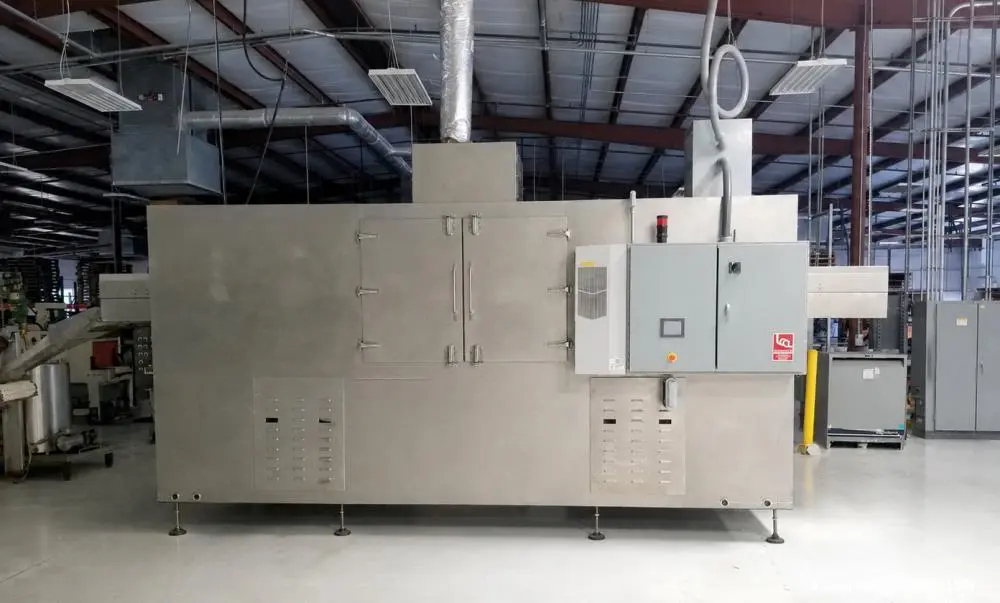

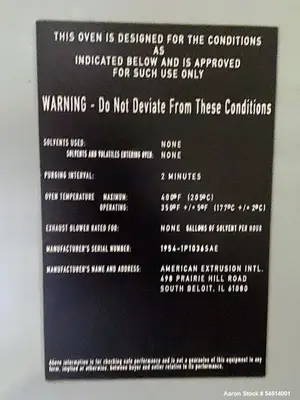

This stainless steel dryer features a single-pass conveyorized drying design, providing consistent product exposure to controlled heated air while maintaining efficient moisture removal. The system operates at approximately 350°F (±50°F) and offers an adjustable product residence time from 1.5 to 8 minutes, allowing flexibility across a variety of food, agricultural, ingredient, and specialty product drying applications.
The dryer is equipped with a Pentair N360846G050 air conditioning and environmental control system, touchscreen HMI controls, leveling feet, and integrated process monitoring capabilities. Previously utilized in a snack food manufacturing operation, this unit is suitable for expanding production capacity or replacing existing drying equipment.

Specifications
General Information

Manufacturer: American Extrusion International (AEI)
Model: 1P1036SAE
Serial Number: 1954-1P1036SAE
Year Built: 2014
Equipment Type: One-Pass Continuous Oven Dryer
Construction: Stainless Steel
Previous Application: Snack Food Drying
Condition: Used

Production Capacity

Throughput: Up to 1,000 Pounds Per Hour
Capacity Dependent on Product Characteristics
Continuous Operation Design

Drying System

Dryer Type: Single-Pass Conveyor Dryer
Operating Temperature: Approximately 350°F
Temperature Variation: ±50°F
Adjustable Product Residence Time:

Minimum: 1.5 Minutes
Maximum: 8 Minutes

Environmental Control System

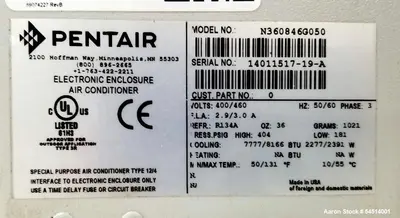

Pentair Air Conditioning Unit

Manufacturer: Pentair
Model: N360846G050

Cooling Capacity

7,777 BTU/Hour
8,166 BTU/Hour

Operating Temperature Range

Minimum Ambient Temperature: 50°F
Maximum Ambient Temperature: 131°F

Refrigeration System

Refrigerant: R134A
Maximum High Side Pressure: 404 PSIG
Maximum Low Side Pressure: 181 PSIG

Controls

Touchscreen HMI Interface
Process Monitoring System
Operator-Friendly Controls
Production Parameter Adjustment
System Diagnostics and Monitoring

Electrical Requirements

Voltage: 460 Volt
Phase: 3 Phase
Frequency: 60 Hertz

Physical Specifications
Approximate Dimensions

Length: 250 Inches
Width: 82 Inches
Height: 94 Inches

Approximate Weight

6,000 Pounds

Installation Features

Leveling Feet
Industrial Floor Mount Design

Applications

Snack food drying
Extruded snack processing
Pet food drying
Breakfast cereal production
Grain product drying
Ingredient processing
Protein product drying
Food ingredient dehydration
Specialty food manufacturing
Agricultural product drying
Nutritional product processing
Continuous thermal processing

Products This Equipment Would Be Used For

Extruded snacks
Corn snacks
Puff snacks
Breakfast cereals
Pet food products
Protein snacks
Nutritional ingredients
Grain-based products
Specialty food products
Baked snack products
Food ingredients
Dehydrated products

Frequently Asked Questions

What is the maximum production capacity of this dryer?
The dryer is designed for production rates up to 1,000 pounds per hour, depending on product characteristics and moisture content.

What type of dryer is this?
This is a continuous one-pass oven dryer designed for conveyorized product drying applications.

What temperature does the dryer operate at?
The system operates at approximately 350°F with a variation of ±50°F.

Can the product residence time be adjusted?
Yes, residence time is adjustable from approximately 1.5 to 8 minutes.

What was the previous application of this dryer?
The unit was previously utilized in a snack food drying operation.

Is the dryer constructed from stainless steel?
Yes, the system features stainless steel construction for durability and sanitary processing.

Does the dryer include process controls?
Yes, the dryer is equipped with a touchscreen HMI for process monitoring and operational control.

What air conditioning system is installed?
The unit includes a Pentair Model N360846G050 environmental control system utilizing R134A refrigerant.

What electrical service is required?
The dryer operates on 460 Volt, 3 Phase, 60 Hertz power.

What industries commonly use continuous oven dryers?
Food processing, snack food manufacturing, pet food production, agricultural processing, ingredient manufacturing, and specialty product processing industries commonly utilize continuous dryers.

Can Aaron Equipment assist with shipping and logistics?
Yes, Aaron Equipment can coordinate inspections, dismantling, rigging, loading, transportation, export preparation, and worldwide logistics services.

Does Aaron Equipment buy and sell used drying equipment?
Yes, Aaron Equipment actively purchases and sells used dryers, ovens, thermal processing systems, food processing equipment, extrusion systems, and complete manufacturing facilities worldwide.
