USED ALFA LAVAL BBRPX 714 HGV-34C

Manufacturer Information
Manufacturer: Alfa Laval
Model: BBRPX 714 HGV-34C
Equipment Type: Bactofuge Desludger Disc Centrifuge
Construction: Stainless Steel
Condition: Used
Previous Service: Dairy Processing Application

Description

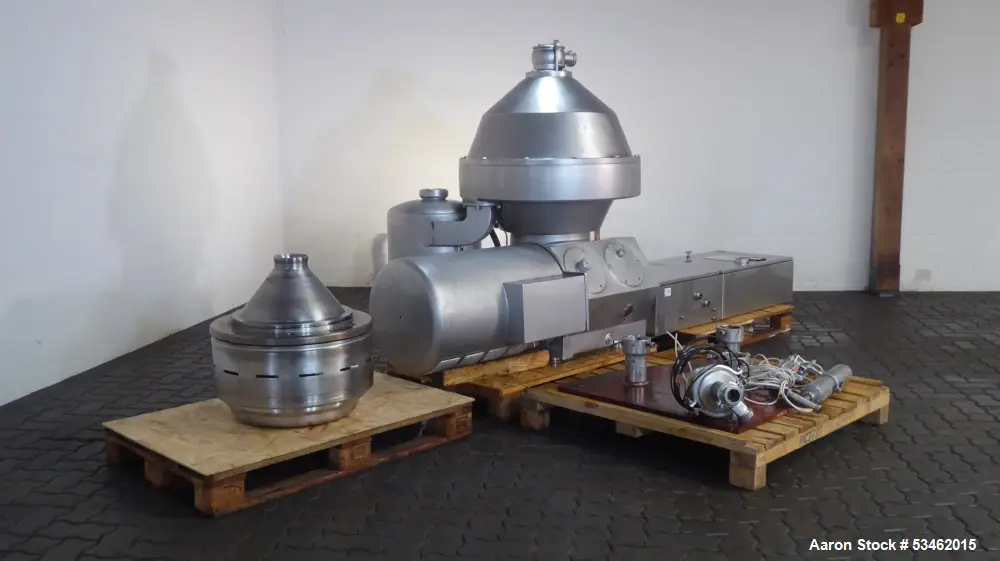

Available for sale is a used Alfa Laval BBRPX 714 HGV-34C Bactofuge Desludger Disc Centrifuge designed for high-performance bacterial removal, clarification, purification, and solids separation applications. Constructed of stainless steel and engineered for sanitary processing environments, this centrifuge is ideally suited for dairy, beverage, food processing, biotechnology, and liquid manufacturing operations.
The centrifuge features a maximum bowl speed of 5,069 RPM and is powered by a 22 kW (29.5 HP) motor. Included with the system are the centrifuge bowl, sludge tank, control panel, tooling package, and supporting infrastructure required for operation.
Previously utilized in a dairy processing facility, this Alfa Laval Bactofuge is designed to efficiently remove bacteria, spores, sediment, and fine suspended solids while maintaining product quality and process efficiency.

Specifications
General Information

Manufacturer: Alfa Laval
Model: BBRPX 714 HGV-34C
Equipment Type: Bactofuge Desludger Disc Centrifuge
Construction: Stainless Steel
Condition: Used
Previous Application: Dairy Processing

Centrifuge Specifications

Maximum Bowl Speed: 5,069 RPM
Separation Type: Disc Stack Centrifuge
Operating Mode: Continuous Clarification and Desludging
High-Efficiency Bacteria and Solids Removal

Motor Specifications

Motor Power: 22 kW
Motor Horsepower: 29.5 HP
Voltage: 380 Volt

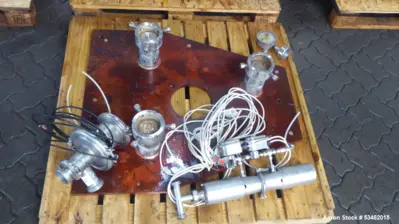

Included Components

Stainless Steel Centrifuge Bowl
Sludge Collection Tank
Control Panel
Tooling Package
Additional Supporting Infrastructure

Physical Specifications

Weight: Approximately 2.2 Metric Tonnes
Weight: Approximately 4,850 Pounds

Overall Dimensions

Length: 1,800 mm (70.9 Inches)
Width: 1,300 mm (51.2 Inches)
Height: 1,750 mm (68.9 Inches)

Applications

Milk clarification
Dairy processing
Bacteria reduction
Spore removal
Whey clarification
Cream processing
Beverage clarification
Food ingredient purification
Biotechnology processing
Fermentation processing
Liquid-solid separation
Product recovery operations

Products This Equipment Would Be Used For

Milk
Whey
Cream
Dairy concentrates
Dairy proteins
Beverage products
Fermentation broths
Nutritional ingredients
Food processing liquids
Specialty dairy products
Liquid food ingredients
Process streams

Frequently Asked Questions

What is a Bactofuge centrifuge?
A Bactofuge is a specialized disc stack centrifuge designed to remove bacteria, spores, sediment, and suspended solids from liquid products through centrifugal separation.

What is the maximum bowl speed of this unit?
The centrifuge is rated for a maximum bowl speed of 5,069 RPM.

What motor size is installed?
The unit is equipped with a 22 kW (29.5 HP) drive motor.

What voltage is required?
The centrifuge operates on 380 Volt power.

What was the previous application of this machine?
The unit was previously used in a dairy processing application.

Is the centrifuge constructed of stainless steel?
Yes, the machine features stainless steel construction suitable for sanitary processing environments.

What is included with the sale?
The sale includes the centrifuge bowl, sludge tank, control panel, tooling package, and additional supporting infrastructure.

What is the purpose of the sludge tank?
The sludge tank collects solids, sediment, and contaminants removed from the process stream during centrifuge operation.

What industries commonly use Bactofuge centrifuges?
Dairy, food processing, beverage manufacturing, biotechnology, fermentation, and liquid processing industries frequently utilize Bactofuge separators.

Can this centrifuge be used for clarification applications?
Yes, it is specifically designed for liquid clarification, purification, bacterial reduction, and solids separation.
