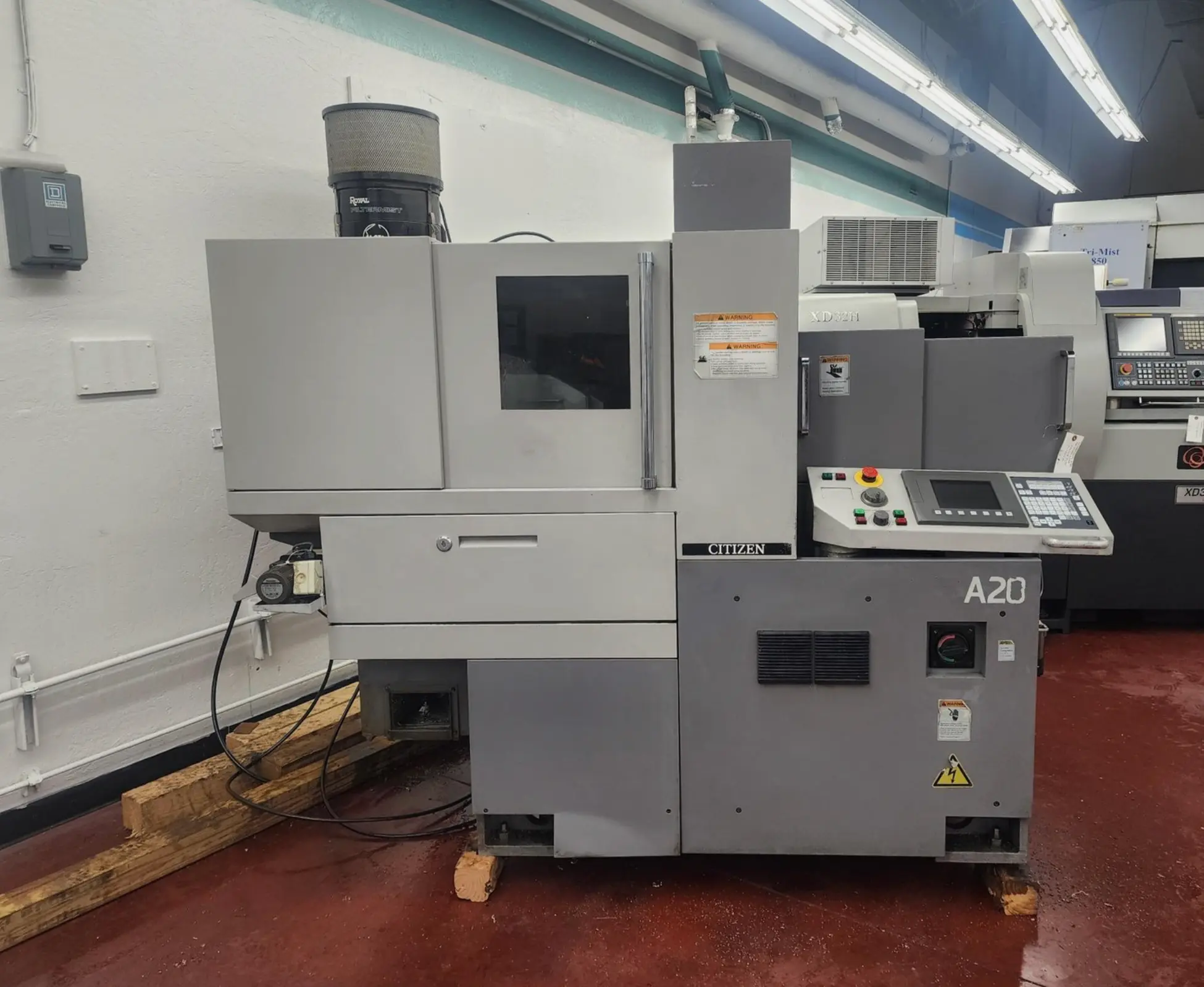

Used Swiss Type Automatic Screw Machine available. Features 20 mm spindle hole diameter, 5 hp, 8,000 RPM, and 5-axis capability.
| Spindle Hole Dia | 20 mm | 0.7874" |
| Power | 5 hp | 3.7 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 5 | 5 |
| Dimensions | 8.5' x 5.8' x 6' | 8.5' x 5.8' x 6' |
| Weight | 5,600 lbs | 5,600 lbs |
Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Diameter (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Dimensions: 8.5' x 5.8' x 6'
Machine Weight: 5,600 lbs
Machine Hours (3/24/26)
Run Time: 47,336
Cutting Time: 25,181
Cincom CNC Control
Iemca Smart 320 Magazine Barfeed
Chip Conveyor
Royal Filtermist FX-278 Mist Collector
Coolblaster High Pressure Coolant System
Parts Conveyor/Catcher
Chip Conveyor
(2) BSE107 End Face Drilling Spindles (ER11)
