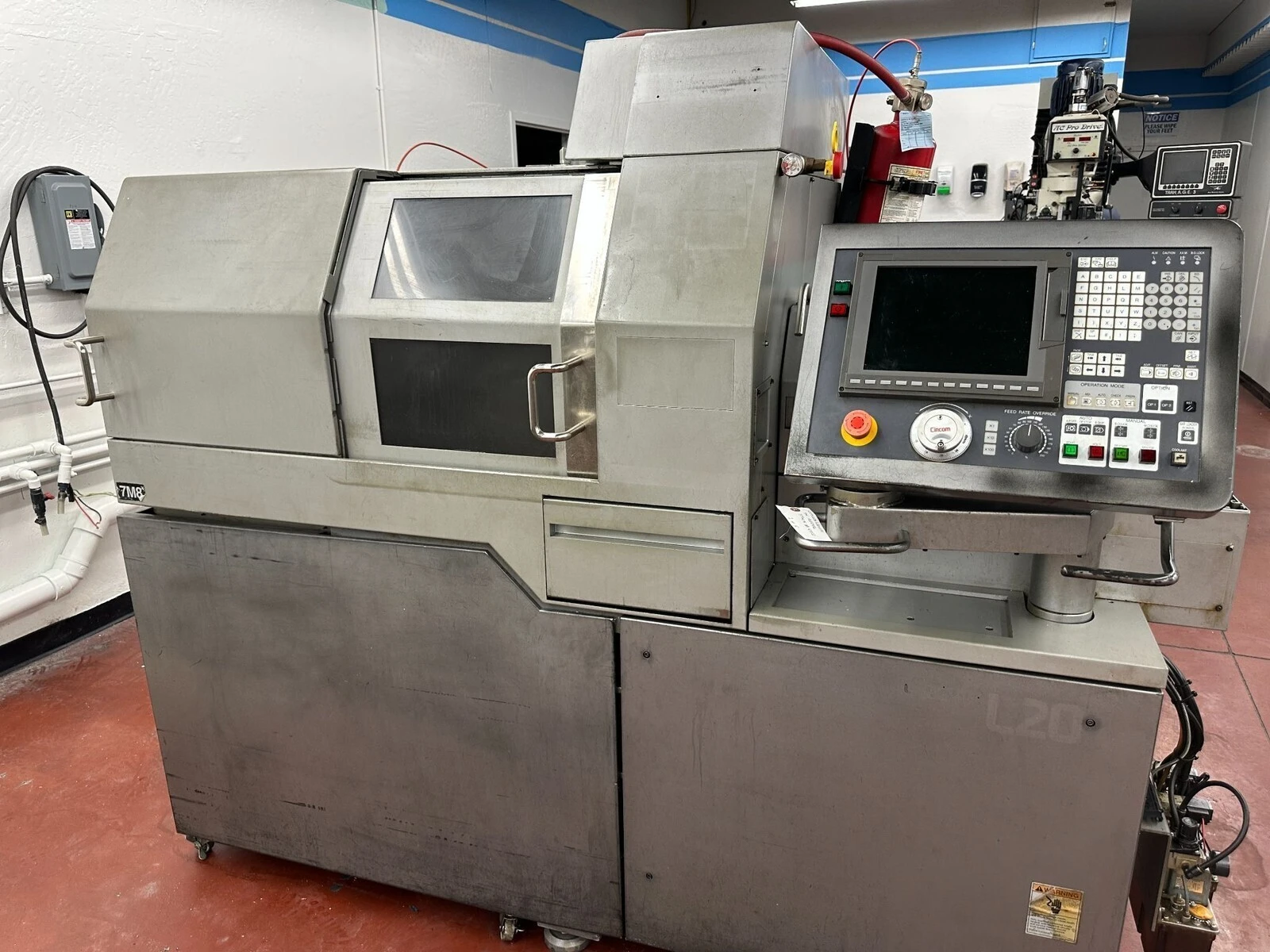

USED 2006 CITIZEN L20VIII

Used Swiss Type Automatic Screw Machine, offers 20 mm spindle hole, 3.7 kW power, and 10,000 RPM.

Main Spindle
Machining diameter: 3/4" (.79")
Machining length per one chuck: 7.87"
Drilling diameter: up to .394"
Speed: 200 - 10,000 rpm
Spindle input increment: 0.01 Full C-axis
Motor: 2.2/3.7 KW
Tooling: 1/2" (T01 5/8")
Back-work:
Chucking dia. of pick-off spindle: .79"
Pick-off spindle speed: 200 - 8,000 rpm
Pick-off spindle motor: .75/1.5 KW
Min. spindle increment: 0.01 Deg. Full C-axis
Rotary tool:
Rotary spindle speed: 200 - 5000 rpm
Rotary tool motor: 1.0 KW
Number of tools mounted: 18-21
Turning / Front ID / Back ID / Live tools: 5 / 3 / 3 / 5
Power consumption: 6 KVA

Machine Hours:
Power: 15,229
Auto Oper.: 52,965
Auto Strt.: 21,547
Ext Time1: 5,907
Ext Time2: 6,727

Mitsubishi CNC Control
2006 LNS Hydrobar Express 220 Magazine Barfeed (S/N LNS220/135402)
Mist Buster 1000 Mist Collector
4-Line Cool Blaster High Pressure Coolant System
GSE1307 - 3-Spindle Double Radial Drilling-Milling head (6 pos)
