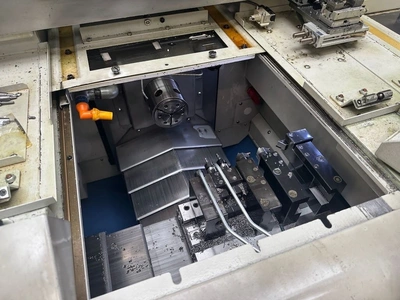

USED 2009 MIYANO GN-3000W

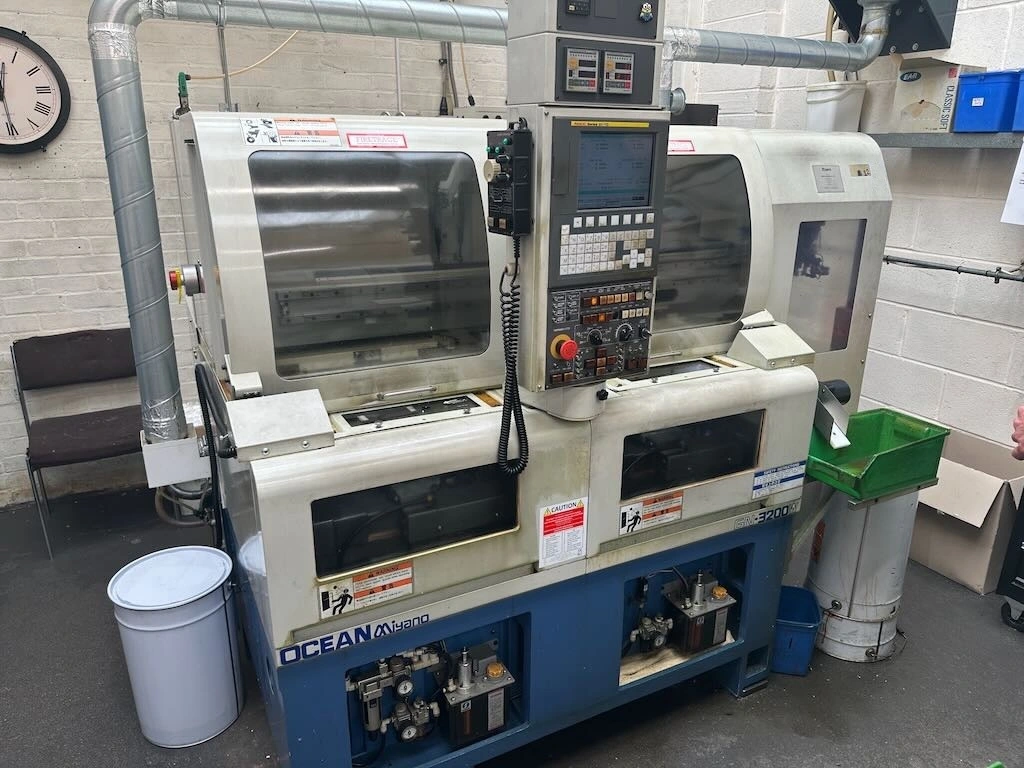

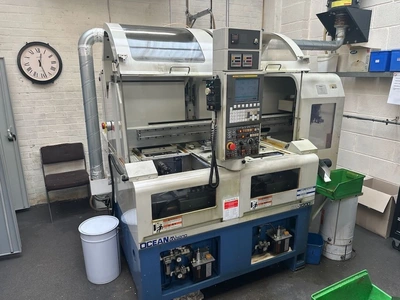

2009 Miyano GN-3200W twin-spindle CNC turning centre fitted with Fanuc 0i-TD control and high-speed gantry loader. Designed for efficient small-part production, the machine features twin spindles, twin horizontal linear turrets, automatic loading and unloading, and spindle speeds up to 8,000 rpm. The GN-3200W is a compact automated turning solution suited to repeat production environments where speed, consistency and reduced operator handling are important. Its twin-spindle configuration allows efficient machining across both spindles, while the gantry loader supports continuous part handling for production work.

Specifications
Make Miyano

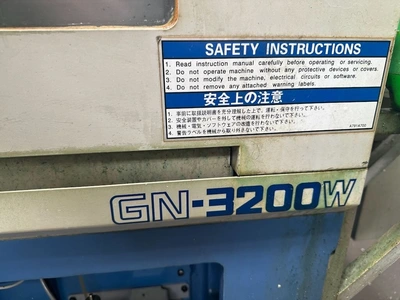

Model GN-3200W

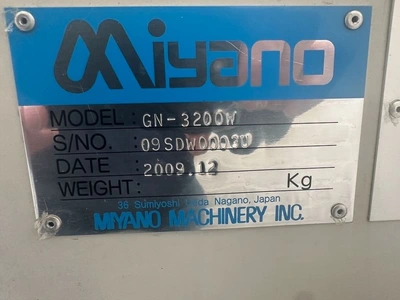

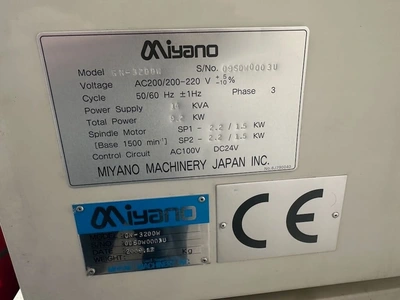

Serial Number 09SDW0003U
Year 2009
Type Twin-spindle CNC turning centre

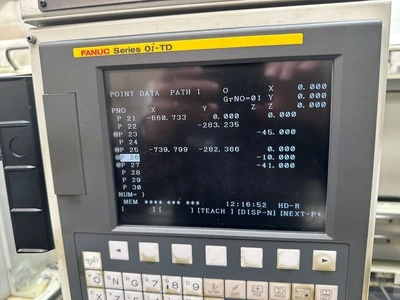

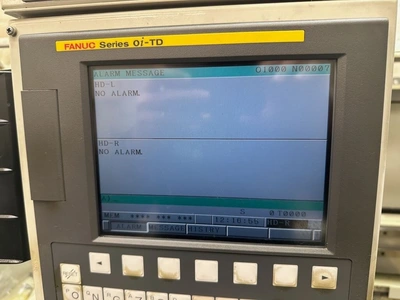

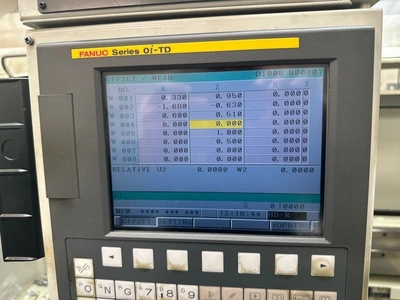

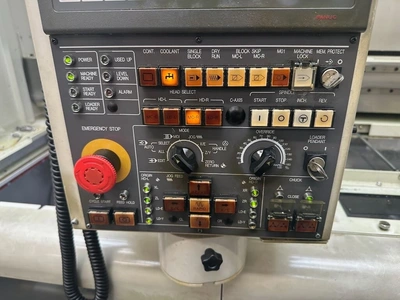

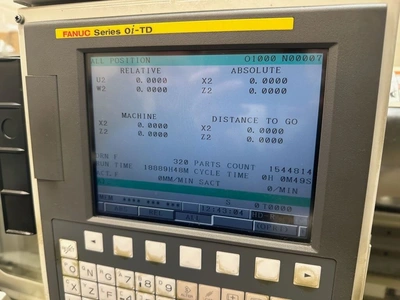

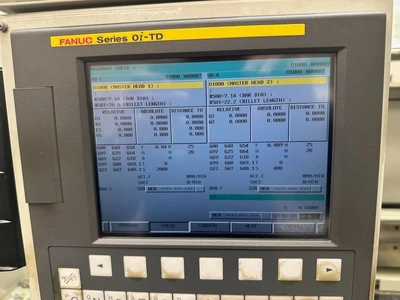

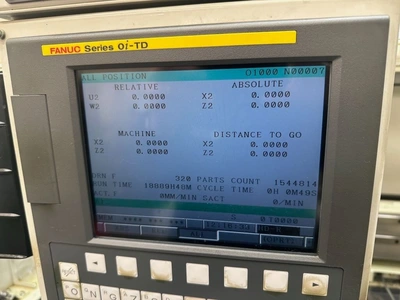

Control Fanuc 0i-TD
Recorded hours 17,285 hours

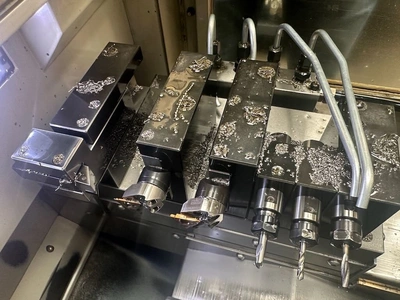

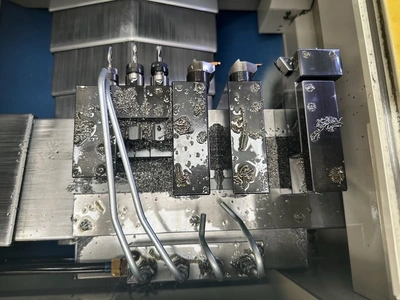

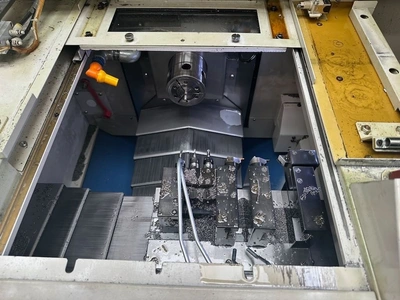

Configuration Twin horizontal linear turrets

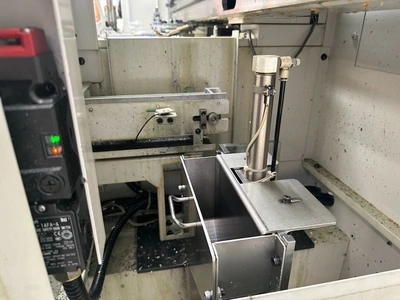

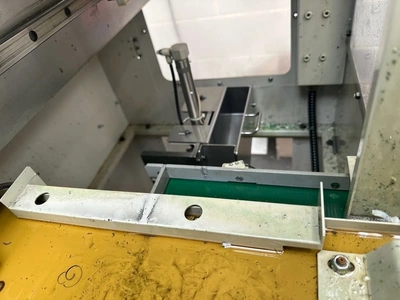

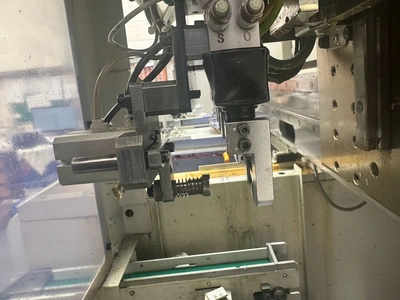

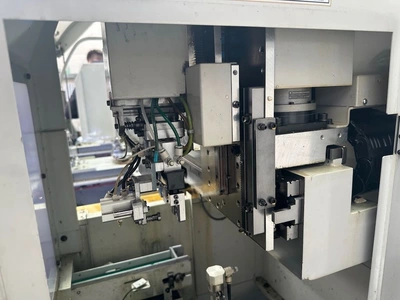

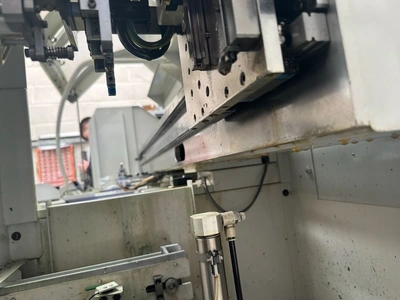

Loader High-speed gantry loader
Number of spindles 2

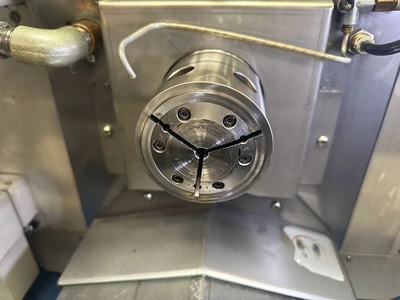

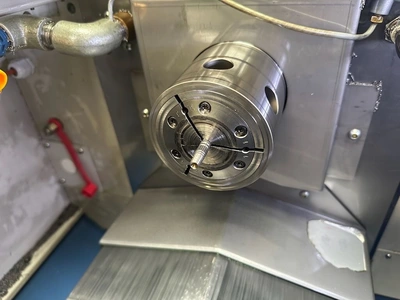

Maximum collet chuck capacity Up to 40 mm pull-type / 35 mm stationary, depending on chuck type
Maximum machining length 50 mm
Spindle speed 80 to 8,000 rpm

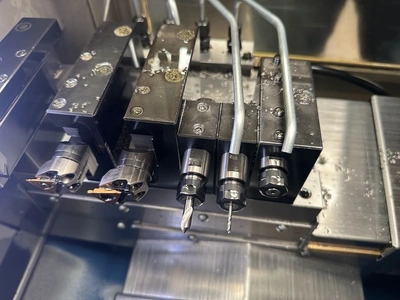

Tool stations 10 total, 5 per turret
X-axis travel 180 mm
Z-axis travel 200 mm
Machine weight Approx. 2,650 kg / 5,842 lb
Machine dimensions Approx. 190 cm x 172 cm x 187 cm high
Machine dimensions, imperial Approx. 74.8" x 67.7" x 73.6" high

Key Benefits
Twin-spindle configuration supports efficient small-part production and reduced cycle interruption.
High-speed gantry loader assists with automated loading and unloading, reducing manual handling.
Compact footprint makes the machine suitable for production lines and workshops where space is important.
Fanuc 0i-TD control is a widely recognised and well-supported CNC control system.
8,000 rpm spindle speed is well suited to fast, accurate machining of smaller turned components.

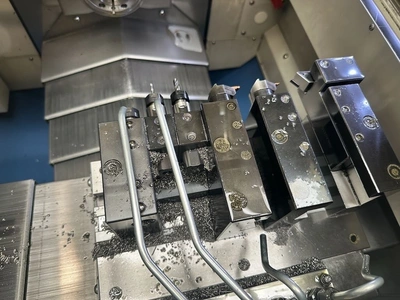

Twin horizontal linear turrets provide efficient tool access across the machining process.

Why Buy This Machine?
The Miyano GN-3200W is a strong option for subcontract machinists and production manufacturers needing automated CNC turning capacity for smaller components. Its combination of twin spindles, twin turrets and gantry loading makes it well suited to repeat batch work where consistency, cycle time and operator efficiency are key.
This machine is best suited to high-volume or repeat production turning rather than complex mill-turn work, as it does not list Y-axis or live tooling within the supplied specification.
Buyers should satisfy themselves as to condition, tooling, chucking arrangement, loader setup and operating capability prior to purchase.
