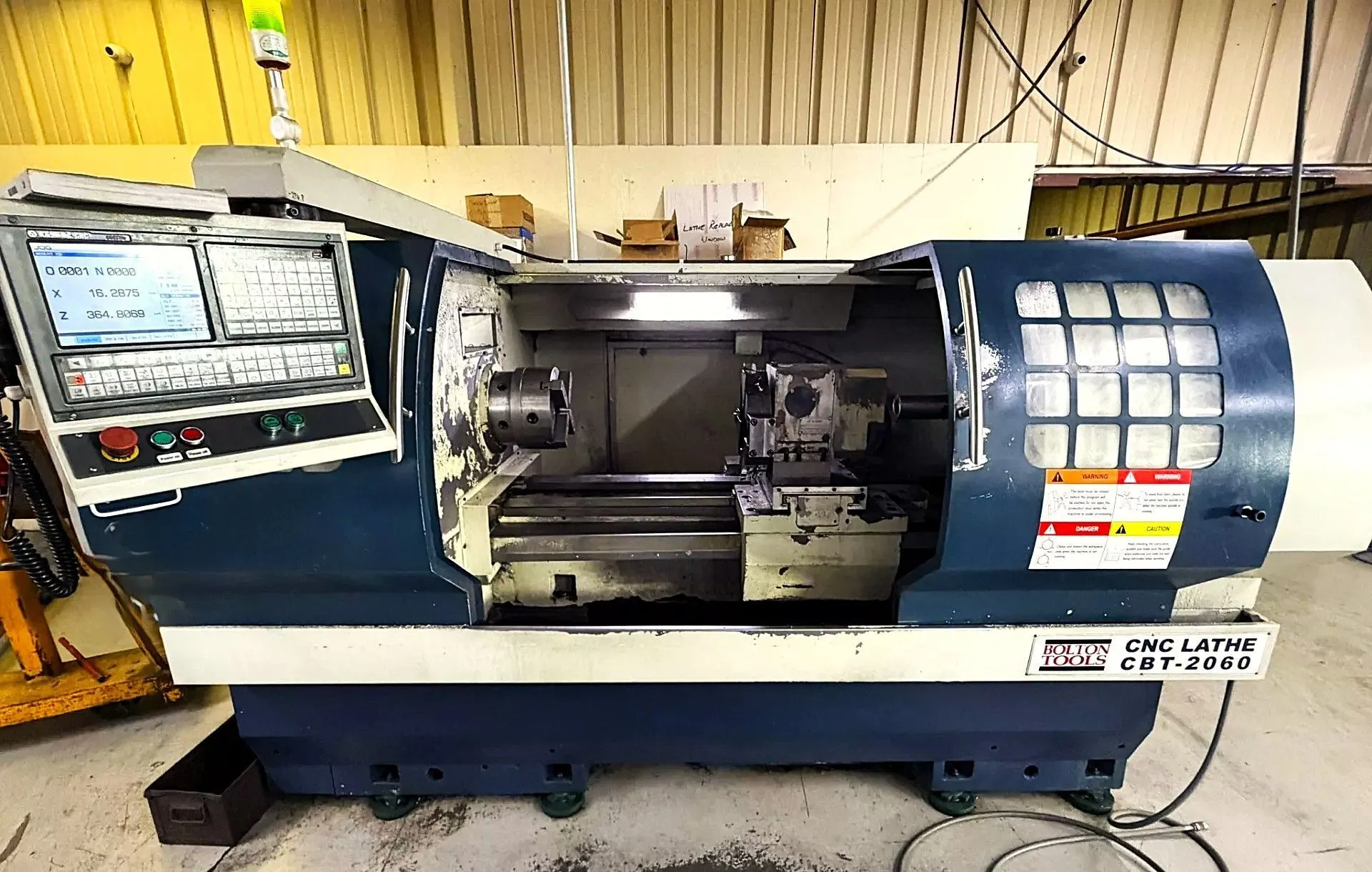

USED 2017 BOLTON CBT-2060
Overview
Description
2017 BOLTON CBT-2060 CNC Lathe available in used condition. Ideal for precision machining, this lathe offers advanced capabilities for your manufacturing needs. Contact us for more details about this reliable piece of equipment.
Specifications
| Swing | 20" | 508 mm |
|---|---|---|
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 20" | 508 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 120 in x 60 in x 60 in | 120 in x 60 in x 60 in |
| Weight | 6000 lbs | 6000 lbs |
2017 Bolton Tools CBT-2060 CNC Lathe, SN 0917446
GSK CNC980TDC Control
10" Chuck
Swing over bed: 20"
Max. turning dia. of workpiece: 10 5/8"
Max. length of workpiece: 59 1/16"
Spindle speed: 1800 RPM
Spindle bore: 3 1/4"
Spindle nose: D1-8
Max. travel for X axis: 13"
Max. travel for Z axis: 59 1/16"
Max. swing over cross slide: 10 5/8"
6 Station Automatic Turret
Width of Bed: 15 3/4"
Diameter tailstock quill: 3"
Max. travel of tailstock quill (manual): 6" M.T. #5
