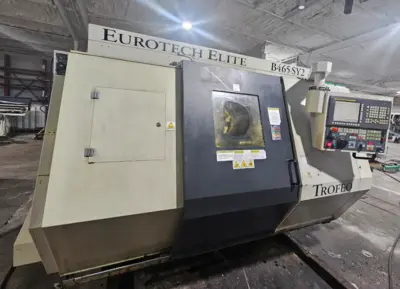

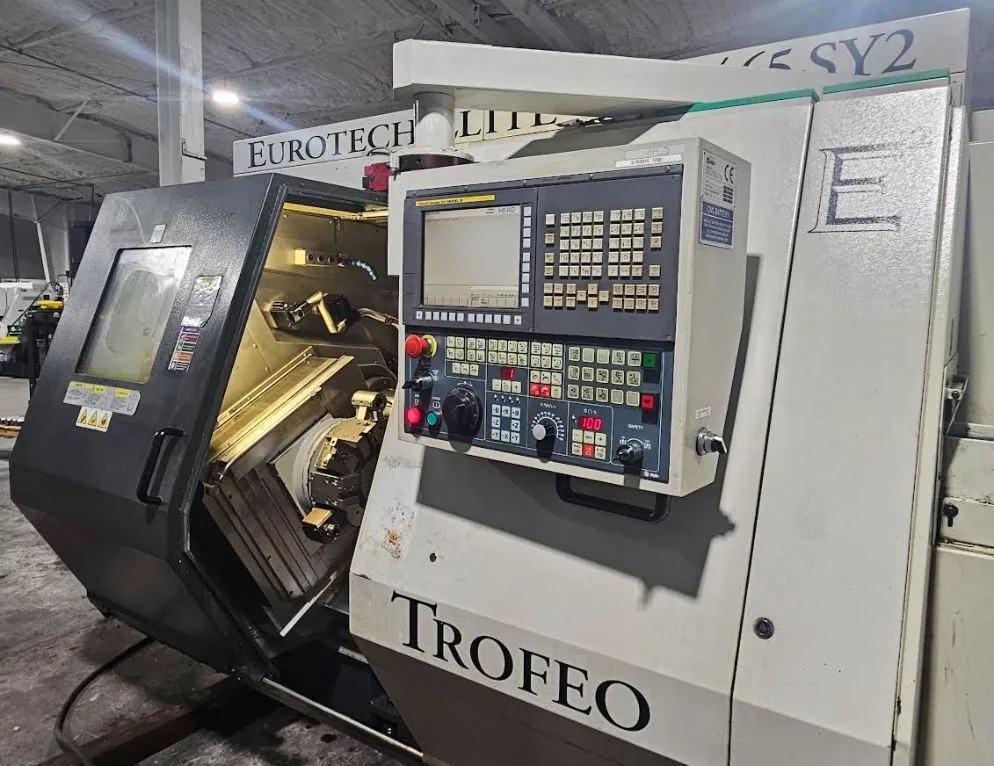

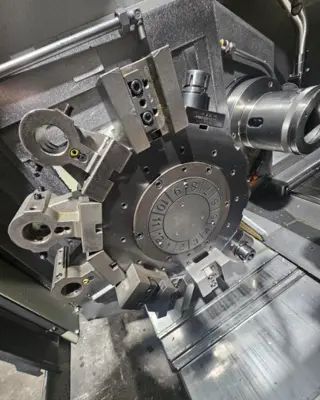

USED 2015 EUROTECH TROFEO B465-SY2

Max Bar Capacity 2.75”
Max Turning Diameter 8”
Max Swing Y - Axis Stroke (Both) 3.8”

Chuck Work
Chuck Diameter (Main & Sub Spindle) 8”
Type Hydraulic
Max Speed 4,000 RPM

Main Spindle
Draw - Tube Capacity 2.75”
Spindle Through Bore Capacity 3.03”
Spindle Speed Range (Infinitely Variable) 4,000
Variable Speed Steps Direct Drive
Spindle Motor 35 Hp
Motor Type S Series
Spindle Nose A2-6

Sub Spindle
Drawtube Capacity 1.77”
Spindle Through Bore Capacity 2.17”
Spindle Speed Range (Infinitely Variable) 5,000
Spindle Drive Motor Max Rating 15 HP
Spindle Nose A2-5
Slide Movement (B - Axis) NC Control
Slide Stroke (B - Axis) 26.37”

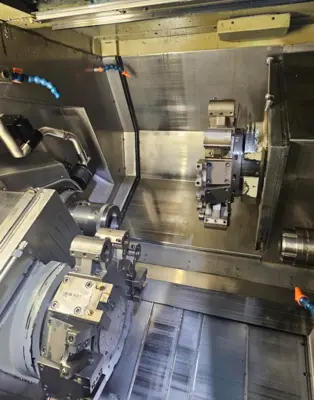

Upper Turret
Number of Tool Stations (Main Spindle) 12
Turret Indexing Time 0.01 sec./pos.
Turret Indexing Type Fanuc servo-driven bi-directional
Slide Stoke
Z - Axis Slide Stroke 24.8”
X - Axis Slide Stroke 6.7”

Lower Turret
Number of Tool Stations (Main Spindle) 12
Turret Indexing Time 0.01 sec./pos.
Turret Indexing Type Fanuc servo-driven bi-directional
Slide Stroke
Z - Axis Slide Stroke 21.26”
X - Axis Slide Stroke 6.7”

Revolving Tool Attachment Upper / Lower Turret
Number of Upper Turret Positions 12 Max
Number of Lower Turret Positions 12 Max
Driver Motor Max Rating (upper and lower turrets) AC HP 5
Speed Range (infinitely variable) 4000
Revolving Tool Axis X, C, Z & Y
Y - Axis Stroke (Both) +1.97” / -1.57”

Voltage Required 400 volt AC, 3-phase
Air Supply 80 psi @ 4CFM
Amperage Draw 120 Amp.

Machine Dimensions
Width 85”
Height 87”
Length w/ Chip Conveyor 179”
Machine Weight w/ Chip Conveyor ~ 16,314 Lbs

Chip Conveyor

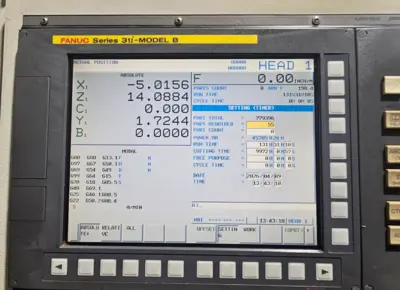

Fanuc 31-iB Control
Parts Catcher Gantry

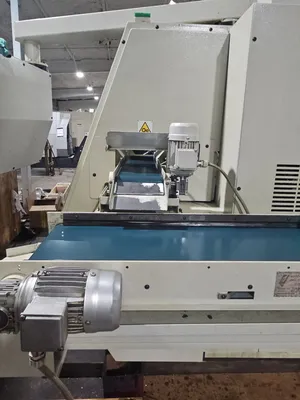

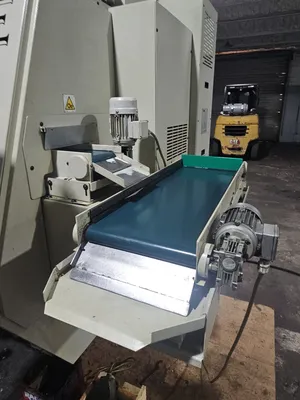

Parts Conveyor
Clearshift sub-spindle
Collet Chucks

Specifications Subject to Buyer Verification.
