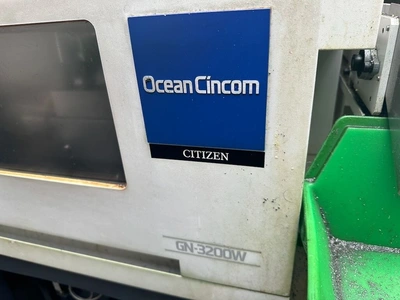

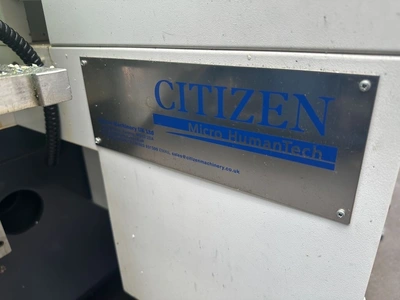

USED 2014 CITIZEN MIYANO GN-3200W-2F2

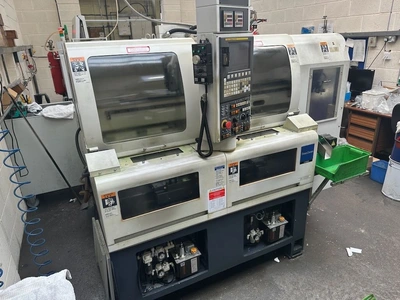

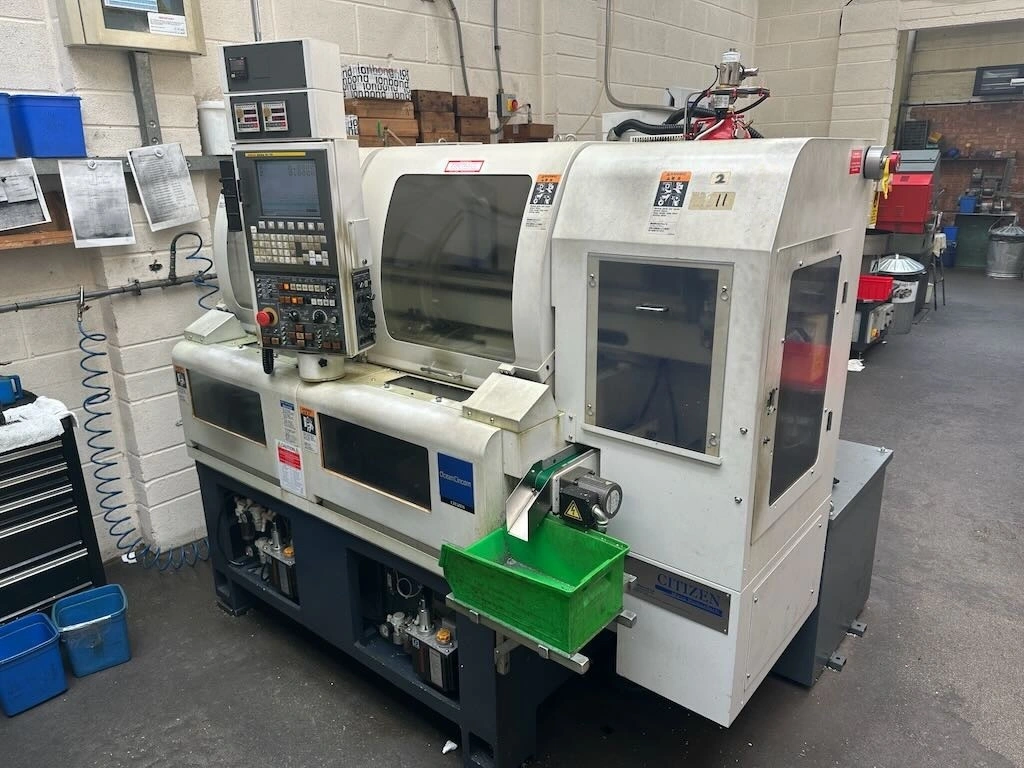

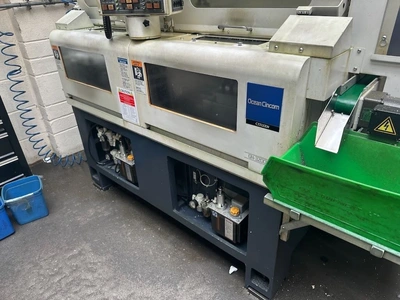

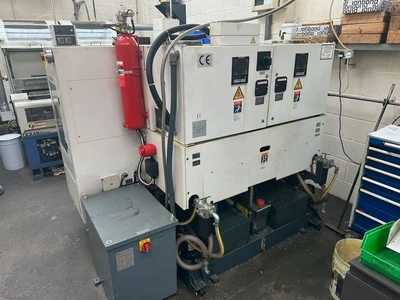

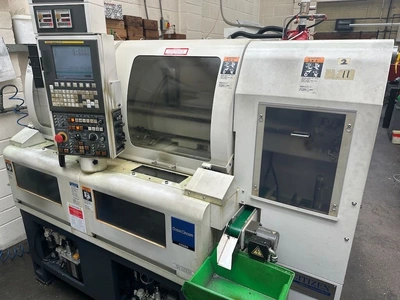

Citizen Miyano GN-3200W Twin-Spindle CNC Turning Centre
2014 Citizen Miyano GN-3200W twin-spindle CNC turning centre fitted with Fanuc 0i-TD control and high-speed gantry loader. Designed for efficient small-part production, the machine features twin spindles, twin horizontal linear turrets, automatic loading/unloading and spindle speeds up to 8,000 rpm.

The GN-3200W is well suited to repeatable batch production where a compact footprint,
automation and consistent turning accuracy are important.
With a high-speed gantry loader and twin-spindle configuration, the machine is designed to reduce handling time and support continuous production of smaller turned components.
Specifications
Specification Detail
Make Citizen Miyano
Model GN-3200W
Serial Number SDW0123U
Year 2014
Type Twin-spindle CNC turning centre

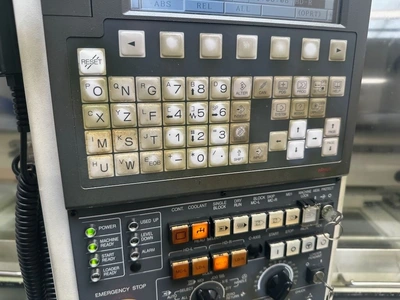

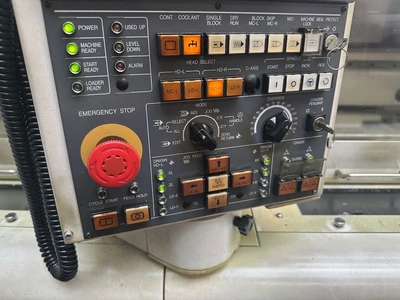

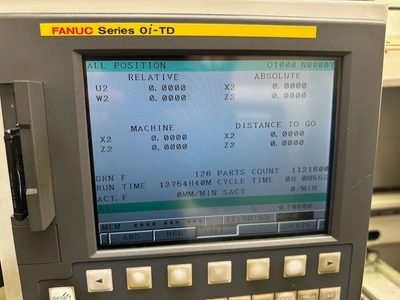

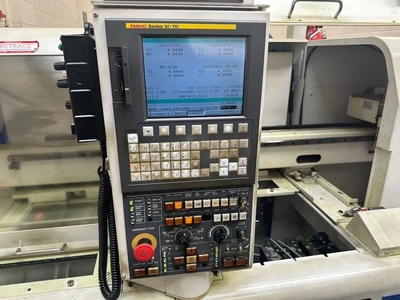

Control Fanuc 0i-TD
Recorded hours 17,285 hours

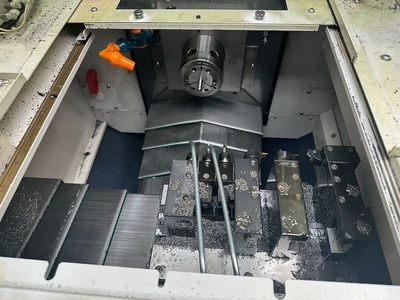

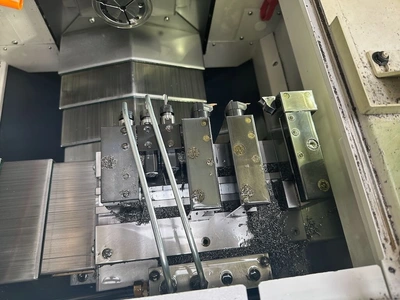

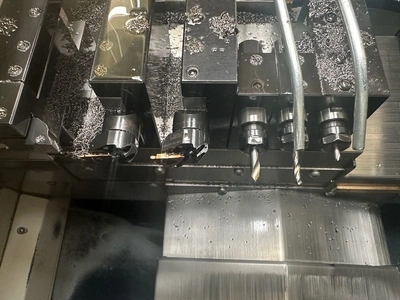

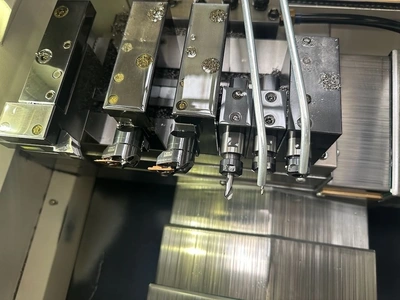

Configuration Twin horizontal linear turrets

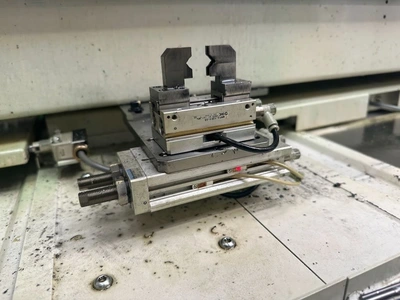

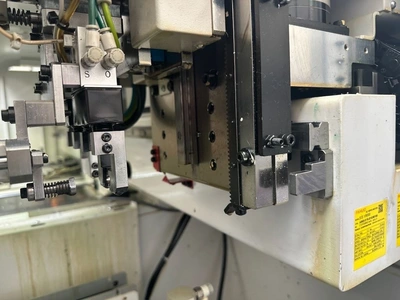

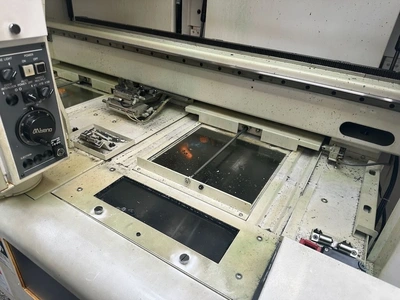

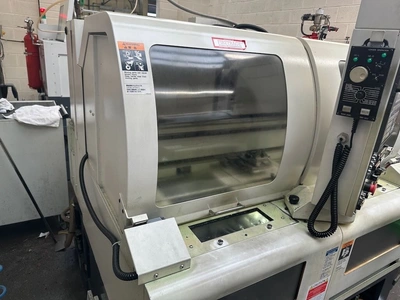

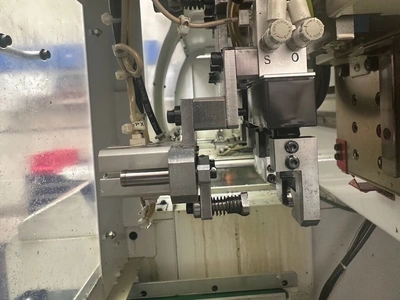

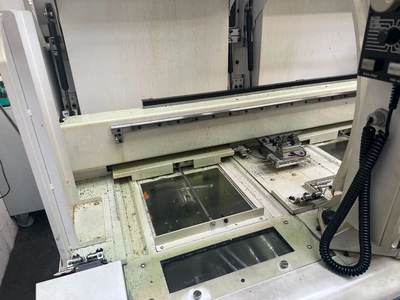

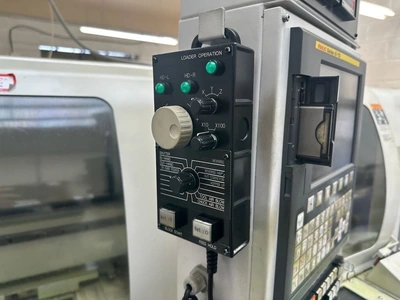

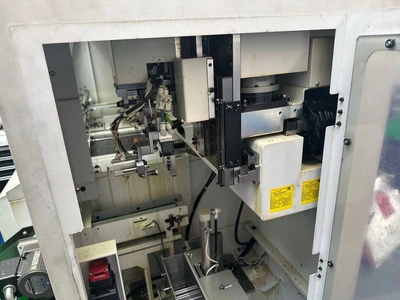

Loader High-speed gantry loader
Number of spindles 2

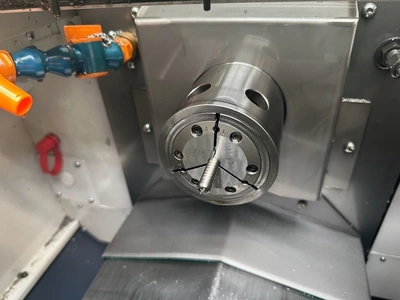

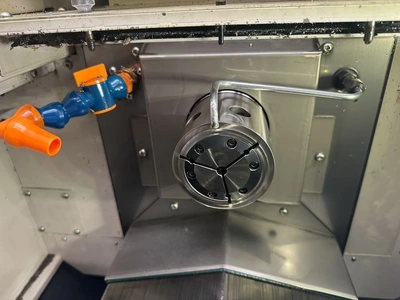

Maximum collet chuck capacity Up to 40 mm pull-type / 35 mm stationary, depending on chuck type
Maximum machining length 50 mm
Spindle speed 80 to 8,000 rpm

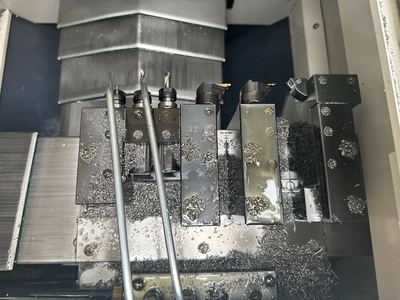

Tool stations 10 total, 5 per turret
X-axis travel 180 mm
Z-axis travel 200 mm
Machine weight Approx. 2,650 kg
Machine dimensions Approx. 190 cm x 172 cm x 187 cm high
Machine dimensions, imperial Approx. 74.8" x 67.7" x 73.6" high

Key Benefits
Twin-spindle configuration supports efficient front and back-end machining.
High-speed gantry loader helps reduce manual handling and improves production flow.
Compact machine footprint makes it suitable for workshops where floor space is limited.
Fanuc 0i-TD control is a widely recognised and well-supported CNC control system.
8,000 rpm spindle speed makes the machine suitable for fast, accurate production of smaller turned parts.
Twin horizontal linear turrets allow efficient tool access and short cycle times for suitable components.

Why Buy This Machine?
The Citizen Miyano GN-3200W is a strong choice for subcontract machining, precision engineering and production environments making smaller turned components in volume. Its twin-spindle layout and automated gantry loading are designed to improve throughput, reduce operator intervention and keep parts moving through the machining process efficiently.
This machine is particularly suited to manufacturers looking for reliable automated turning capacity without moving into a larger, more complex mill-turn platform.
Please note: buyers should satisfy themselves as to tooling, chucking arrangement, loader setup and machine condition prior to purchase.
