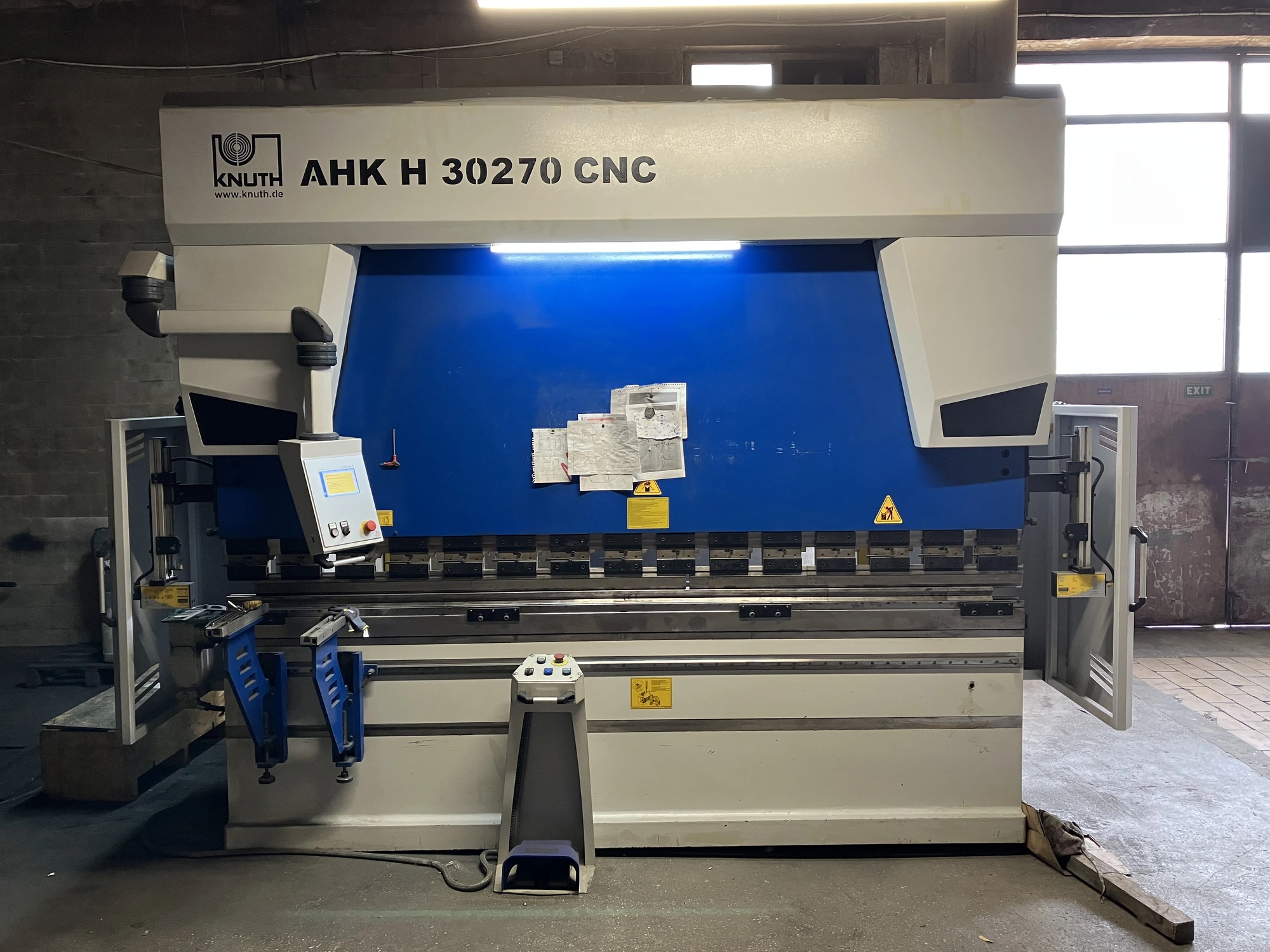

USED 2021 KNUTH AHK 30270
Overview
AHK-H series is equipped with a graphic
touchscreen control from DELEM. This
offers powerful CNC programming and full
control over the entire bending process. In
combination with the various options for
the back gauge, these press brakes can be
adapted to a wide range of requirements.
l aser-optical safety system on the
tool
Specs
WORKING AREA
Pressure force 270 t
Brake length 3.100 mm
Distance between
columns
2.600 mm
Throat depth 410 mm
Stroke 265 mm
Clear opening 485 mm
Table width 108 mm
TRAVELS
Travel in X-axis 700 mm
FEED
Bending speed 9 mm/s
Rapid feed 125 mm/s
Return speed 95 mm/s
DRIVE CAPACITY
Motor rating main drive 22 kW
MEASURES AND WEIGHTS
Hydraulic tank volume 350 l
Overall dimensions
(length x width x height)
4 m x 2 m x 2.95 m
Weight 13.000 kg
