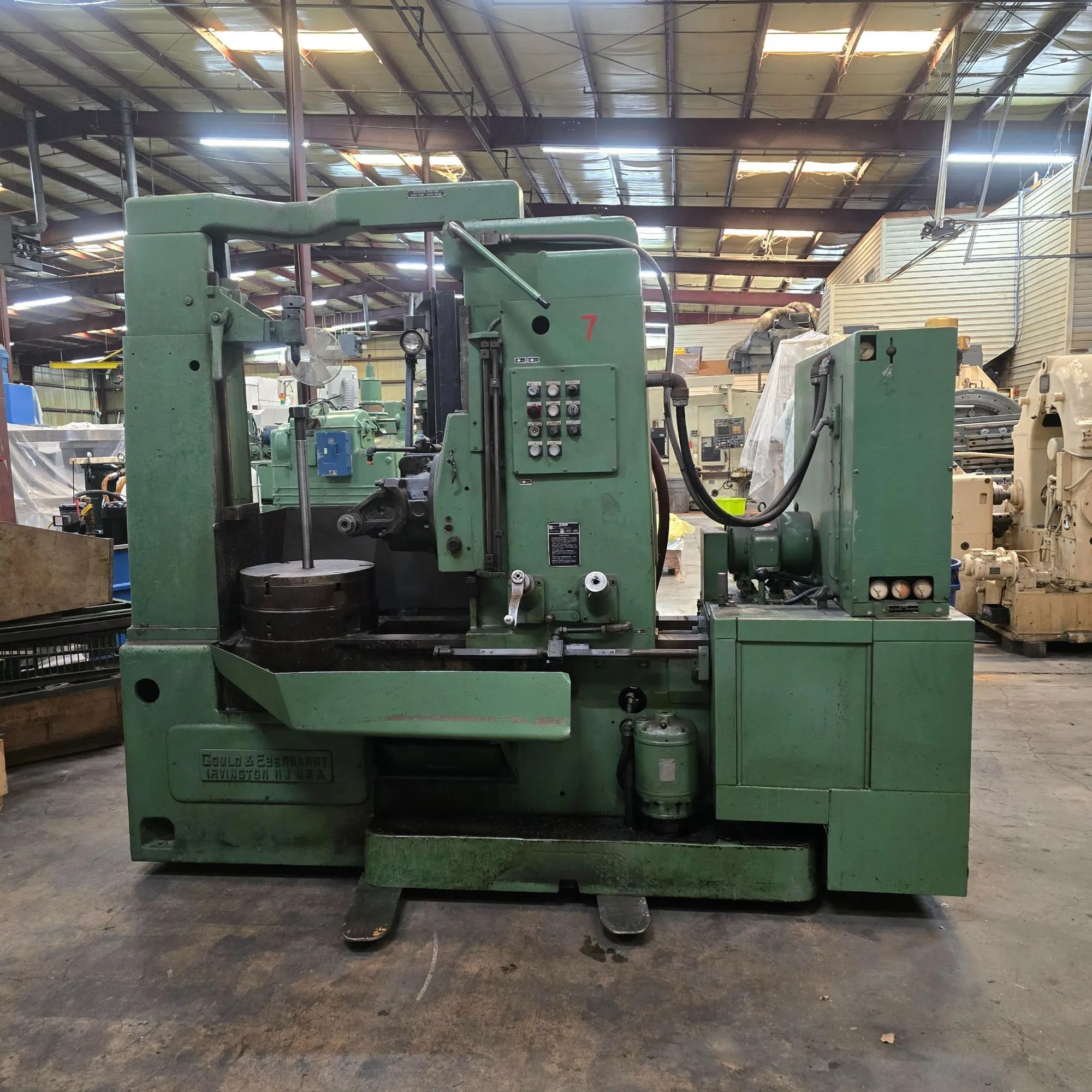

USED GOULD & EBERHARDT 24H

Gould & Eberhardt Model 24H Gear hobber with special Gooseneck head attachment , Differential , Infeed, tailstock Excellent s/n 7450A8

Gould & Eberhardt vertical gear hobber
Model 24H
s/n 7450A8
Standard Hob head w/ Special GOOSENECK ATTACHMENT

This machine is Equipped with Differential and special gooseneck
head to handle cutting straight spur & Helical
gears. Its an Excellent job shop machine . Gooseneck head allows
you to cut close to a journal with less interference due to heads
special configuration .

Machine corresponds to the following:

MACHINE SPECIFICATIONS:
* Max. DP in Steel 3 DP
* Face Capacity 16"
* Max. Diam. Spur Gear W/Support 20"
* Max. Diam. Spur Gear W/out Support 24"
* Min. Centers Work and Hob Arbors 0"
* Max. Diam. Hob 6"
* Diameter Work Table 18"
* Diameter Index Worm Gear 18"
* Distance from table to tailstock in top position  32"
* Hob Speeds 40-240 RPM
* Feed Range .03-.200"
* Main Motor 7 1/2 HP.
* Floor Space Required x Height 67" X 142" X 88"
* Approximate Weight 12,000 LBS

MACHINE IS EQUIPPED WITH THE FOLLOWING:
* Standard bevel Drive Hob Head W/ special gooseneck attachment
* Differential
* Infeed
* push button controls
* Tailstock swing away ( w/ tye-Bar) 32" max height under center
* Hob arbor 1-1/4" dia
* 20/N with 108 teeth in worm wheel
* Misc Change gears and tooling
