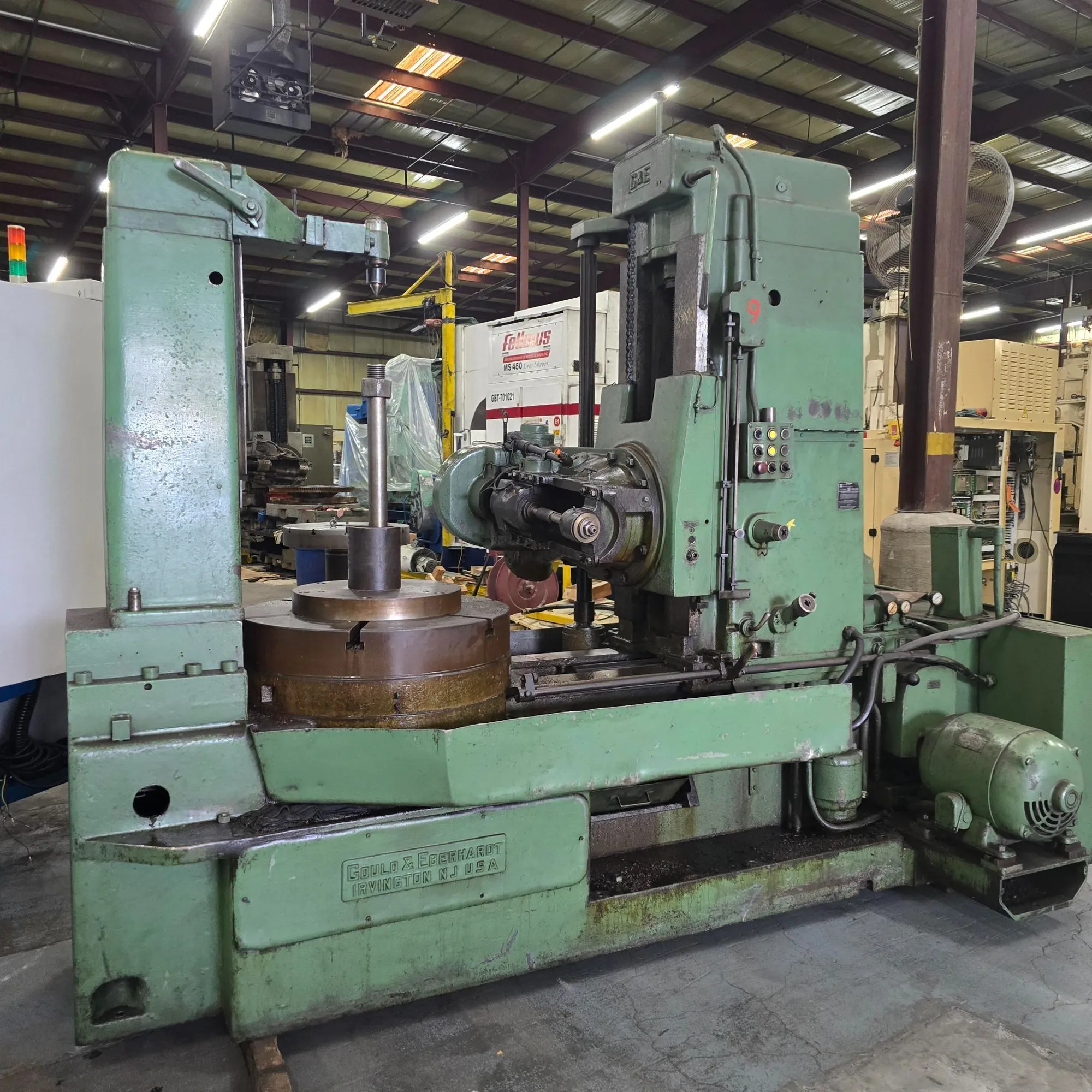

USED GOULD & EBERHARDT 48HWD

Gould & Eberhardt Heavy duty Vertical gear hobber
Model 48HWD
s/n 6250A

this heavy duty machine has been delivered to our Statesville NC
facility . the machine will be gone through , tested and repaired
as needed.

Machine catalog specs as follows :
max diameter w/ support 34"
max diameter w/o support 54"
max pitch 1.5 dp
max face capacity 28"
Min centers 0"
max diam. hob 8"
Diameter work table 32"
Max Height under tailstock 38"
Main motor 10 HP
floor space 52" x 126"
machine weight 19,000 lbs

Machine is equipped with :
Special heavy duty worm drive head (HWD)
swing away tailstock & tye-bar (38" max height tailstock)
hob arbor
Push button controls
Infeed
100 teeth in worm wheel - 20/N
Misc. change gears & tooling
Manuals

This machine is presently in our Statesville NC facility and can be
inspected under power with proper notice. Machine will be gone through.
contact rich at [email protected] to request a formal quote & Pricing
or visit our website at www.pisellient.com for more photos and other
Machines and equipment

thank you
Rich Piselli
704 609-0766
