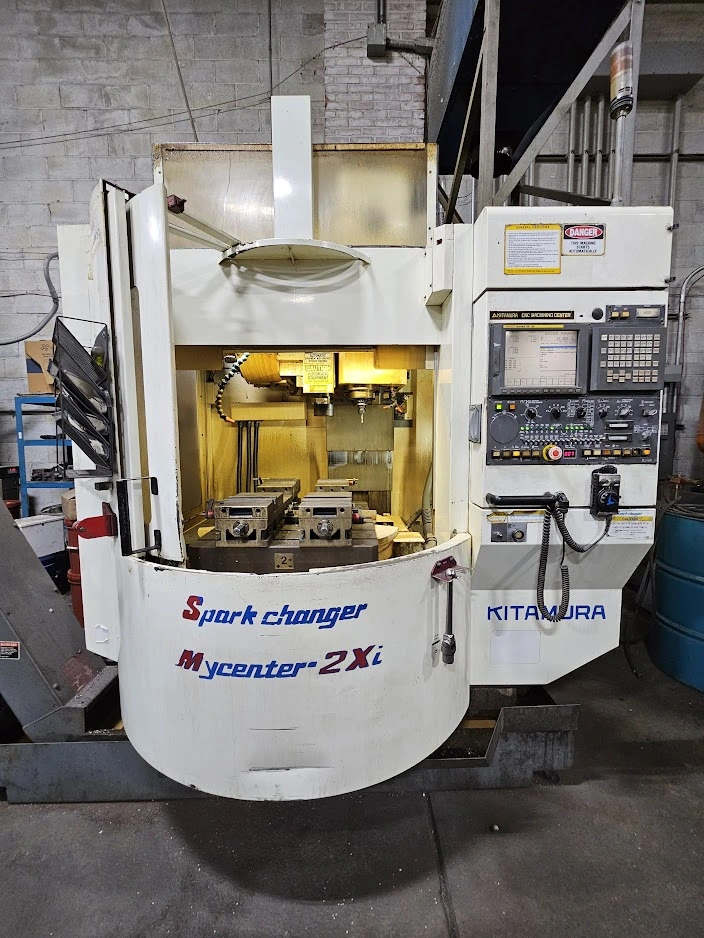

2002 Kitamura Mycenter 2Xi Sparkchanger Vertical Machining Cetner with Swing Table. Macihne is in very good condition and can be inspected under power as needed. Machine comes with the dual pallets, chip conveyor, Fanuc CNC control, and a Torit Dryflo mist collector.
| X | 20" | 508 mm |
| Y | 14" | 355.6 mm |
| Z | 15.75" | 400.05 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT40 | CAT40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 31.5" | 800.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC) | CNC (FANUC) |
| Dimensions | 98 x 82 x 105 in | 98 x 82 x 105 in |
| Weight | 9500 lbs | 9500 lbs |
• Dual pallet changer
• Travels: X 20”, Y 14”, Z 18”
• Fanuc 16iMB controls
• Max spindle speed: 15,000 rpm
• 40 taper tooling style (BT40)
• 24-position tool changer
• High-pressure through-tool coolant
• Dual pallets (pallet changer)
• Printed and electronic manuals included
• Jorgenson chip conveyor
• Torit Dryflo mist collector
• Tooling and vises not included (but we could include them)
• Has Fanuc data server board option (can connect to network)
• 200V-220V 3-phase power
• Good working condition
Fanuc CNC Control
Dual Pallets (Swing Style Table)
Chip Conveyor
Torit Dryflo Mist Collector
Has Data Server Board Option (Can Connect to Network)
Vises Not Included
