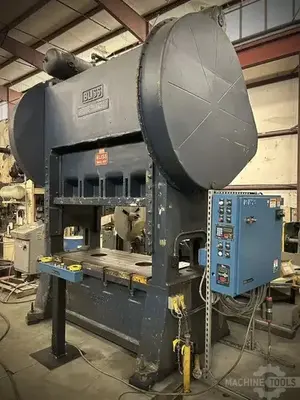

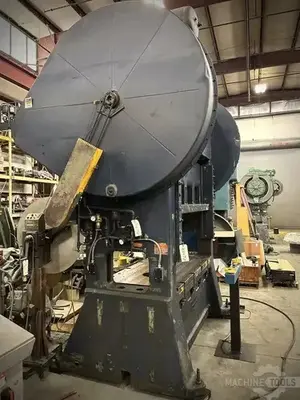

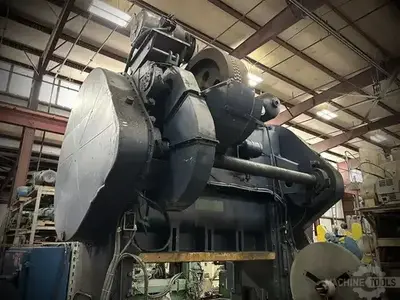

USED BLISS S2-125-72-36

125 Ton Straight Side Double Crank Press

Request a Quote
Add to Cart

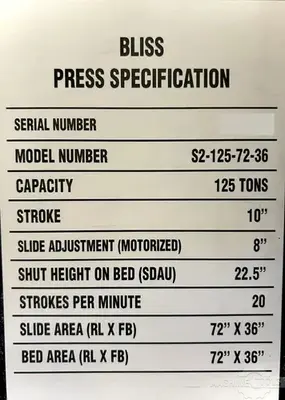

Capacity: 125 Ton

Stroke: 10"
Max Shut Height To Bed: 22.5" Sdau

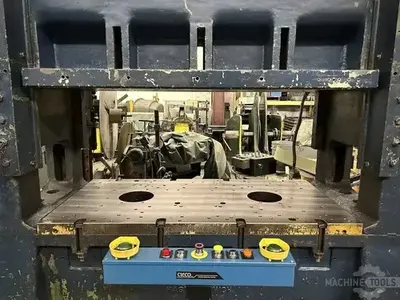

Bed Area: 72" x 36" (Rl x Fb)
Speed: 20 SPM
Slide Adjustment: 8" (Motorized)
Slide Area: 72" Rl x 36" Fb

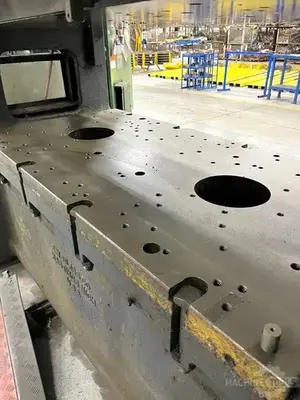

Bolster Plate: 3" x 72" Rl x 36" Fb - Solid
Distance Between Uprights: 77.5"
Distance Floor To Bed: 32"

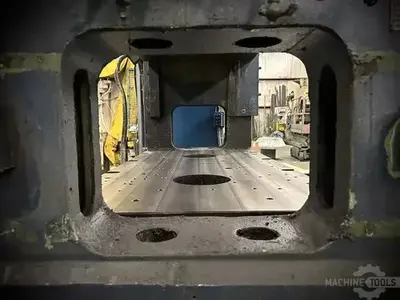

Window Size: 18.5" Wide x 15" High
Note: Ask About Reconditioned Price
Air Counterbalanced Ram: Clutch Bliss Air Clutch / Brake Combination
Floor Standing Base: Tie Rod Cast Iron Frame Construction
Twin Drive Double Back Geared with Gears in Oil
