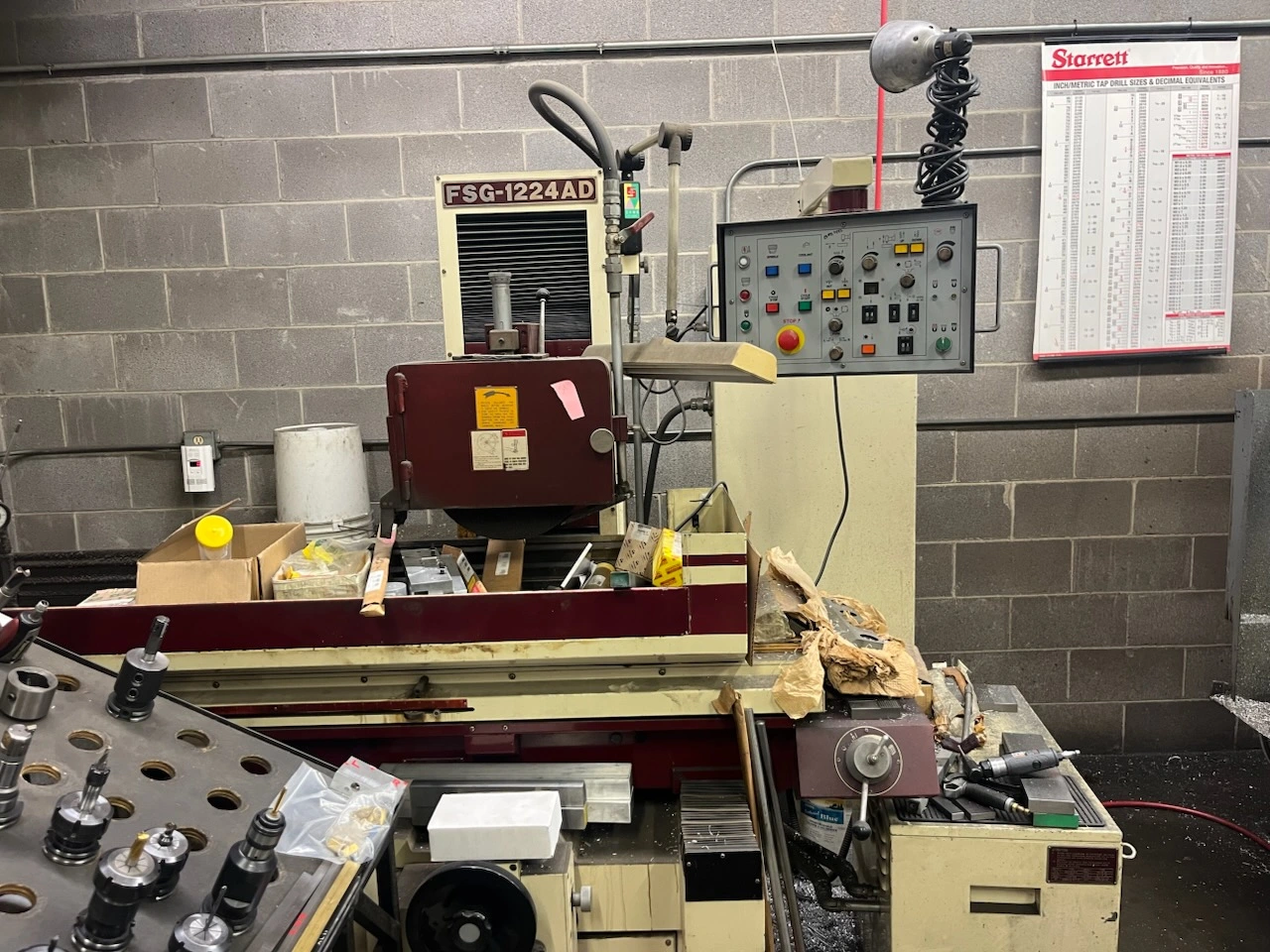

1991 Chevalier FSG 1224AD Horizontal Surface Grinder W/ Programmable Incremental Downfeed. Machine is in good shape and can be viewed under power as needed.
| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Horz/Vert | 'Horz' | 'Horz' |
Max. grinding length 24"
Max. grinding width 12"
Max. distance between spindle center to table surface 24 3/4"
Suitable magnetic chuck size 11-3/4” x 23-5/8”
Longitudinal travel: manual 25-1/2”
hydraulic 24-3/4”
table speed (infinitely variable) .16-82fpm
Crossfeed travel: manual 14-1/8”
rapid travel speed 12.5 fpm
auto. intermittent 1/8”-2”
micro feed (per graduation) 0.000050”
micro feed (per revolution) 0.005”
Wheelhead infeed: auto infeed 0.000050” - 0.002”
rapid travel 8 ipm
micro feed 0.000050”/0.0001”
handwheel (per graduation )0.0005”
handwheel (per revolution) 0.05”
Spindle & motor directly driven 60 hz/1750 rpm/5hp
Grinding wheel 14" x 2” x 5”
Packing dimension L x W x H. .97” x 68” x 87”
Machine net weight 4520 lbs.
Voltage prewired to 230v
