The LeBlond Regal 19" x 54" (including the 6E variants) is a heavy-duty, geared-head precision engine lathe
| Swing | 19" | 482.6 mm |
| Centers | 54" | 1,371.6 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 12.5" | 317.5 mm |
| Dimensions | 110" x 50" x 55" | 110" x 50" x 55" |
| Weight | 4700 | 4700 |

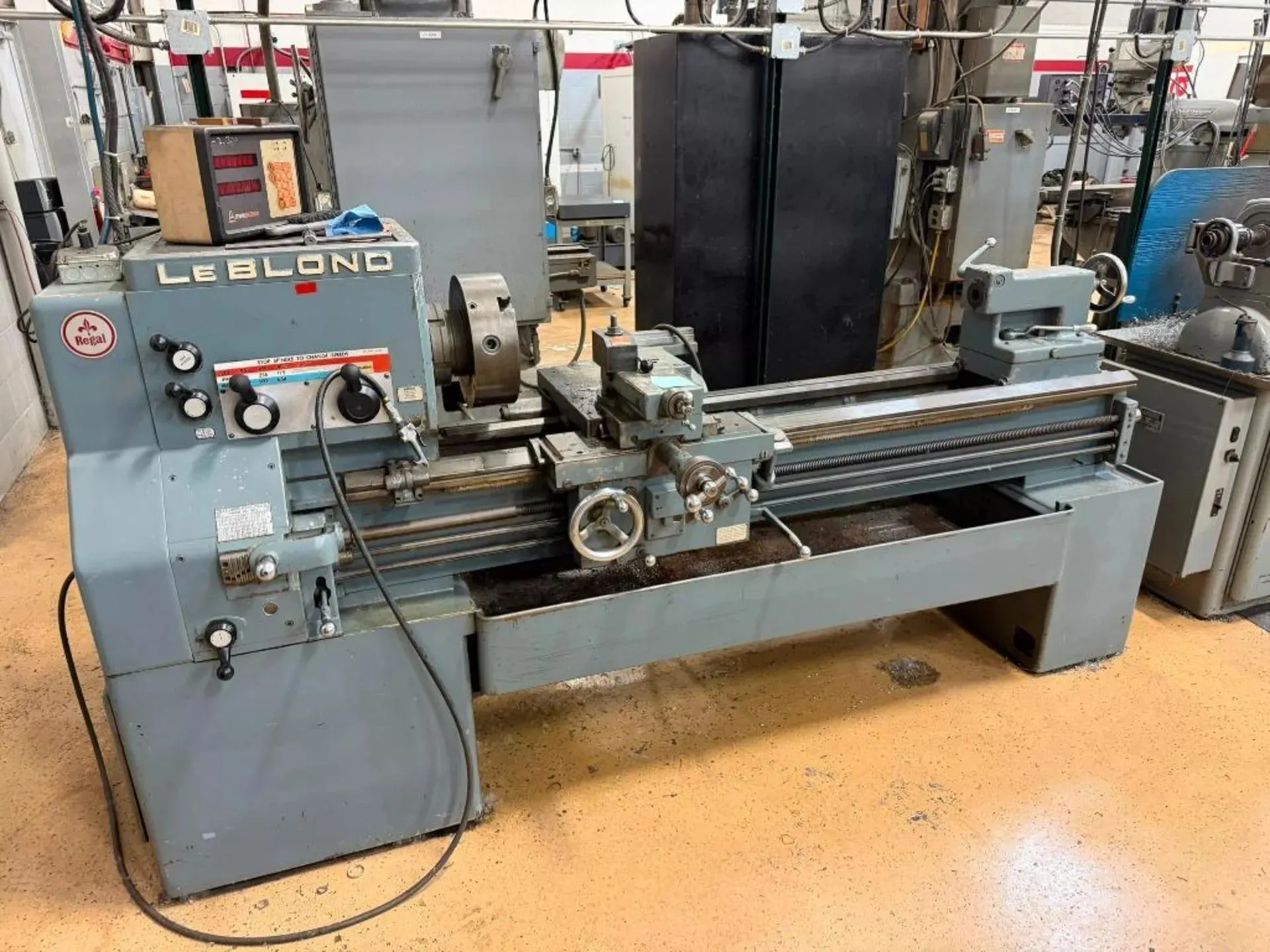

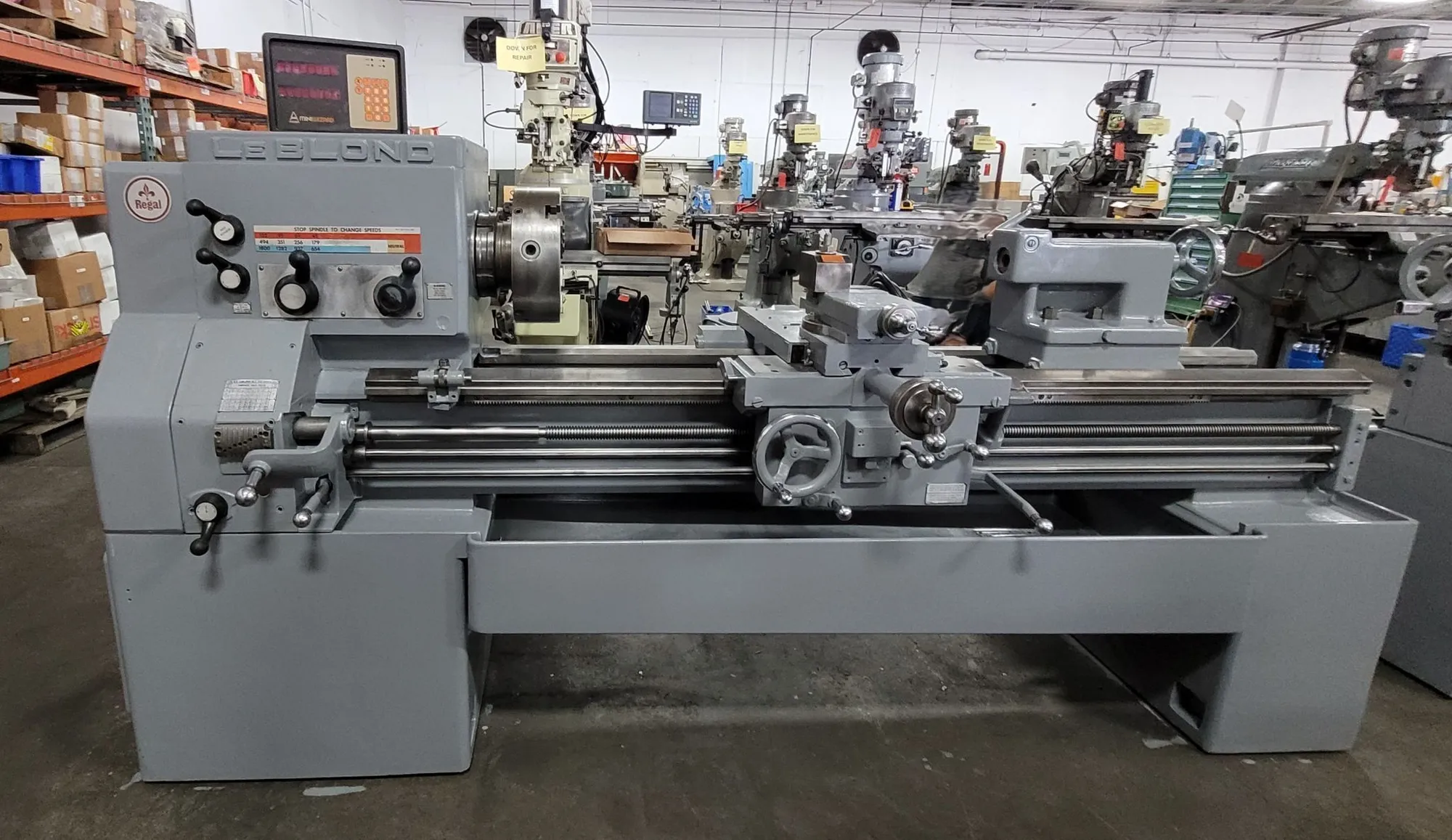

19" x 54" LeBlond Regal 6E Engine Lathe w/Anilam DRO
Capacity:
Swing Over Bed: 19" - 19.5"
Swing Over Cross Slide: 12" - 12.5"
Distance Between Centers: 54"
Bed Width: ~14.5"
Anilam 2 Axis DRO
Spindle Speeds 45-1800
L1 Spindle Mount
5 Position Reversing Drum Switch
Electric Brake and Power Unit
Coolant Pump
Hydra Trace
Micro Carriage Stop
12" 3-Jaw Chuck w/L1 Mount
Tailstock:
Spindle Taper: #4 Morse Taper (MT)
Spindle Quill Travel: 5" to 7"
Spindle Diameter: ~2.5"
