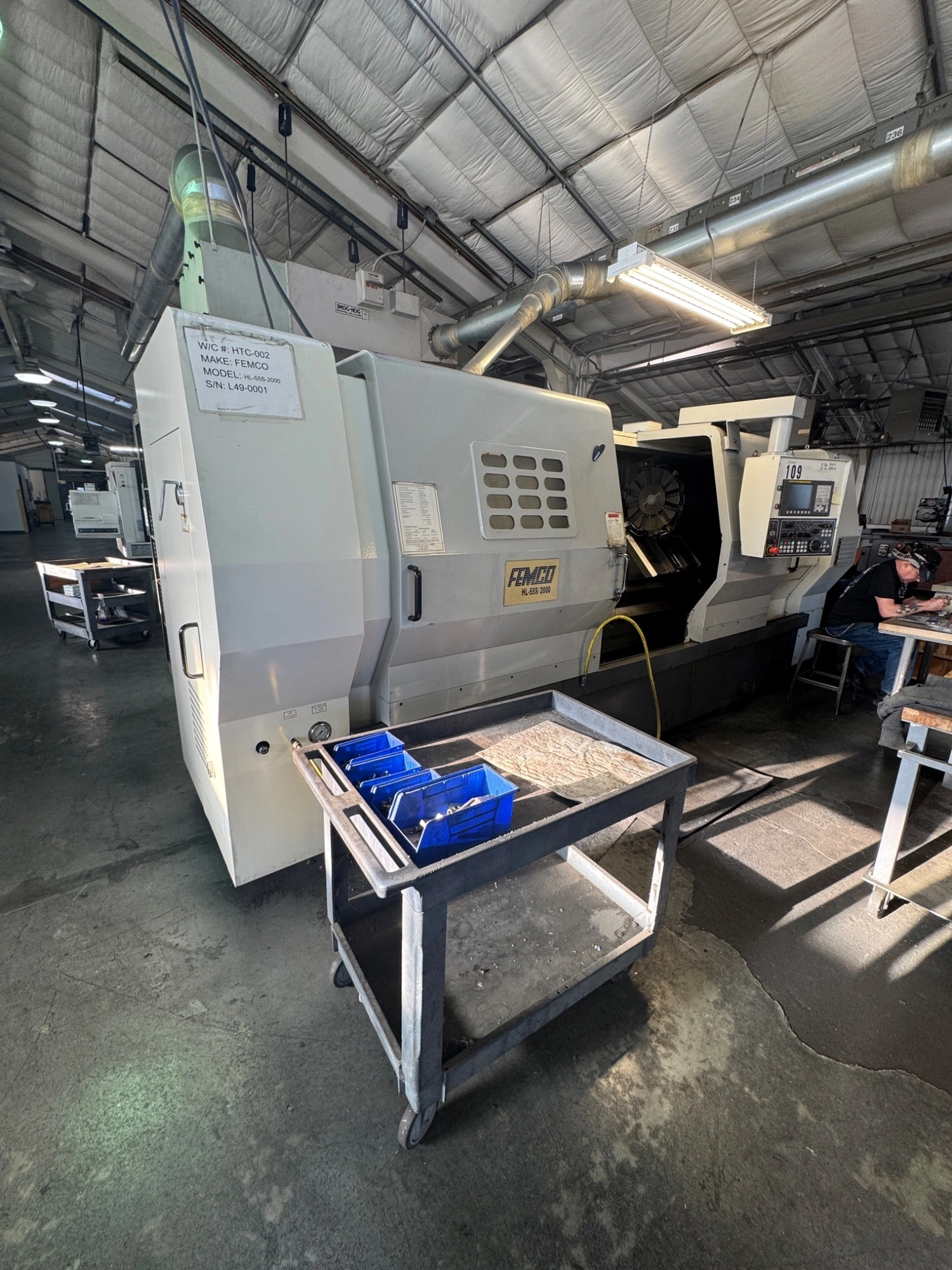

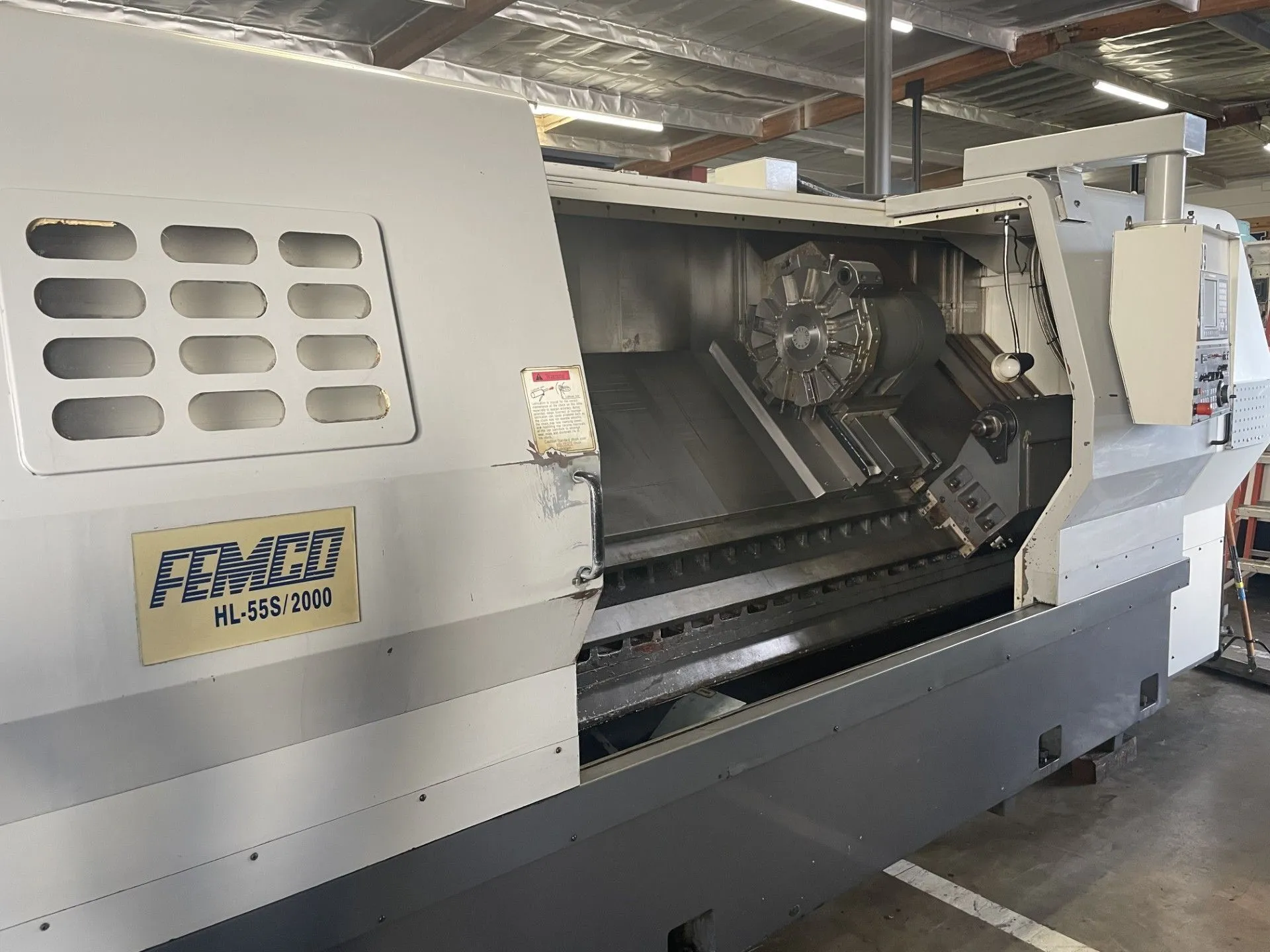

USED 2009 FEMCO HL-55/2000
Overview
Description
2009 FEMCO HL-55/2000 CNC Lathe offers 27.95" swing, 75.5" machining length, 15" chuck, and a robust 35 HP motor. Equipped with Fanuc 0i-TD control, 12-station turret, and hydraulic tailstock, it ensures precision and efficiency.
Specifications
| Swing | 27.95" | 709.93 mm |
|---|---|---|
| Machining Length | 75.5" | 1,917.7 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.53" | 115.06 mm |
| Power | 26 kW | 34.9 hp |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 24.4" | 619.76 mm |
2009 FEMCO HL-55/2000 CNC Lathe #8229
SPECIFICATIONS:
Max Turning Diameter: 25.4″
Max Turning Length: 42.12″
Max Bar Capacity: 4.65″
Swing Over Bed: 28.4″
Distance Between Centers: 75.5″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 25-2500 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5
Power Source: AC 220 V, Three Phase, 60 Hz
EQUIPPED WITH:
12-Station Turret
Fanuc 0i-TD CNC Control
15″ Hydraulic Chuck
Hydraulic Tailstock with Power Quill
Chip Pan
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
Box Way Heavy Duty Construction
