USED 2007 JET GH-1660 ZX
Overview

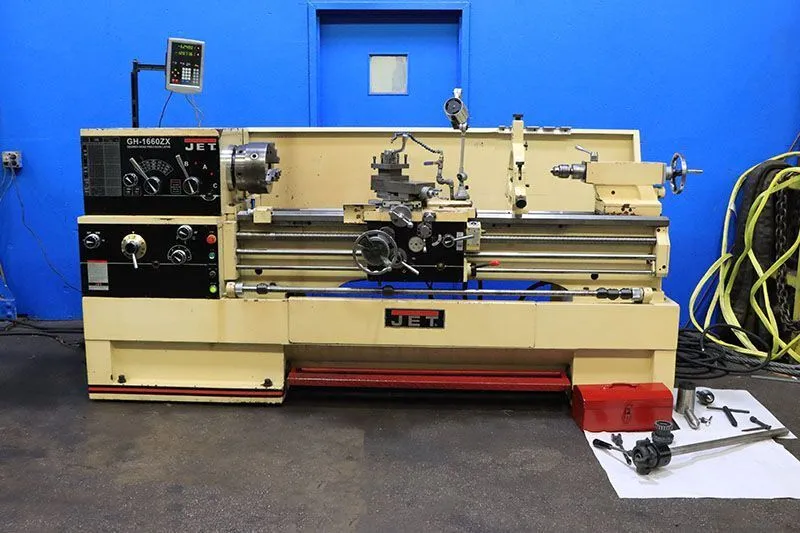

2007 JET GH-1660 ZX Gap Bed Engine Lathe, 16"/25" x 60", 3-1/8" spindle hole, 25-1,800 RPM, digital readout, inch/metric threading, removable gap, 10" 3-jaw chuck, steady rest, 5C collet closer, hardened bed ways. Located in NJ warehouse.
Specs
SWING OVER BED ........................ 16"
SWING OVER GAP ........................ 25-7/8"
SWING OVER CROSS SLIDE ................ 10"
DISTANCE BETWEEN CENTERS .............. 60"
SPINDLE HOLE .......................... 3-1/8"
SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"
WIDTH OF BED .......................... 13-3/8"
SPINDLE SPEEDS (12) ................... 25 - 1,800 RPM
FEED CHANGES, LONGITUDINAL (122) ...... .0015 - .0913 IPR
FEED CHANGES, CROSS (122) ............. .0006 - .0365 IPR
THREADS, INCH (61) .................... 1-5/8 - 72 T.P.I.
METRIC (24) ........................... .5 - 20 MM
WIDTH OF BED .......................... 13-3/8"
TAILSTOCK SPINDLE CENTER .............. #4 MORSE TAPER
TAILSTOCK SPINDLE TRAVEL .............. 5"
APPROXIMATE DIMENSIONS ................ 116" x 40" x 48"
APPROXIMATE WEIGHT .................... 5,800 LBS.
Equipped With
- NEWALL MODEL: C80 TWO AXIS DIGITAL READOUT
- REMOVABLE GAP BED
- INCH AND METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED WAYS
- 10" 3-JAW CHUCK
- STEADY REST
- 5C-LEVER TYPE COLLET CLOSER
- FOURWAY TURRET TOOLPOST
- DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK
- THREADING DIAL
- MICROMETER CARRIAGE STOP
- MULITPLE POSITION CARRIAGE STOP
- FOOTBRAKE
- SELF-CONTAINED COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD
- 7-1/2 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
