| Swing | 15" | 381 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 0 RPM | 0 RPM |
| Swing Over Cross Slide | 8.75" | 222.25 mm |

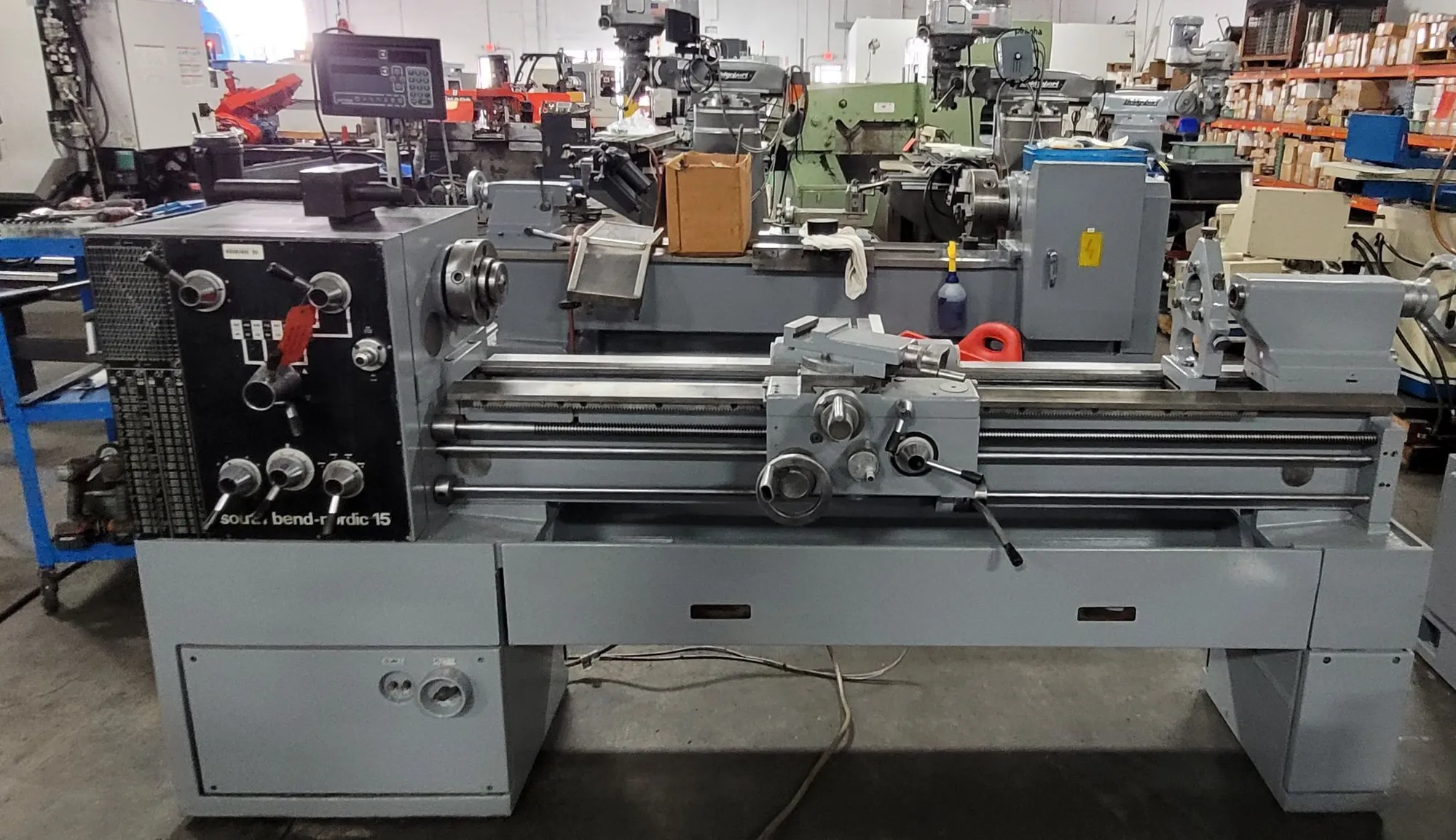

South Bend Nordic 15 Engine Lathe 15x60
USED
Serial Number: DN15770430N30
Swing over Bed: 15”
Swing over Cross Slide: 8-3/4”
Distance between Centers: 60”
Spindle Bore: 2”
D1-6 camlock spindle nose
Spindle Taper: 6MT
Newall DP700 2-axis DRO
Steady Rest
7.5 HP motor
40-2000 RPM spindle
16 Standard Speed changes
Longitudinal feeds: 54 ranges (typically from 0.0025 to 0.152 inches per revolution)
Cross feeds: 54 ranges
Thread changes (Inch): 54 variations (1-5/8 to 96 T.P.I.)
Thread changes (Metric): 41 variations
Tailstock Taper: 4MT
Quill Travel: 6”
Specs subject to verification.
