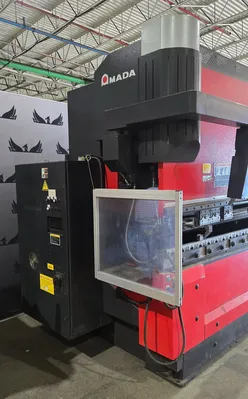

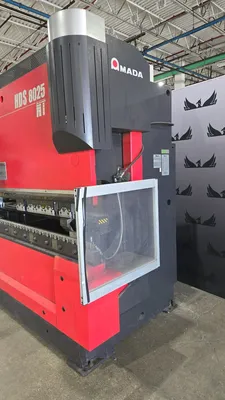

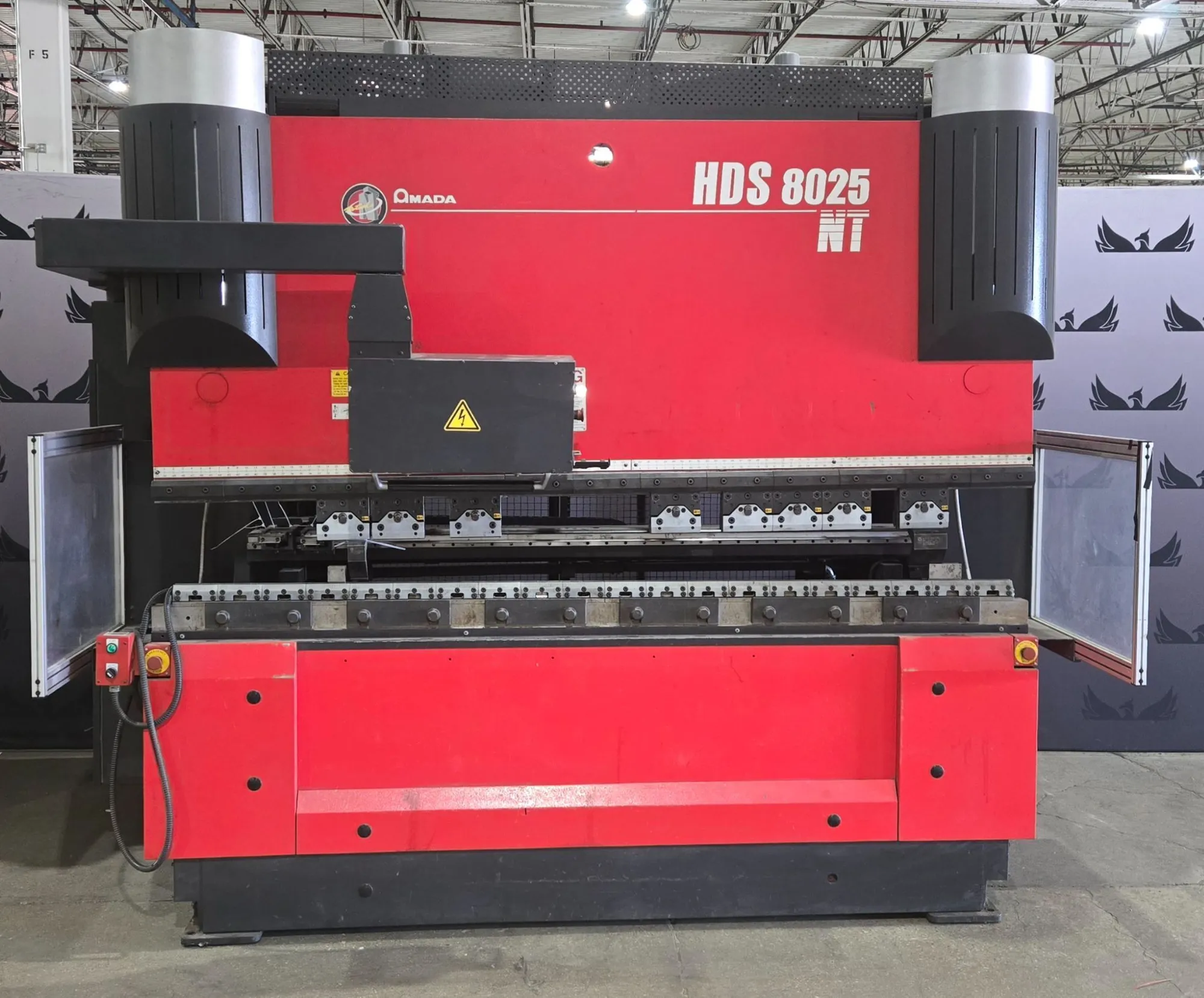

USED 2008 AMADA HDS-8025NT
Overview
This listing is for a USED Amada HDS-8025NT. It provides CNC-controlled sheet metal bending using an 80 ton hydraulic press brake system with a 102.4 inch bed length and 100.4 inch maximum bending length, equipped with an AMNC control interface and supporting servo-driven axis positioning and included tooling components for fabrication operations.

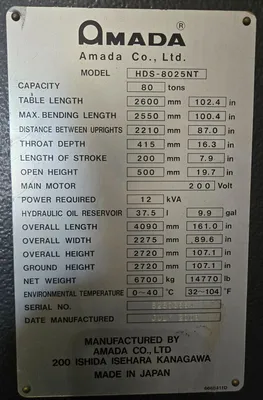

Specs
Manufacturer: Amada
Model: HDS-8025NT
Condition: USED
YOM: 2008
Equipment Type: CNC Hydraulic Press Brake
Capacity: 80 tons
Table Length: 2600 mm (102.4 in)
Max Bending Length: 2550 mm (100.4 in)
Distance Between Uprights: 2210 mm (87.0 in)
Throat Depth: 415 mm (16.3 in)
Stroke Length: 200 mm (7.9 in)
Open Height: 500 mm (19.7 in)
Main Motor Voltage: 200 V
Power Requirement: 12 kVA
Hydraulic Oil Reservoir: 37.5 L (9.9 gal)
Overall Dimensions:
Length: 4090 mm (161.0 in)
Width: 2275 mm (89.6 in)
Height: 2720 mm (107.1 in)
Net Weight: 6700 kg (14770 lb)
Operating Temperature Range: 0–40 °C (32–104 °F)

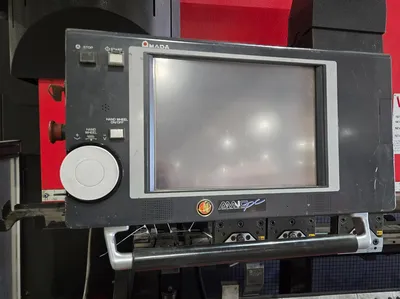

Control System: AMNC

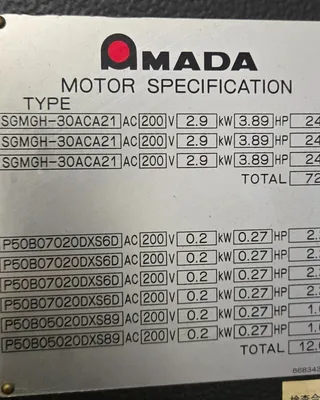

Servo Motors:
Model: SGMGH-30ACA21
Quantity: Multiple (axis motors)
Power Rating: 2.9 kW (3.89 HP each)
Voltage: 200 V AC
Auxiliary Motors:
Model: P50B07020DXS6D / P50B05020DXS89
Power Rating: 0.2 kW (0.27 HP each)
Voltage: 200 V AC

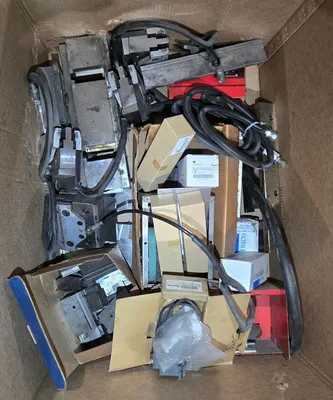

Included Components:

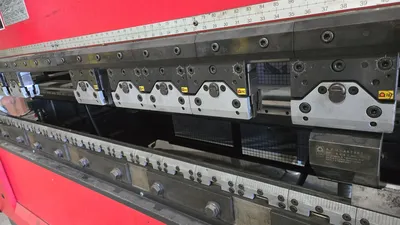

Assorted Tooling and Components
