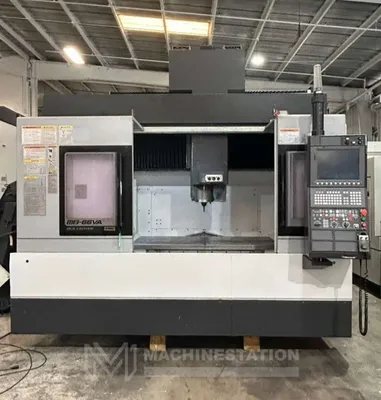

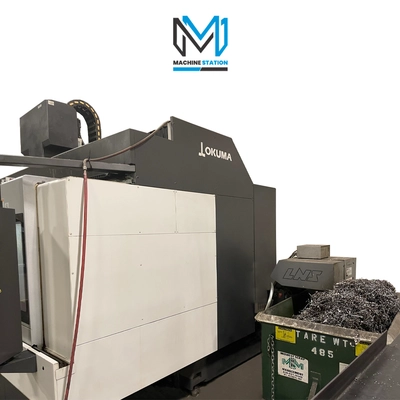

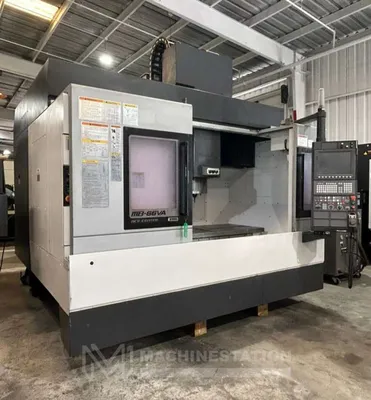

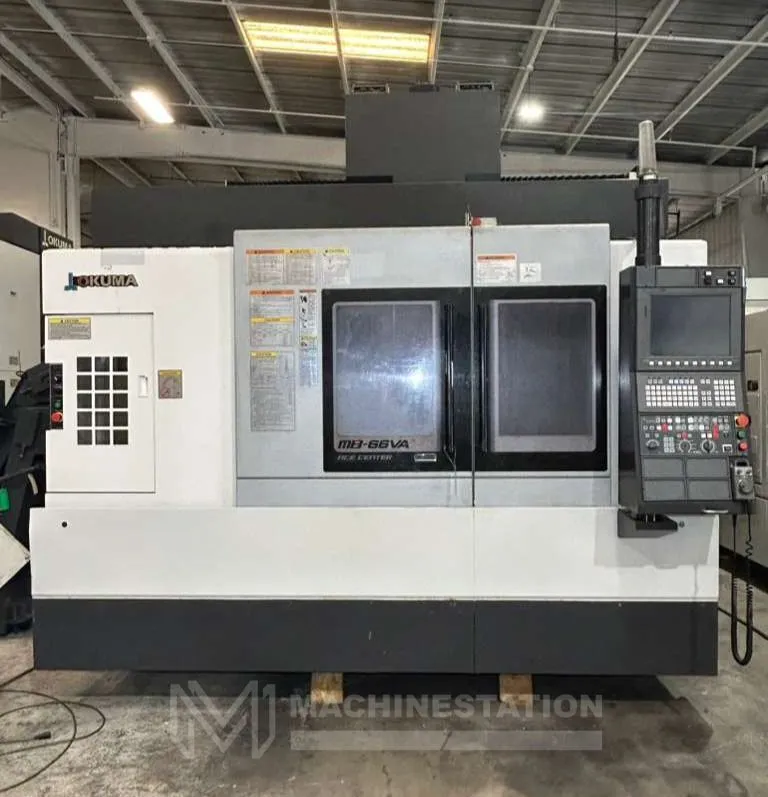

USED 2013 OKUMA MB-66VA

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Feature:

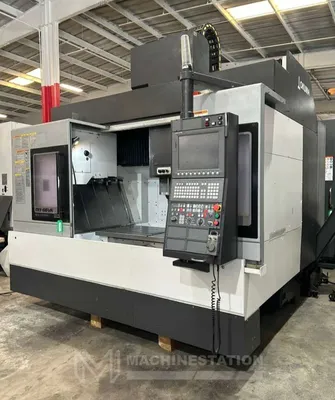

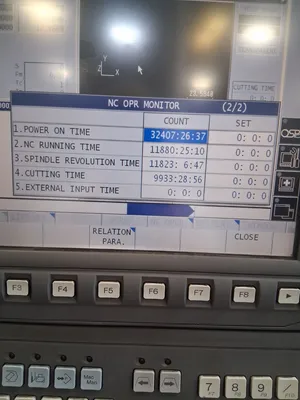

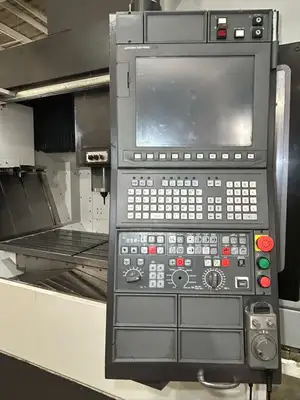

Okuma OSP-P300M CNC Control
Box Way construction
PCMCIA Card Slot
MPG Control
Rigid Tapping

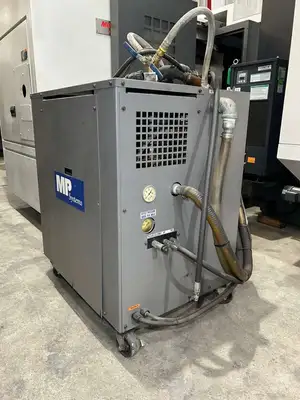

Coolant Tank

Travels:
X-Axis: 59.06″
Y-Axis: 25.98″
Z-Axis: 25.98″
X, Y Axis Rapid Traverse rates: 1575 IPM
Z Axis Rapid Traverse rates: 1260 IPM
Cutting Feedrate: 1260 IPM
Spindle Nose to Table (Min.- Max.): 5.91″ – 31.89″

Table:
Length: 60.24″
Width: 25.98″
T-Slot no. & Width: 5 X 0.7″
Max Weight on Table: 3300 lbs

Spindle:
Taper Size: CAT-40 Big Plus
Speed Range: 15,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.81″
Max Tool Diameter: 4.92″

General:
Air Required: 90 psi, 4 scfm

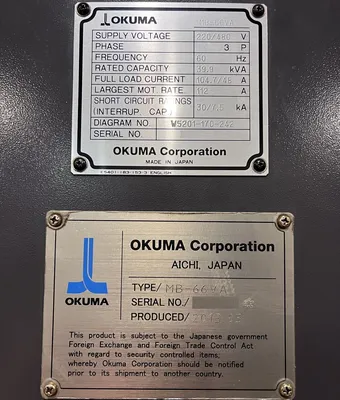

Power: 280-480v / 39.9 kva / 3-Phase
Overall Dimensions: 119″ x 131″ x 130″ High
Weight: 24,640 lbs. Approx.
