| Swing | 900 mm | 35.433" |
| Machining Length | 80" | 2,032 mm |
| Chuck Size | 31" | 787.4 mm |
| Bar Capacity | 14" | 355.6 mm |
| Power | 45 kW | 60.3 hp |
| Max RPM | 1,120 RPM | 1,120 RPM |
| Turning Dia | 20.9" | 530.86 mm |
| Tailstock | Yes | Yes |
| Control | CNC | CNC |
Specifications (Subject to buyer verification):
Maximum swing 35.40
Swing over Cross Slide 20.9″
Distance Between Centers 80″
Drive Power at 60 %/100 % Duty Cycle 60/49.6 HP
Spindle Bore 14"
Spindle Speed 1 ~ 700 RPM
Tailstock Quill Taper MT 6
Equipped with (subject to buyer specification):

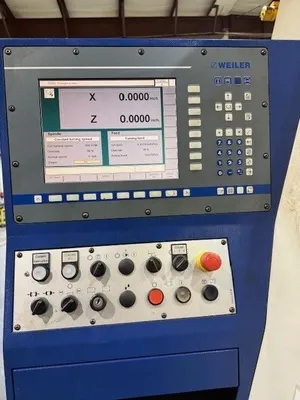

Weiler Control (Siemens)

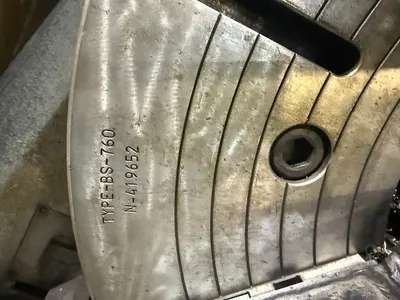

31" Chuck with 14" Hole
14" Spindle Bore
Chip Conveyor
Threading Cycle

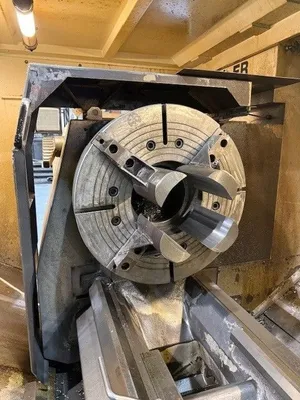

Front and Rear 4-Jaw Chucks
