| Swing | 35.4" | 899.16 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 27.5" | 698.5 mm |
| Bar Capacity | 10.3" | 261.62 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 700 RPM | 700 RPM |
| Turning Dia | 35.4" | 899.16 mm |
| Tailstock | Yes | Yes |
| Control | CNC | CNC |
Specifications (Subject to buyer verification):
Maximum Swing: 35.40”
Swing over cross slide: 20.9”
Distance between centers: 120”
Spindle Bore: 10.3”
Spindle Speed: 1~700 RPM
Drive Power at 60%/100% duty cycle: 60/49.6 HP
Tailstock Quill Taper MT6
Equipped with (Subject to buyer verification):

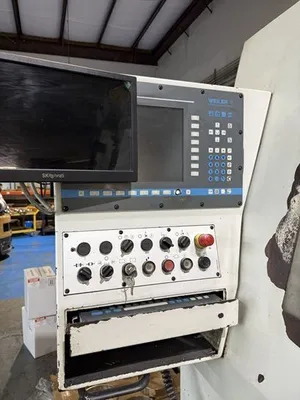

Weiler control (Siemens)
Chip Conveyor

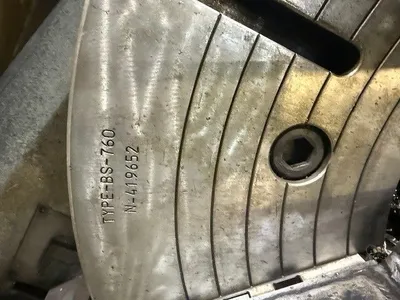

31” Chuck with 10” Bore
Threading Cycle
Front and Rear Chucks
Steadyrest
