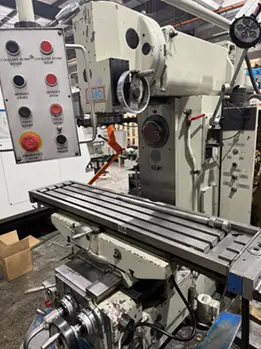

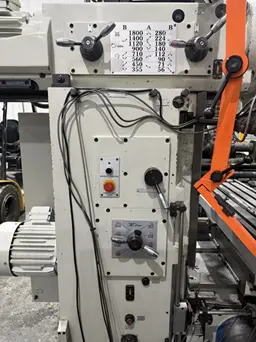

USED 1996 JAFO FWF 32J2

Specifications (subject to buyer verification):
220 volt 12 amp 3 phase
feed in the X/Y/Z axis (manual, ISO 50): 850/430/255 mm
feed in the X/Y/Z axis (mechanical, ISO 50): 850/420/245 mm
number of feed rate adjustment stages: 21
feed rate in the X/Y/Z axis: 1120/450/900 mm/min
rapid traverse in the X/Y/Z axis: 3200/1250/2500 mm/min
travel in X/Y/Z axis per one handwheel revolution: 6/3/6 mm
work table surface (L x W): 1300 x 320 mm
working table torsion angle: ± 45°
T-slot number: 5
T-slot width: 18 mm
T-slot spacing: 63 mm
head rotation angle: ± 45°
vertical spindle rotational speed range: 56-1800 rpm
horizontal spindle rotational speed range: 56-1800 rpm
number of vertical spindle speed adjustment stages: 16
number of horizontal spindle speed adjustment stages: 16
vertical spindle taper: ISO 50
horizontal spindle taper: ISO 50
vertical spindle diameter in front bearing (ISO 50): 80 mm
horizontal spindle diameter in front bearing (ISO 50): 90 mm
distance from vertical spindle face to work table surface (ISO 50): 30-535 mm
distance from horizontal spindle axis to work table surface: 0-430 mm
maximum distance from horizontal spindle face to eyepiece face (ISO 50): 617 mm
distance from horizontal spindle axis to beam guide: 152 mm
distance from vertical spindle axis to vertical guides: 105-940 mm
maximum distance from vertical guide to eyepiece face: 660 mm
minimum distance from work table edge to vertical guide: 30 mm
weight: 2800 kg
