USED AMADA VIPROS 345

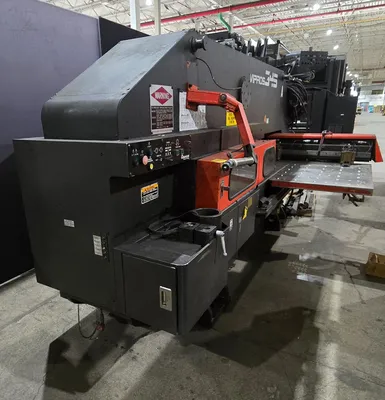

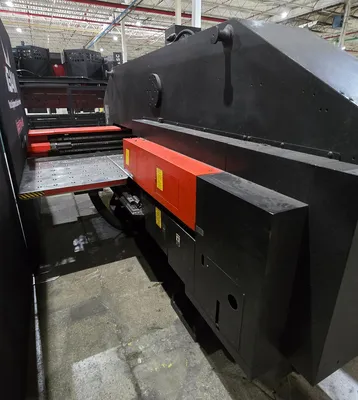

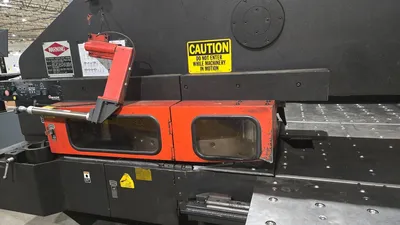

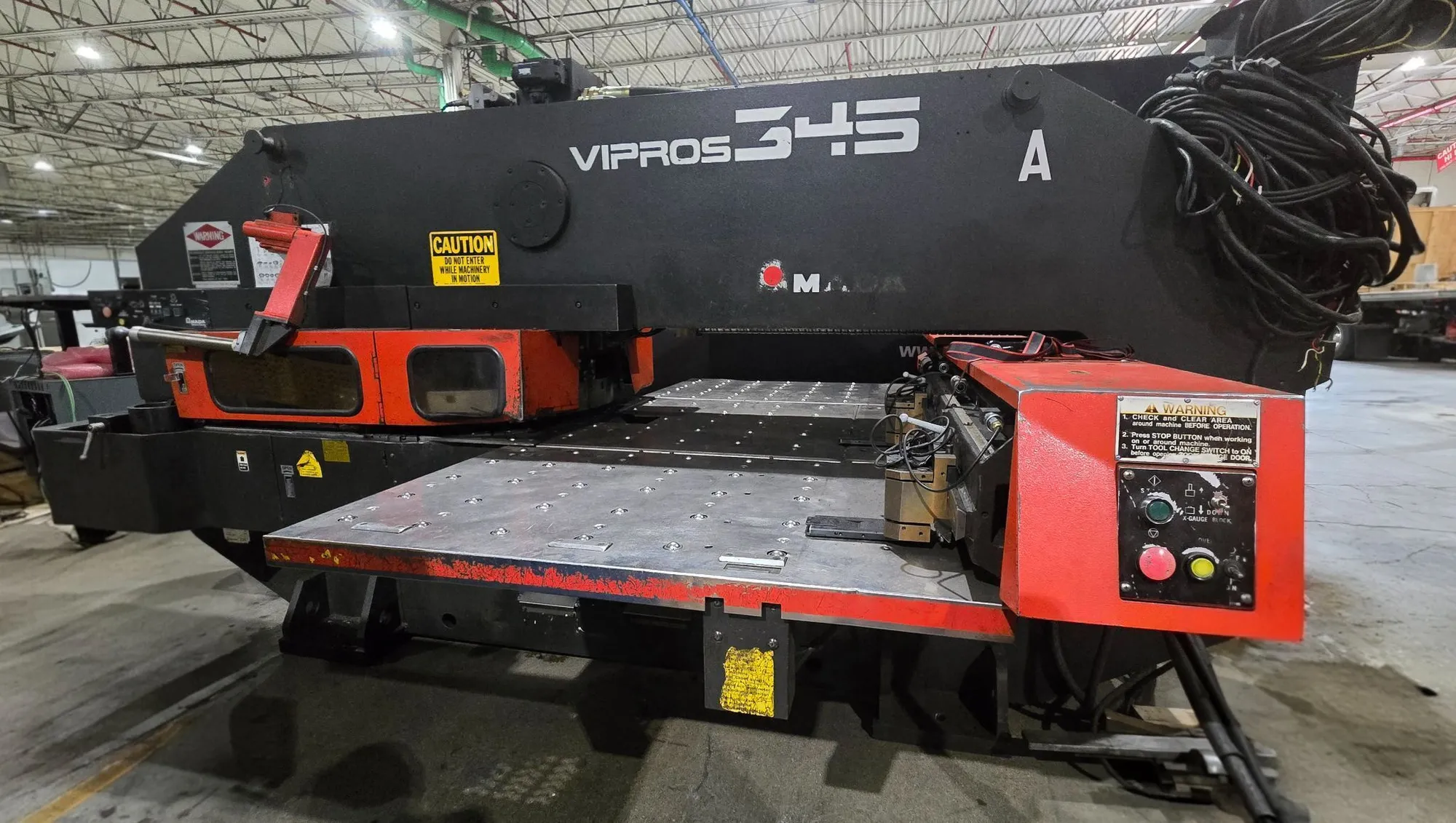

This listing is for a USED Amada VIPROS 345 CNC turret punch press. It handles automated sheet metal punching and forming with servo-controlled axes and turret tooling, paired with an AMADAN-OP-C control system and a Yuken hydraulic unit for press actuation and system pressure generation.

Manufacturer: Amada
Series: VIPROS
Model: 345
Additional Model ID: VIPROS 304050Q
Condition: USED
YOM: n/a

Equipment Type: CNC Turret Punch Press

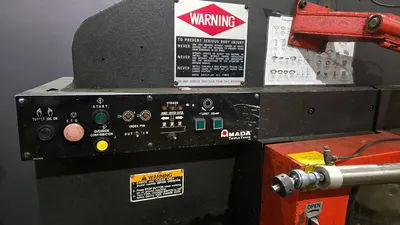

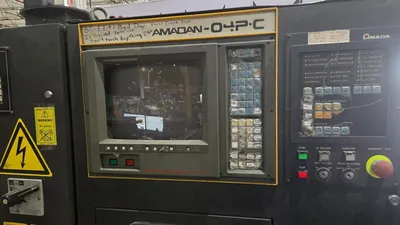

Control System: AMADAN-OP-C

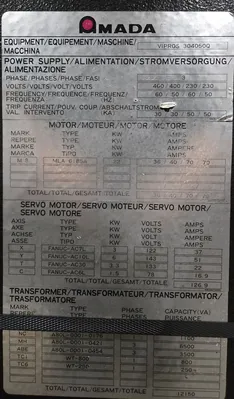

Power Supply:
Phase: 3
Voltage: 460 / 400 / 230 / 230 V
Frequency: 60 / 50 / 60 / 50 Hz

Interrupt Current Rating:
30 kA / 30 kA / 50 kA / 50 kA

Main Motor:
Designation: M3
Current (FLA): 36 / 40 / 70 / 70 A

Servo Motors:
X Axis: FANUC AC Servo, 3 kW, 122 V, 37 A
Y Axis: FANUC AC Servo, 6 kW, 143 V, 51 A
T Axis: FANUC AC Servo, 3.3 kW, 133 V, 22 A
C Axis: FANUC AC Servo, 1.5 kW, 78 V, 16.9 A

Total Servo Current: 126.9 A

Transformer Ratings:
NC: 1100 VA
MH: 6500 VA
ABE: 3500 VA
TC1: 800 VA
TC6: 250 VA

Total Transformer Capacity: 12150 VA

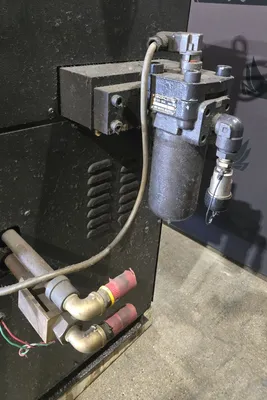

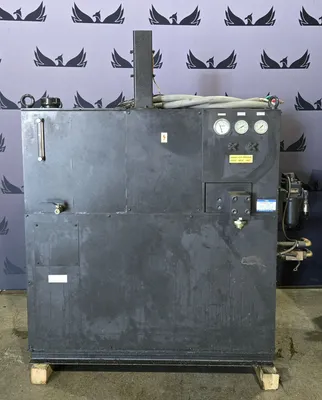

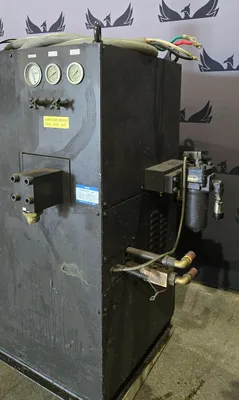

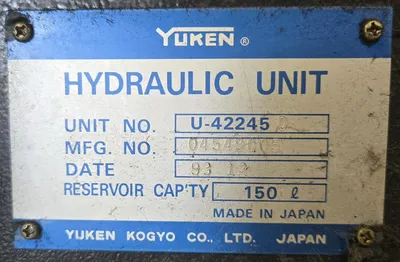

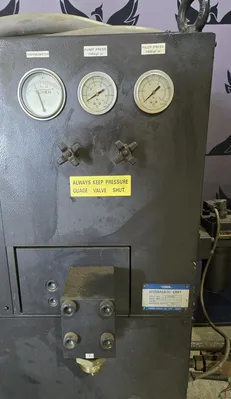

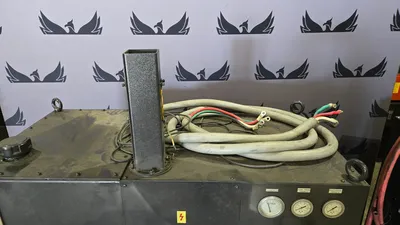

Hydraulic Unit:
Manufacturer: Yuken Kogyo Co., Ltd.
Unit Number: U-42245
Manufacturing Number: 0454005
Date: 1993-12
Reservoir Capacity: 150 L

Included Components:

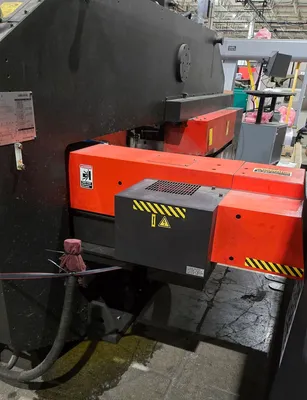

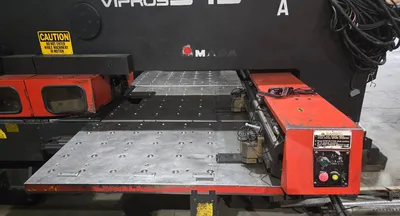

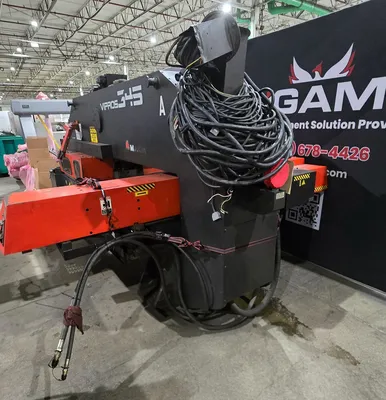

Main Punch Press Unit

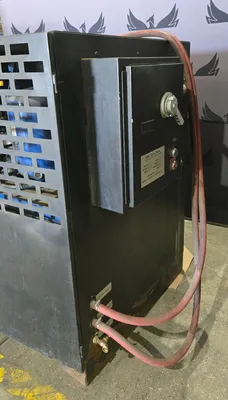

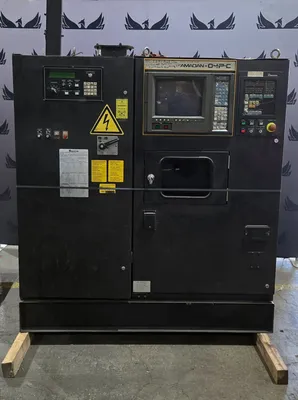

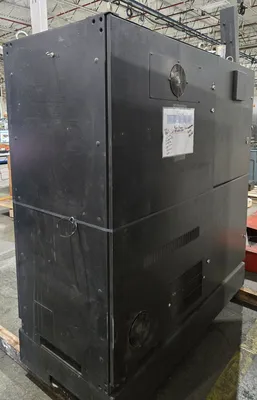

Control Cabinet

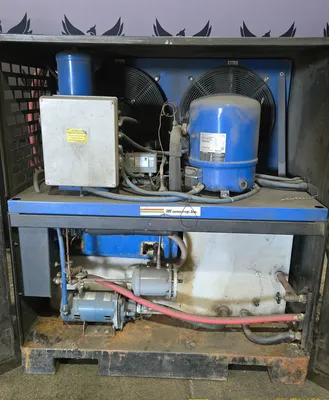

Hydraulic Power Unit (Yuken)

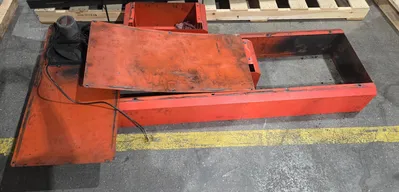

Support Frame / Handling Components

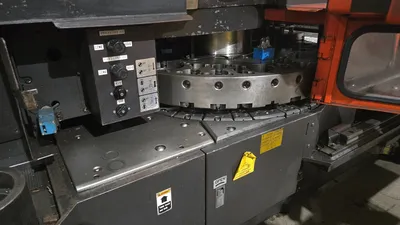

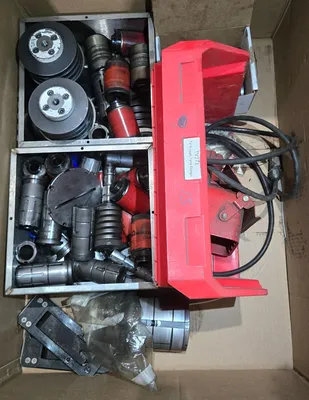

Assorted Turret Tooling and Punch Holders (quantity not specified)
